Transfer Control Solenoid: Installation: Installation

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL TRANSFER CONTROL SOLENOID
    1. Install the transfer control solenoid and solenoid lock plate to the transfer upper valve body with the bolt.

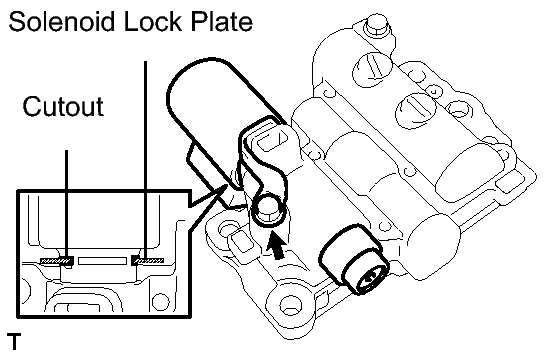

      Fig 1: Installing Solenoid Lock Plate
      GTY142040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 6.4 N*m ( 65 kgf*cm, 57 in.*lbf)

      HINT:

      Install the solenoid lock plate into the cutout on the transfer control solenoid.

  2. INSTALL TRANSFER VALVE BODY ASSEMBLY  See step  2
  3. INSTALL TRANSFER OIL PAN  See step  2
  4. INSTALL TRANSFER DYNAMIC DAMPER  See step  3
  5. INSTALL ENGINE REAR MOUNTING MEMBER  See step  4
  6. INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR  . Refer to INSTALLATION - Step 3
  7. INSTALL FRONT EXHAUST PIPE ASSEMBLY  . Refer to INSTALLATION - Step 4
  8. INSTALL HEATED OXYGEN SENSOR  . Refer to INSTALLATION - Step 6
  9. INSTALL FRONT CENTER FLOOR BRACE  . Refer to INSTALLATION - Step 7
  10. INSTALL REAR NO. 1 FLOOR PANEL BRACE  . Refer to INSTALLATION - Step 8
  11. ADD AUTOMATIC TRANSMISSION FLUID  . Refer to INSTALLATION - Step 28
  12. CHECK FOR EXHAUST GAS LEAKS
