Television Camera: Installation: Installation

WARNING: This page is about a different car, the 2009 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL TELEVISION CAMERA ASSEMBLY
1. Engage the 2 claws to temporarily install the television camera assembly to the luggage compartment as shown in the illustration.

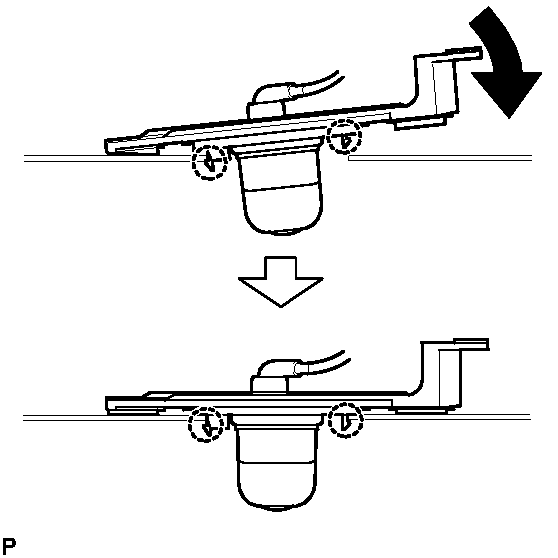

  Fig 1: Installing Television Camera Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the television camera assembly with the 2 screws.

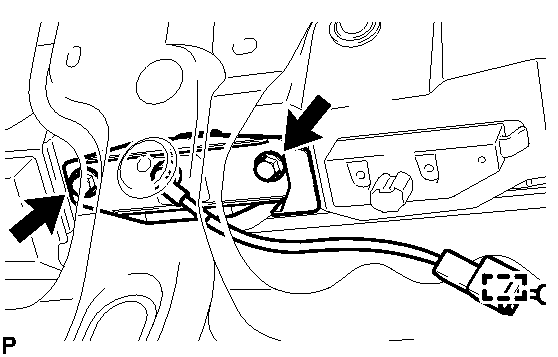

  Fig 2: Locating Camera Connector Clamp Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the television camera connector.
4. Engage the television camera connector clamp.
INSTALL LUGGAGE COMPARTMENT DOOR REINFORCEMENT
1. Temporarily install the luggage compartment door reinforcement with the clip.

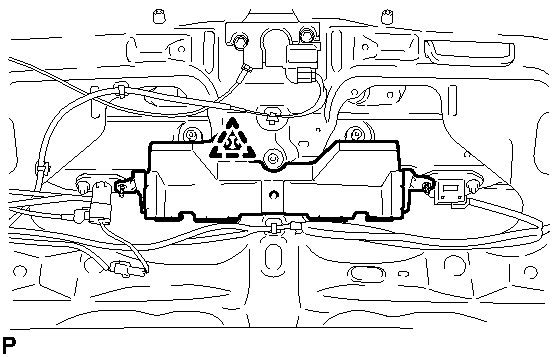

  Fig 3: Identifying Luggage Compartment Door Reinforcement Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the luggage compartment door reinforcement with the 2 nuts.

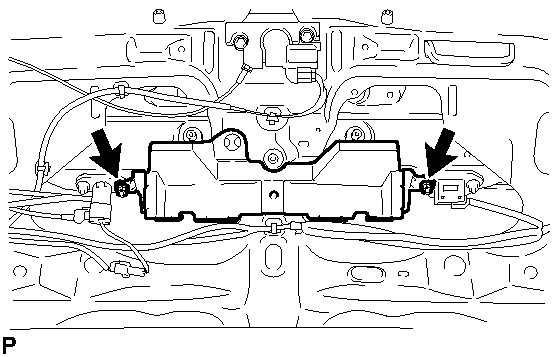

  Fig 4: Installing Luggage Compartment Door Reinforcement With Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 5.5 N*m ( 56 kgf*cm, 49 in.*lbf)
INSTALL LUGGAGE COMPARTMENT DOOR COVER . Refer to INSTALLATION - Step 9
INSTALL LUGGAGE COMPARTMENT DOOR INSIDE HANDLE . Refer to INSTALLATION - Step 5
INSTALL LUGGAGE LOCK CONTROL CABLE PLATE . Refer to INSTALLATION - Step 6
INSTALL LUGGAGE COMPARTMENT DOOR ASSIST GRIP . Refer to INSTALLATION - Step 12
