Pattern Select Switch: Removal: Removal

WARNING: This page is about a different car, the 2009 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT DOOR SCUFF PLATE LH  . Refer to REMOVAL - Step 37
  2. REMOVE FRONT DOOR OPENING TRIM COVER LH  . Refer to REMOVAL - Step 39
  3. REMOVE SIDE INSTRUMENT PANEL LH  . Refer to REMOVAL - Step 24
  4. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY  . Refer to REMOVAL - Step 26
  5. REMOVE NO. 1 PATTERN SELECT SWITCH ASSEMBLY
    1. Disengage the 4 claws to remove the switch base from the lower instrument panel finish panel.

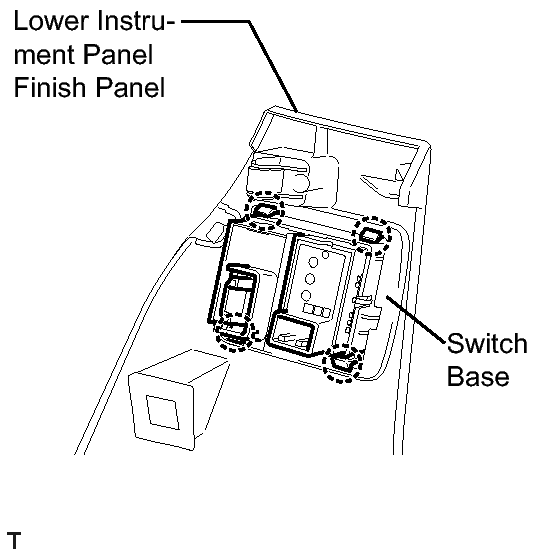

      Fig 1: Identifying Switch Base From Lower Instrument Panel Finish Panel
      GTY124695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws to remove the pattern select switch from the switch base.

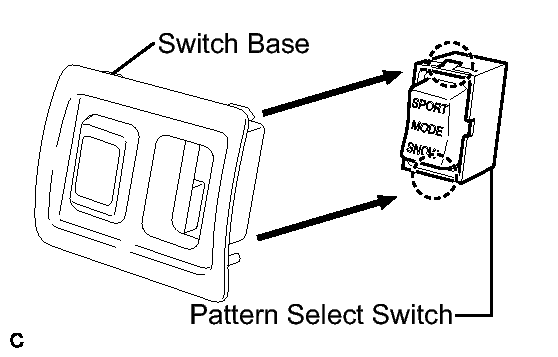

      Fig 2: Identifying Pattern Select Switch From Switch Base
      GTY137160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
