Section 31 (Combination Meter / Clock (Service Information)): Clock: Installation: Installation

WARNING: This page is about a different car, the 2009 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL CLOCK ASSEMBLY (w/o Navigation System)

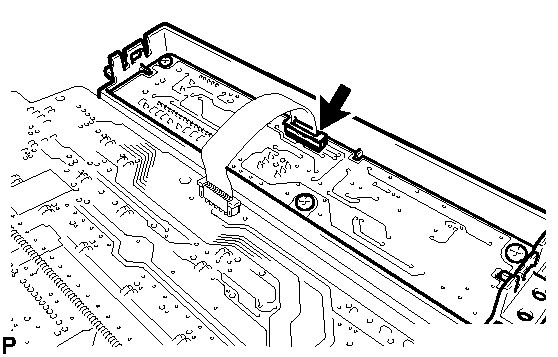

    1. Connect the connector.
      Fig 1: Connecting Connector
      GTY133364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

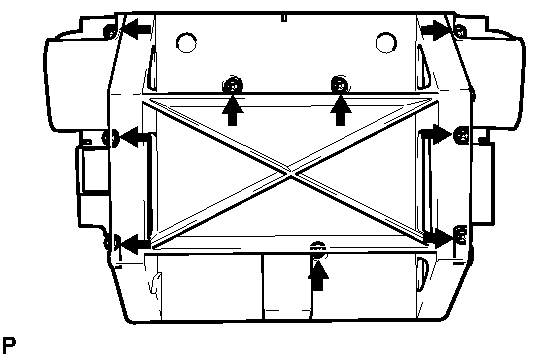

    2. Install the cover with the 9 screws.
      Fig 2: Installing Cover With Screws
      GTY122445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

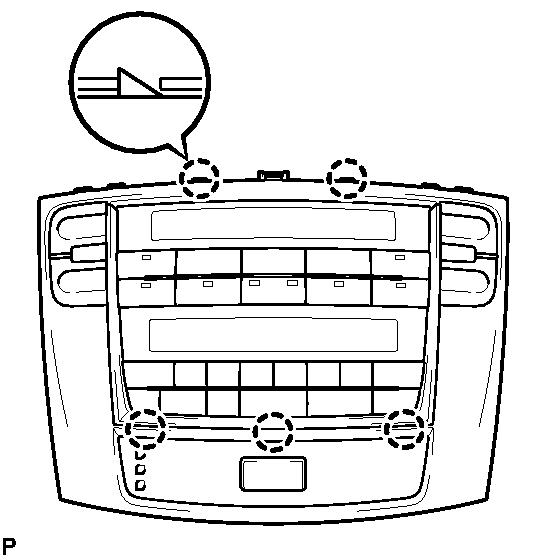

    3. Engage the 5 claws.
      Fig 3: Engaging Claws
      GTY137899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

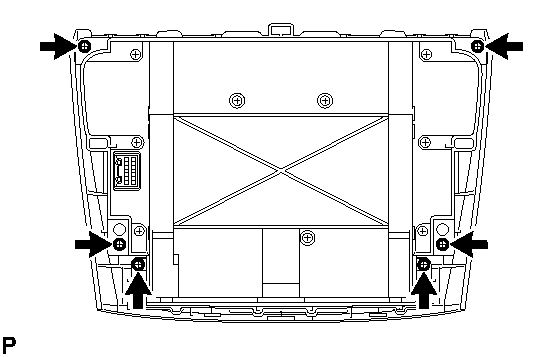

    4. Install the panel with the 6 screws.
      Fig 4: Identifying Center Instrument Cluster Finish Panel Screws
      GTY131411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL RADIO RECEIVER ASSEMBLY (w/o Navigation System)  . Refer to INSTALLATION - Step 1
  3. INSTALL NO. 2 RADIO BRACKET (w/o Navigation System)  . Refer to INSTALLATION - Step 2
  4. INSTALL NO. 1 RADIO BRACKET (w/o Navigation System)  . Refer to INSTALLATION - Step 3
  5. INSTALL INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System)  . Refer to INSTALLATION - Step 4
  6. INSTALL CLOCK ASSEMBLY (w/ Navigation System)

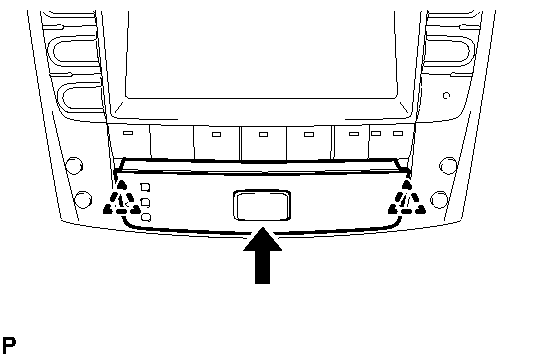

    1. Engage the 2 clips and install the clock assembly.
      Fig 5: Installing Clock Assembly (W/ Navigation System)
      GTY151493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL RADIO RECEIVER ASSEMBLY (w/ Navigation System)  . Refer to INSTALLATION - Step 5
  8. INSTALL NO. 2 RADIO BRACKET (w/ Navigation System)  . Refer to INSTALLATION - Step 6
  9. INSTALL NO. 1 RADIO BRACKET (w/ Navigation System)  . Refer to INSTALLATION - Step 7
  10. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System)  . Refer to INSTALLATION - Step 8
  11. INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL  . Refer to INSTALLATION - Step 36
  12. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY  . Refer to INSTALLATION - Step 37
  13. INSTALL FRONT ASH RECEPTACLE ASSEMBLY  . Refer to INSTALLATION - Step 41
  14. INSTALL CONSOLE PANEL SUB-ASSEMBLY  . Refer to INSTALLATION - Step 42
  15. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH  . Refer to INSTALLATION - Step 43
  16. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH  . Refer to INSTALLATION - Step 44
  17. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY  . Refer to INSTALLATION - Step 45
  18. ADJUST CLOCK
