Cigarette Lighter: Installation: Installation

  1. INSTALL CIGARETTE LIGHTER ASSEMBLY
    1. Install the cigarette lighter socket.

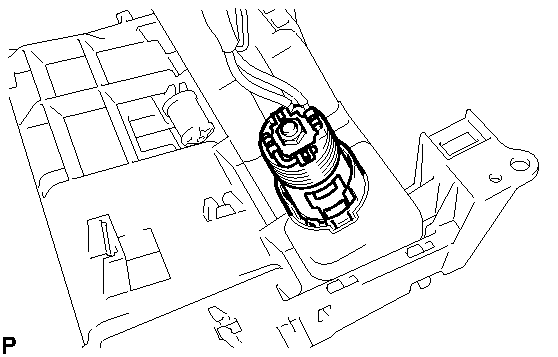

      Fig 1: Identifying Cigarette Lighter Socket
      GTY150666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the cigarette lighter retainer.

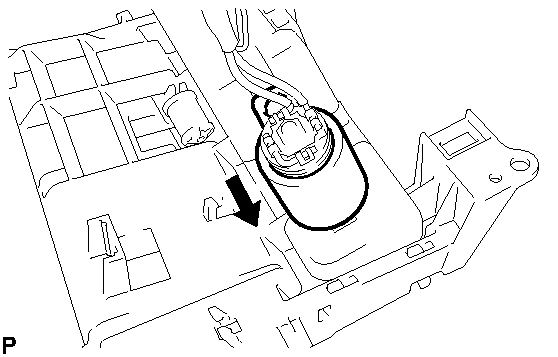

      Fig 2: Identifying Cigarette Lighter Retainer
      GTY132465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Turn the cigarette lighter nut in the direction indicated by the arrow to install it.

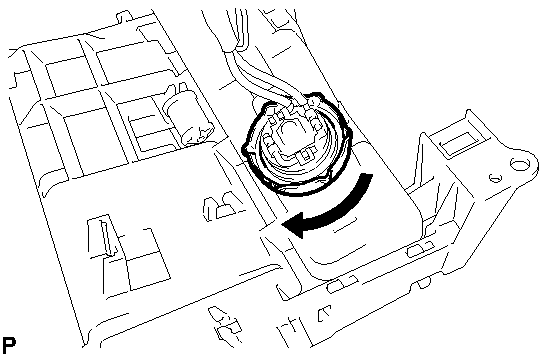

      Fig 3: Identifying Cigarette Lighter Nut
      GTY150839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Engage the clip.

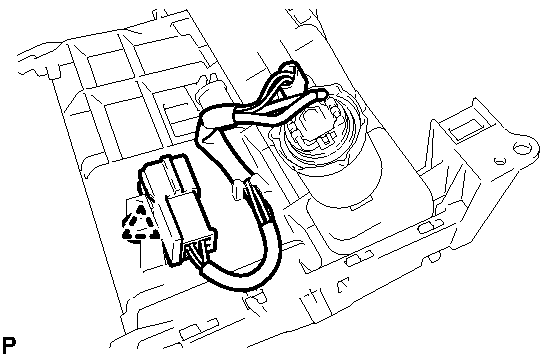

      Fig 4: Identifying Clip
      GTY130268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FRONT ASH RECEPTACLE SUB-ASSEMBLY  . Refer to INSTALLATION - Step 44
  3. INSTALL FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)  . Refer to INSTALLATION - Step 45
  4. INSTALL REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)  . Refer to INSTALLATION - Step 46
  5. INSTALL CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission)  . Refer to INSTALLATION - Step 47
  6. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission)  . Refer to INSTALLATION - Step 48
  7. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission)  . Refer to INSTALLATION - Step 49
  8. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
  9. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
