Section 86 (Navigation (Service Information)): Multi-Display: Components: Illustration

WARNING: This page is about a different car, the 2009 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

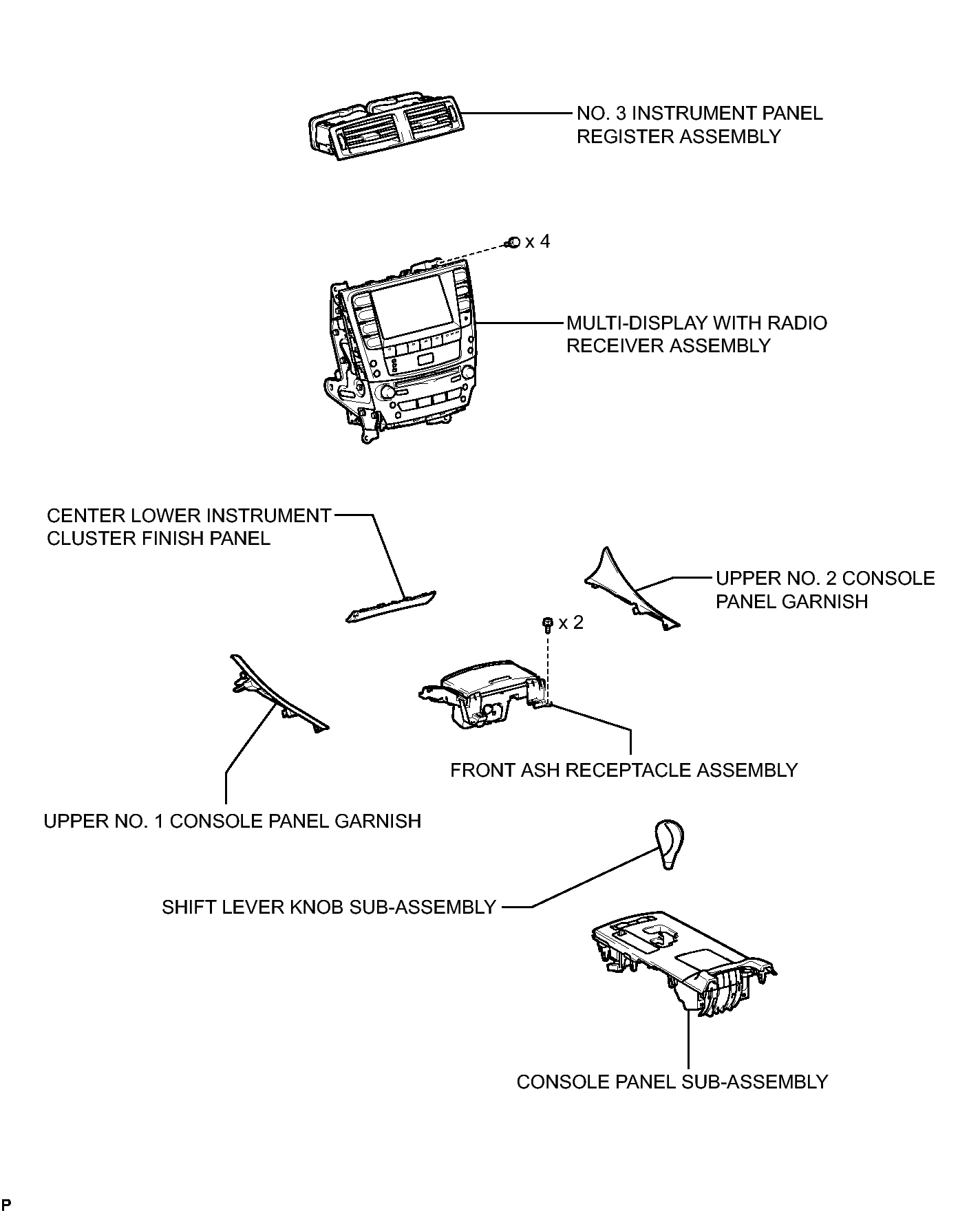

Fig 1: Identifying Multi-Display Replacement Components (1 Of 2)
GTY153813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

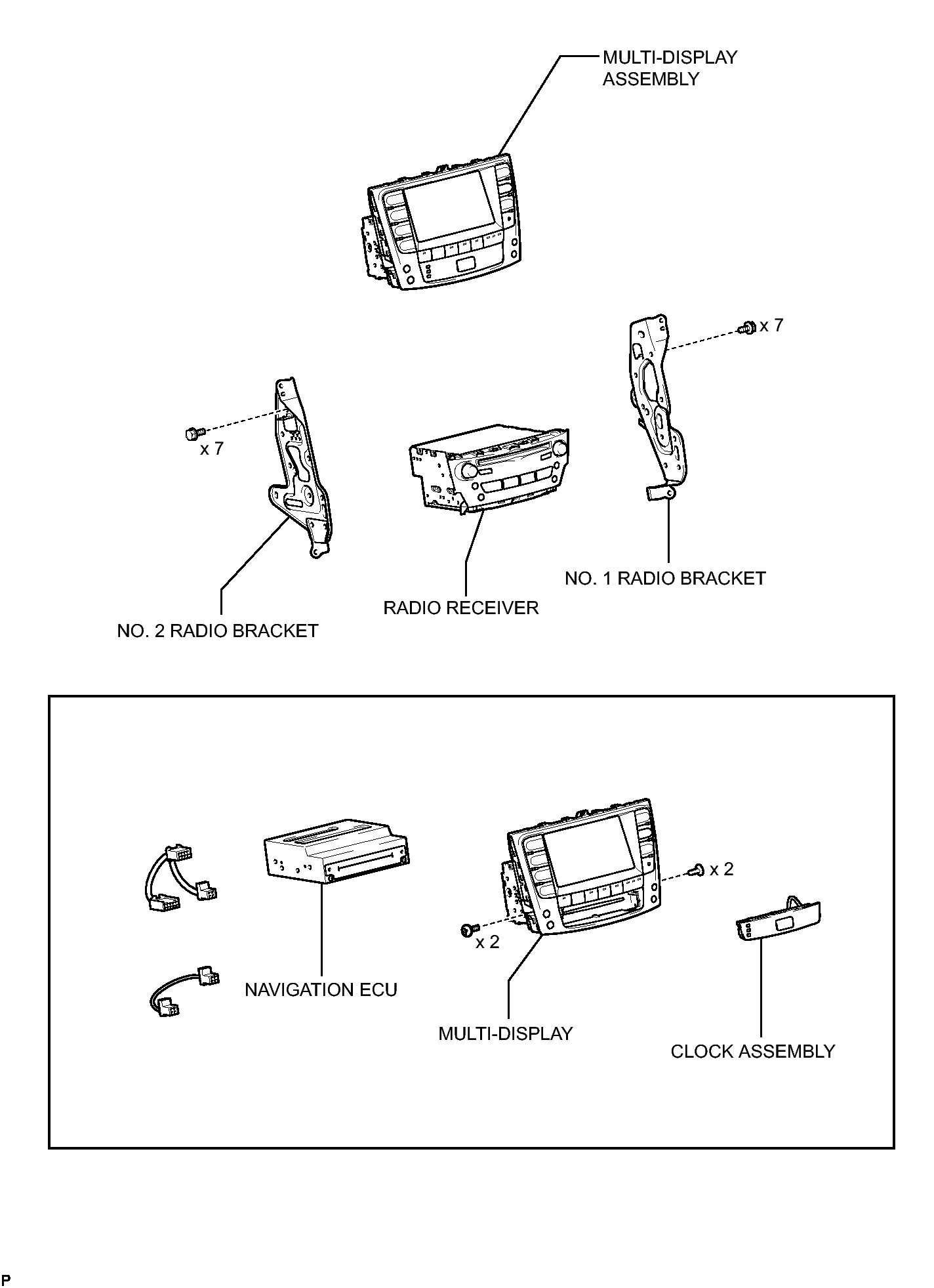

Fig 1: Identifying Multi-Display Replacement Components (2 Of 2)
GTY135497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
