Power Seat for Front Passenger's Seat with Memory: Notes

WARNING: This page is about a different car, the 2008 Lexus IS 350 and 2008 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

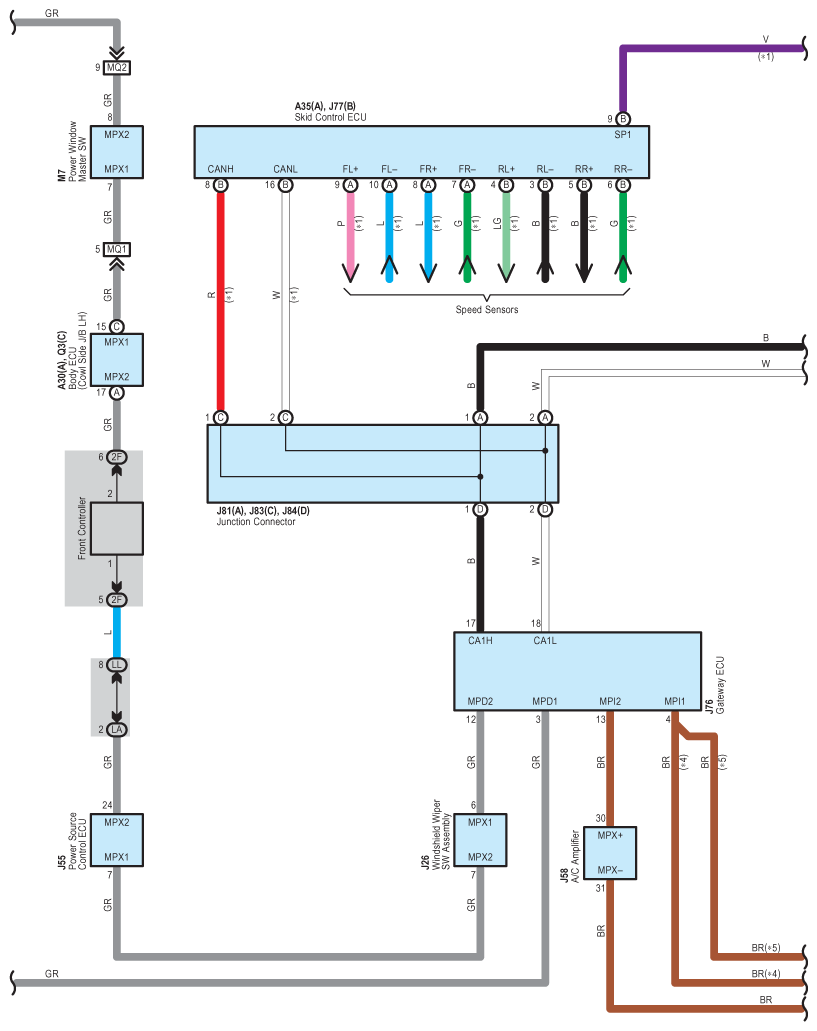

Fig 1: Power Seat For Front Passenger's Seat With Memory - Circuit Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

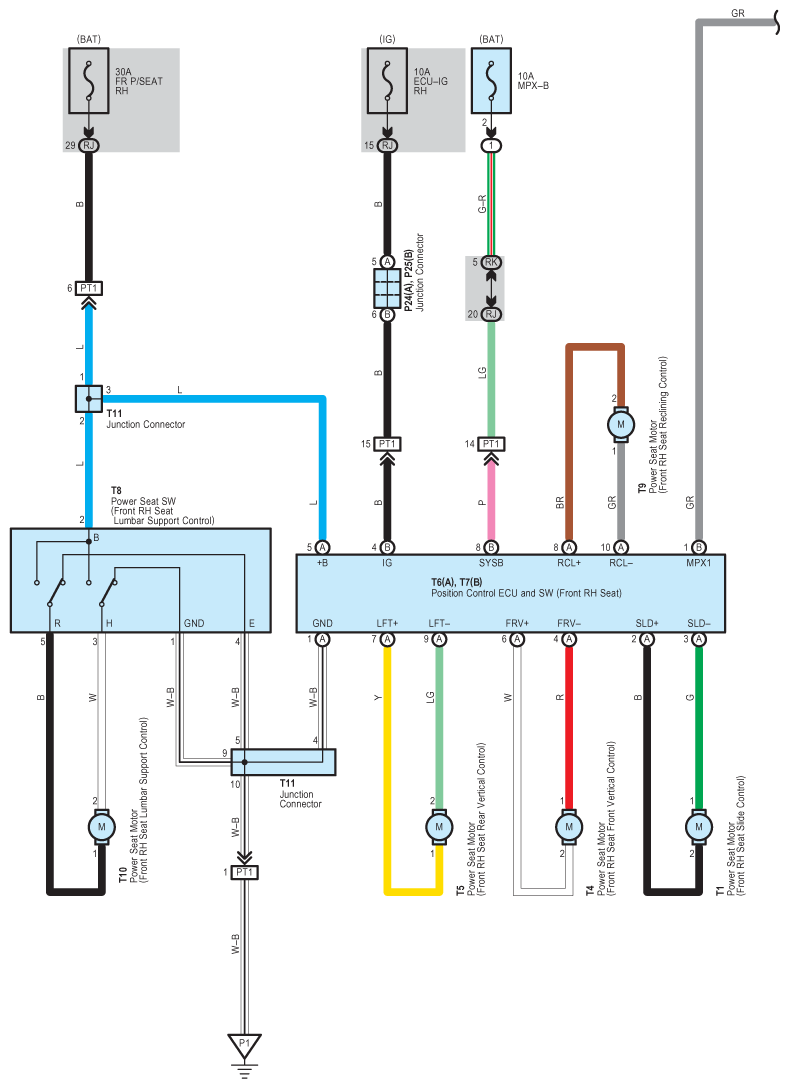

Fig 2: Power Seat For Front Passenger's Seat With Memory - Circuit Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

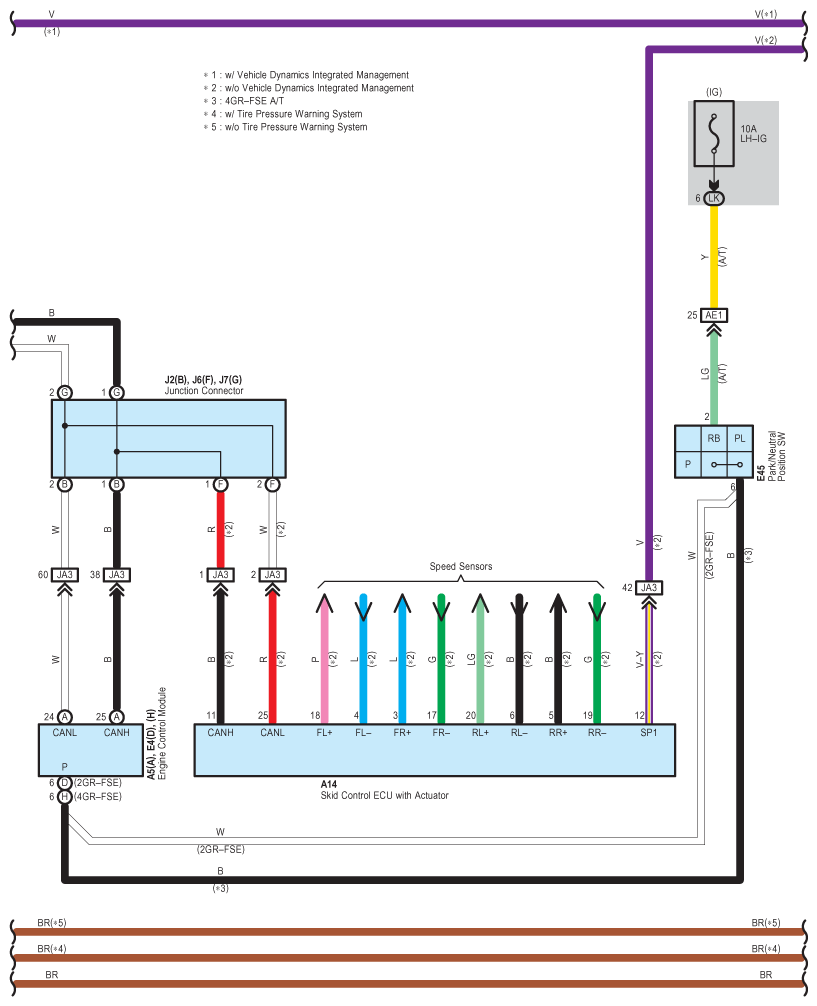

Fig 3: Power Seat For Front Passenger's Seat With Memory - Circuit Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

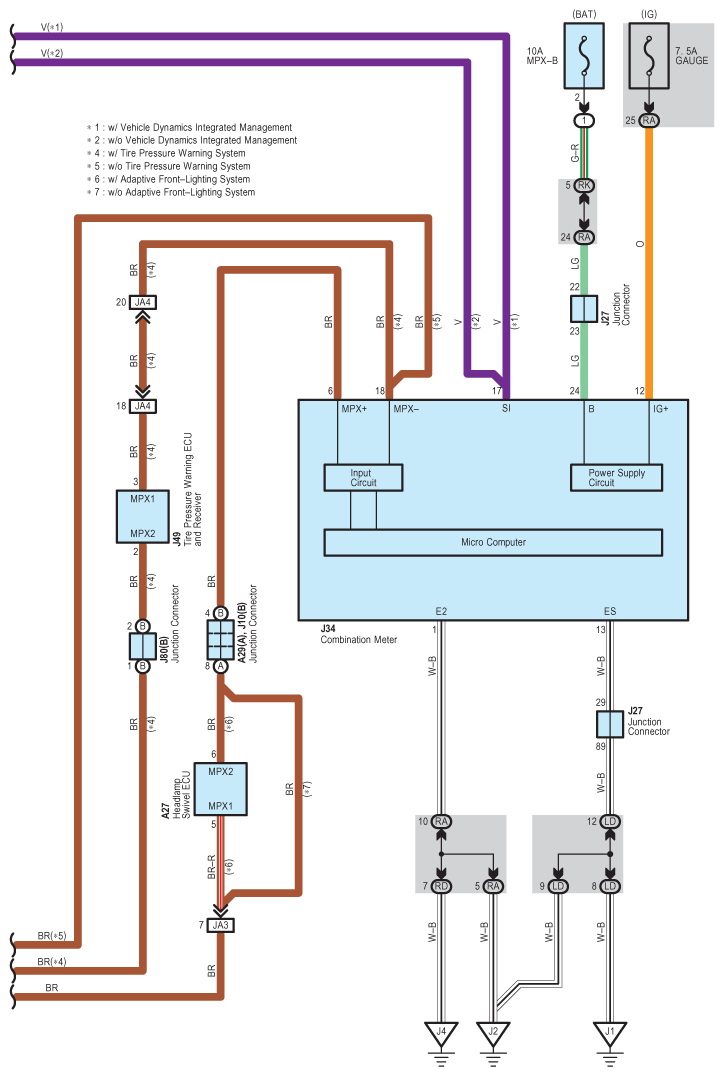

Fig 4: Power Seat For Front Passenger's Seat With Memory - Circuit Diagram (4 Of 5)

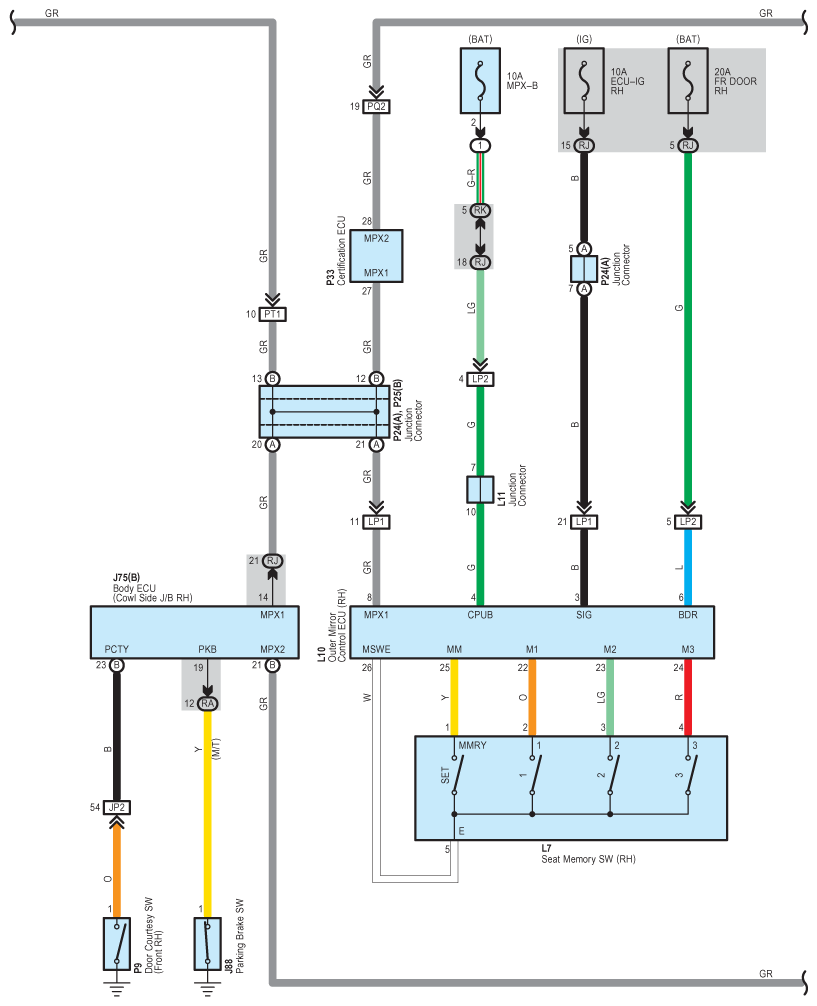

Fig 5: Power Seat For Front Passenger's Seat With Memory - Circuit Diagram (5 Of 5)
