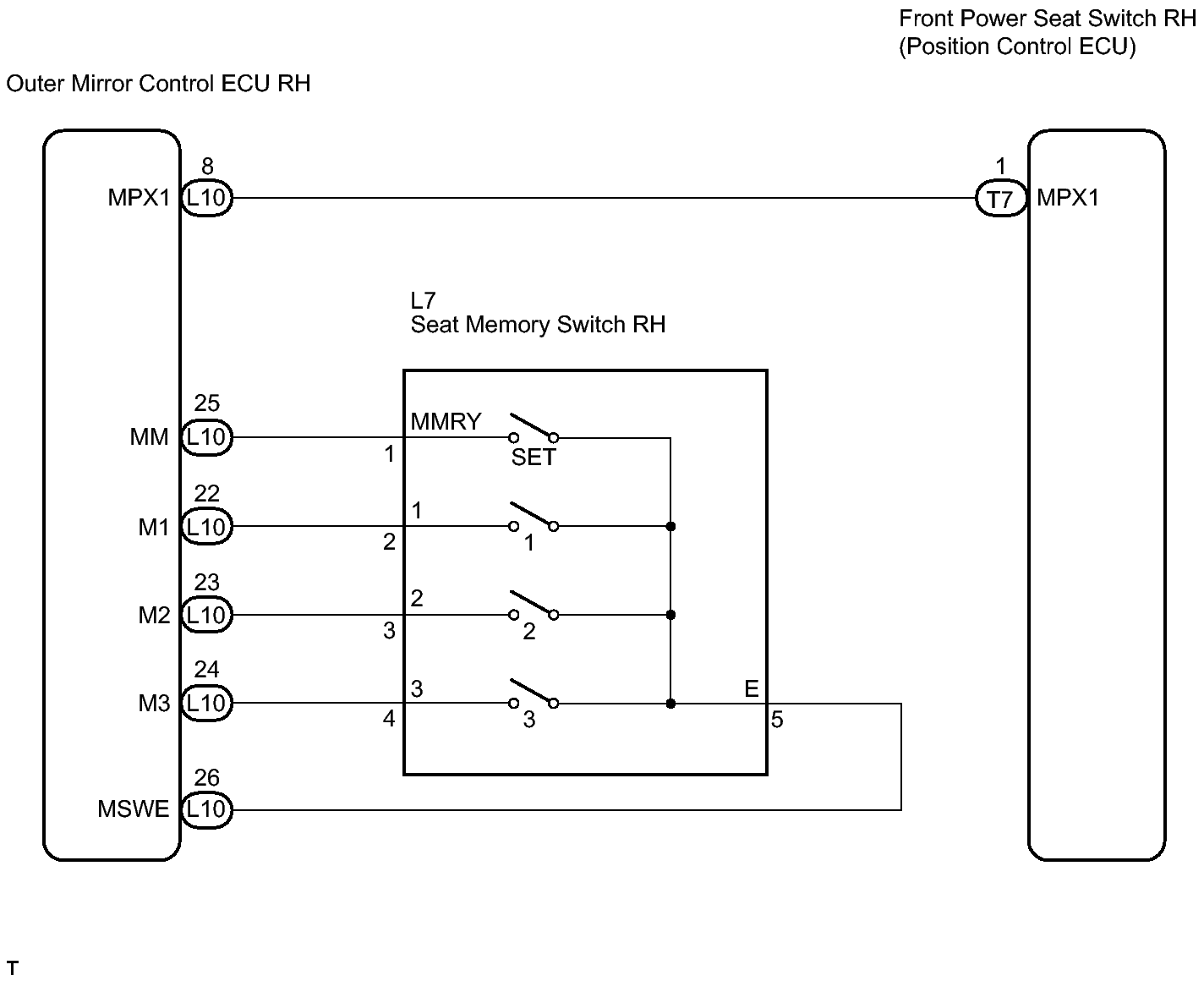

Front Passenger Side Seat Memory Switch Circuit: Wiring Diagram

Fig 1: Identifying Front Passenger Side Seat Memory Switch Circuit Diagram

GTY127452

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
