Front Passenger Side ECU Power Source Circuit: Wiring Diagram

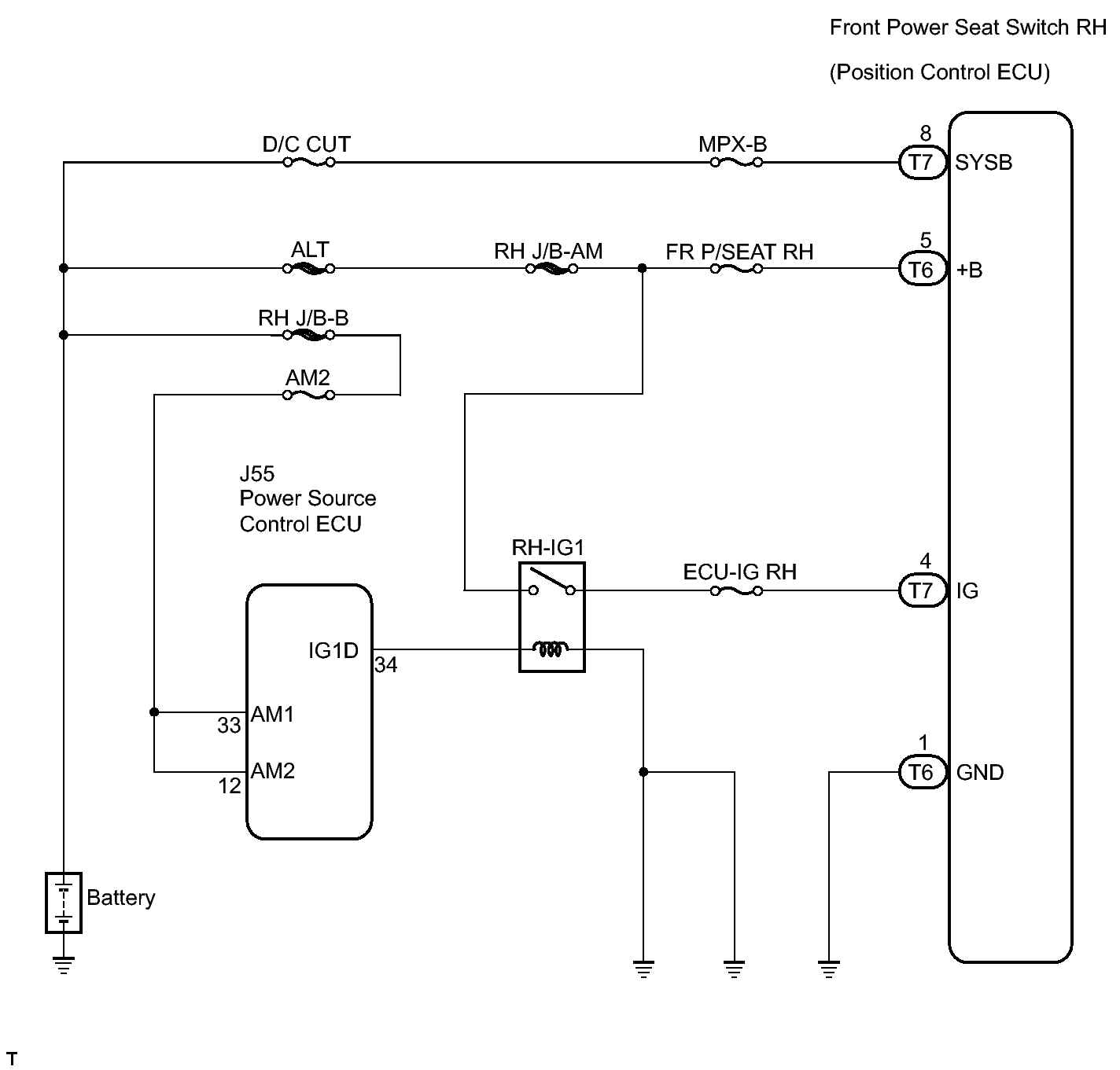

Fig 1: Identifying Front Passenger Side ECU Power Source Circuit Diagram

GTY118816

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
