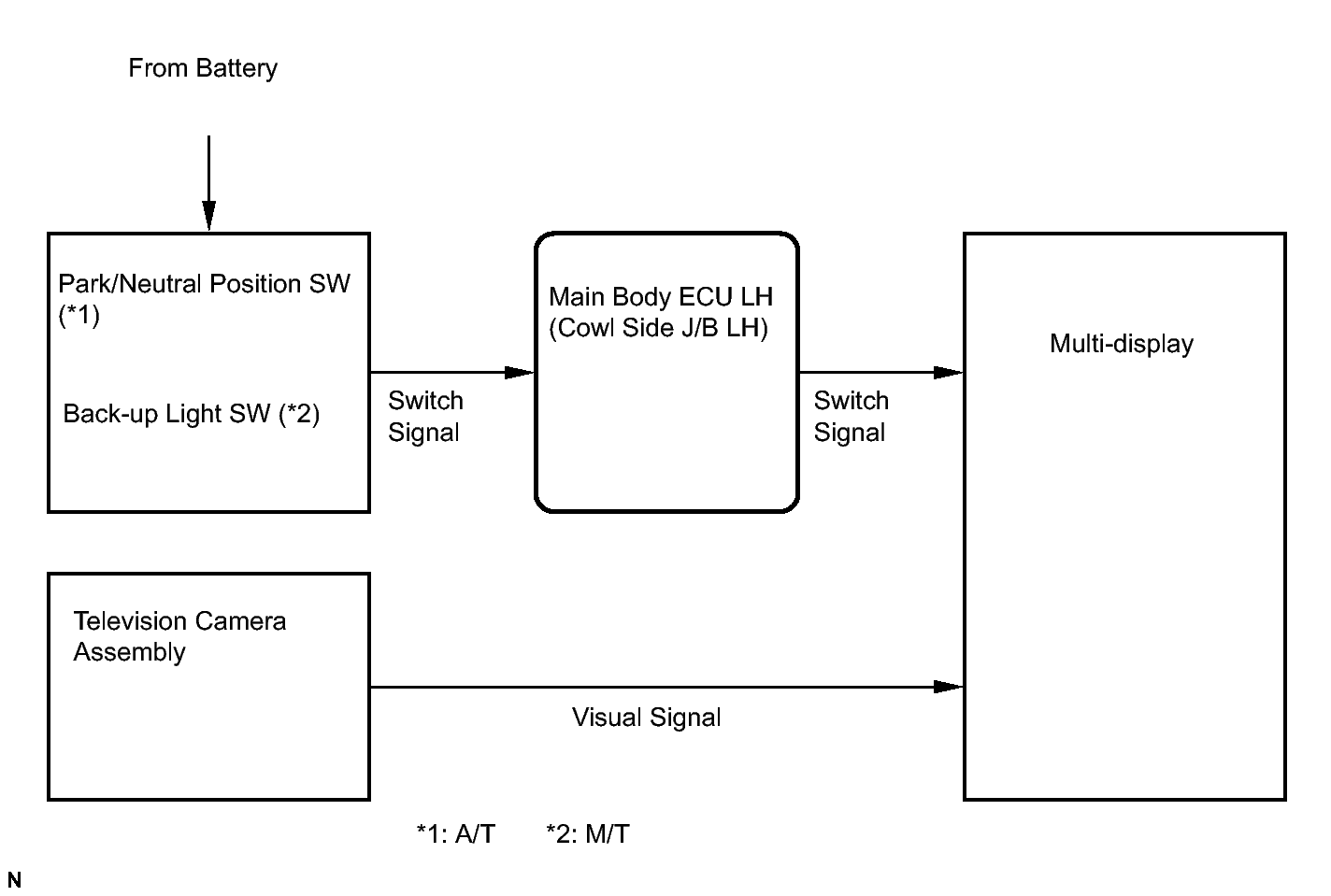

System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002 TRANSMITTING/RECEIVING SIGNALS
Transmitting ECU
(transmitter) |
Receiving ECU |
Signals |
Signal method |
Main Body ECU LH
(Cowl Side J/B LH) |
Multi-display |
Shift R position signal |
Voltage (10 to 14 V) |
