Display Signal Circuit between Navigation ECU and Multi-display: Procedure

1. Disconnect the navigation ECU connector q2 and multi-display connector q1.

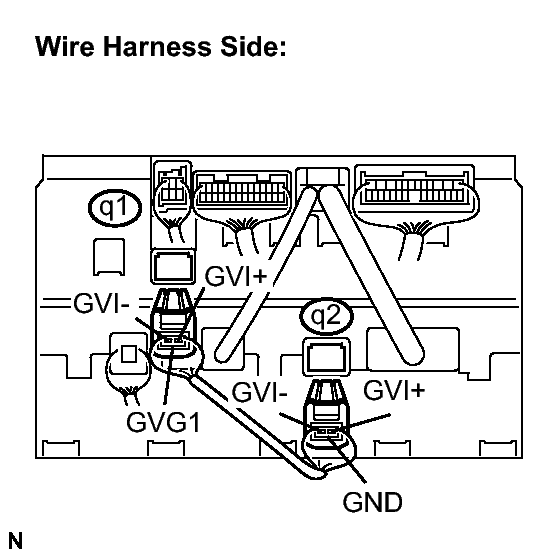

   Fig 1: Identifying Navigation ECU Connector q2 And Multi-display Connector q1

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   GVI+ - GVI+	Always	Below 1 Ω
   GVI- - GVI-	Always	Below 1 Ω
   GVG1 - GND	Always	Below 1 Ω
   GVI+ - Body ground	Always	10 kΩ or higher
   GVI- - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
