Transmission Control Cable: Components: Illustration

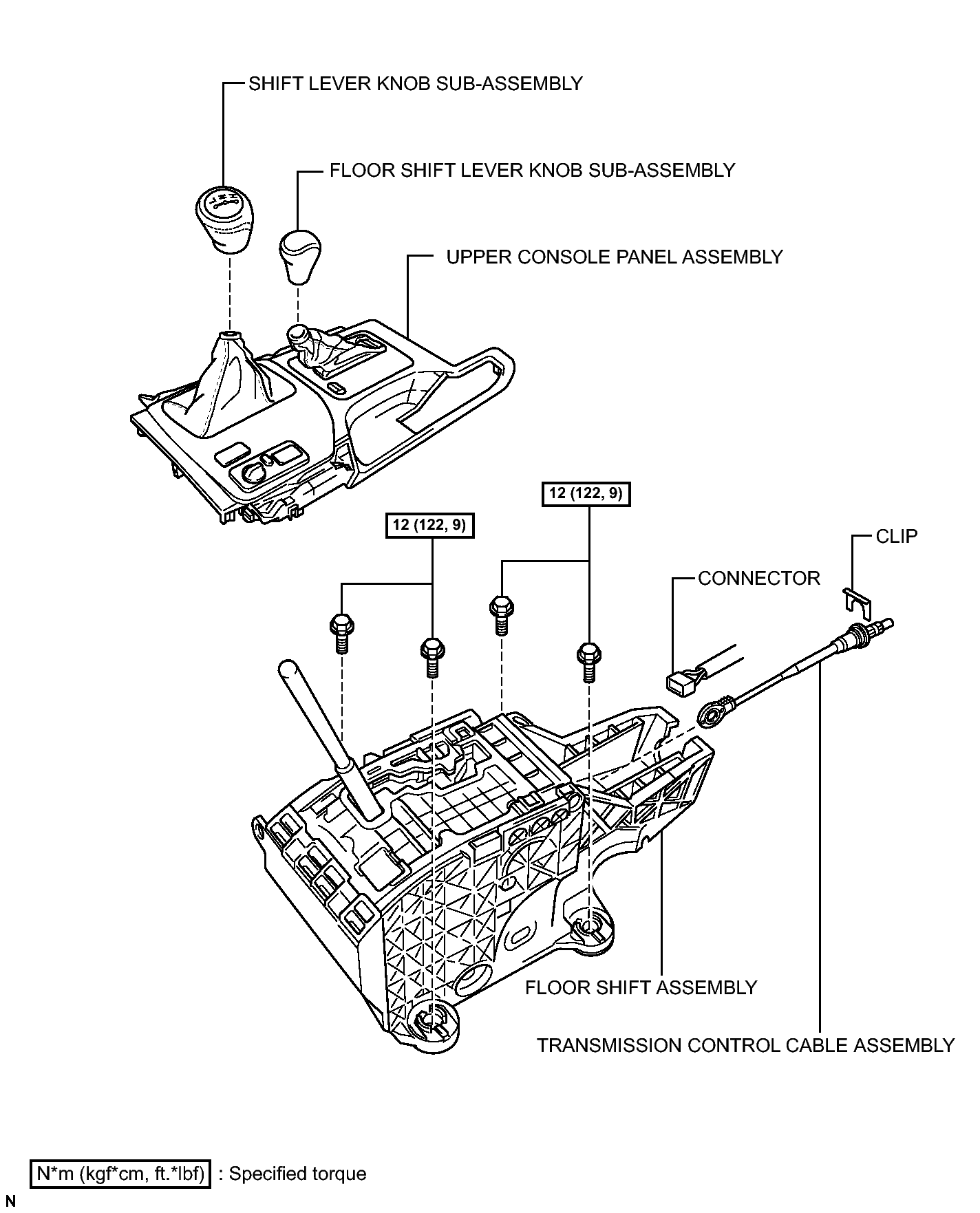

Fig 1: Transmission Control Cable Replacement Components With Torque Specifications

GTY112518

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
