Fuel Tank: Components: Illustration

Fig 1: Identifying Fuel Tank Replacement Components With Torque Specifications (1 Of 2)
GTY145877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

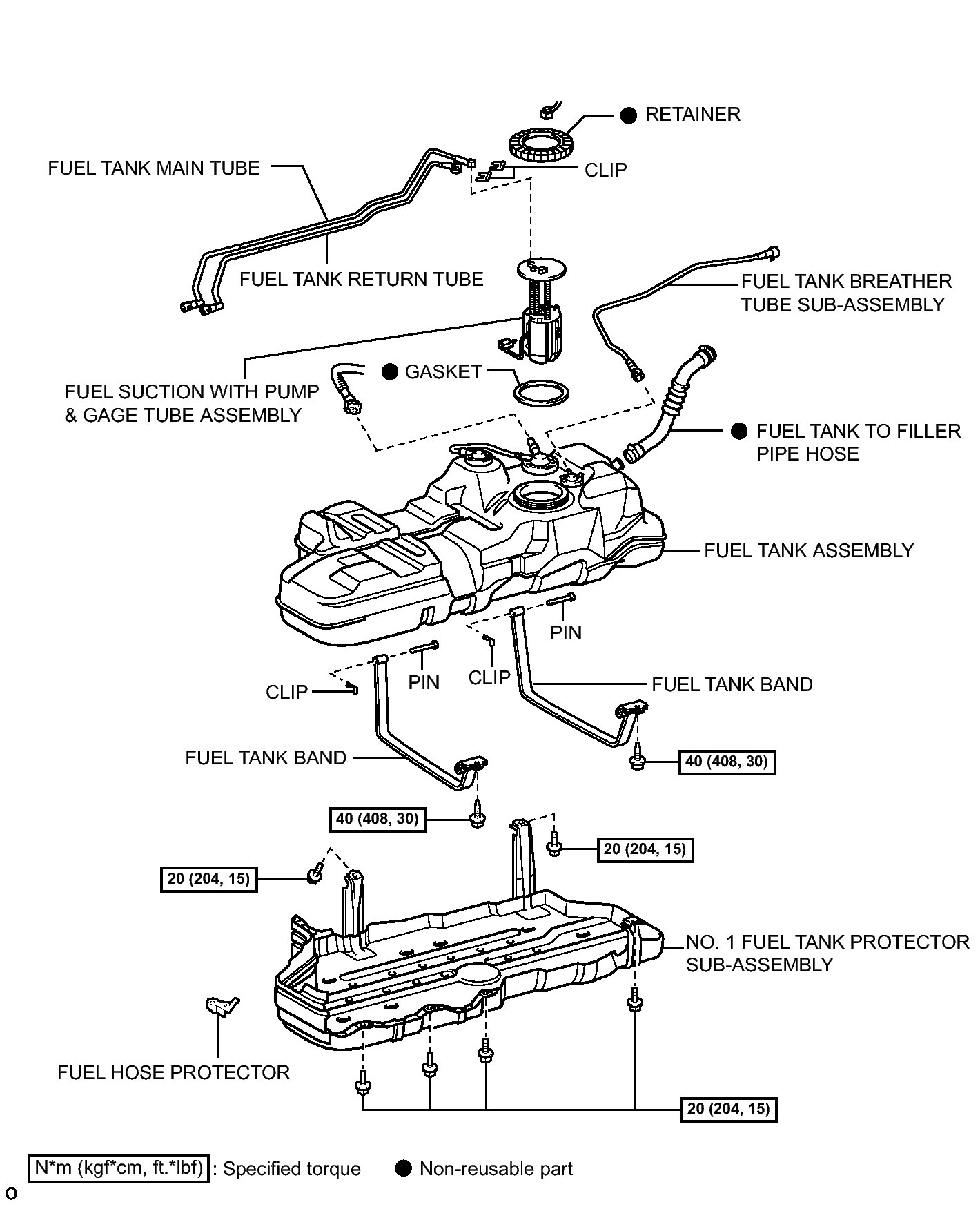

Fig 1: Identifying Fuel Tank Replacement Components With Torque Specifications (2 Of 2)
GTY145878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
