Rear Wiper and Washer: Notes

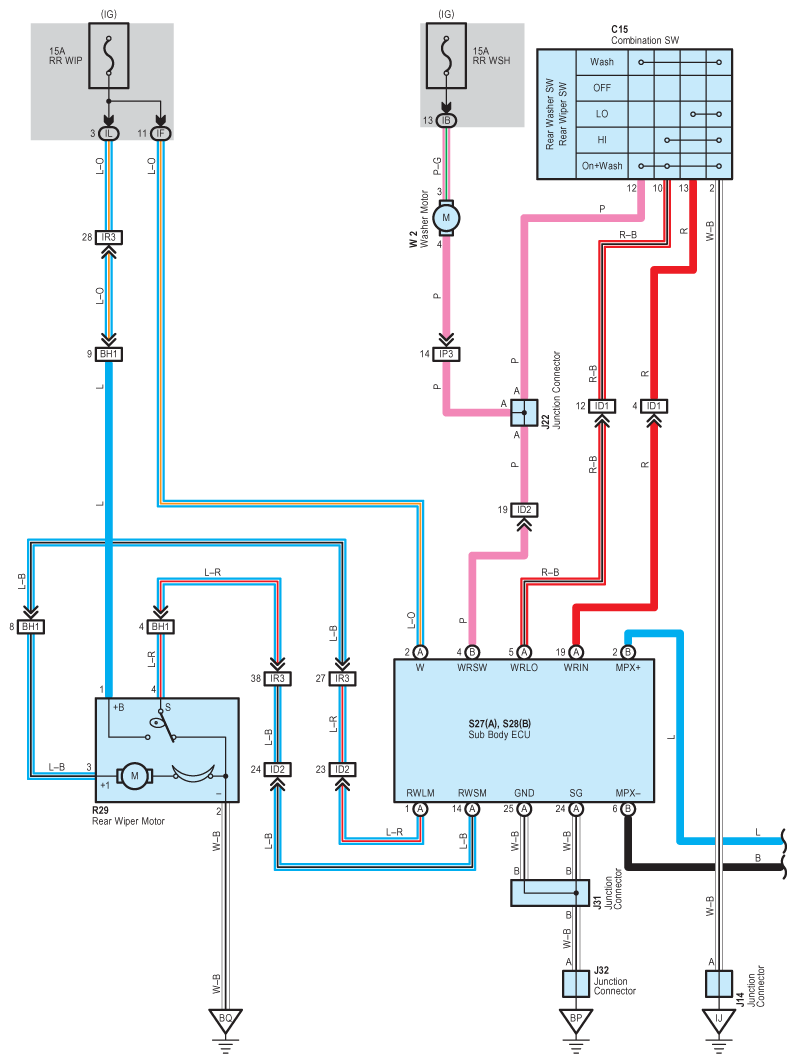

Fig 1: Rear Wiper And Washer - Circuit Diagram (1 Of 2)
G07619849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Rear Wiper And Washer - Circuit Diagram (2 Of 2)
G07619850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
