Yaw Rate And Acceleration Sensor: Removal: Removal

  1. DISCONNECT BATTERY NEGATIVE TERMINAL
  2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
  3. REMOVE CONSOLE UPPER PANEL GARNISH NO. 2  . Refer to REMOVAL - Step 5
  4. REMOVE CONSOLE UPPER PANEL GARNISH NO. 1  . Refer to REMOVAL - Step 6
  5. REMOVE CONSOLE PANEL UPPER  . Refer to REMOVAL - Step 7
  6. REMOVE YAW RATE AND ACCELERATION SENSOR
    1. Disconnect the yaw rate sensor connector.

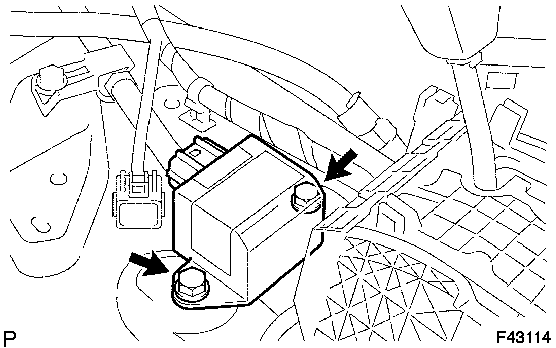

      Fig 1: Identifying Yaw Rate Sensor Bolts
      GTY136077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and yaw rate sensor.
