Home >> Lexus >> 2009 >> GX 470 >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Window (Service Information) >> Windshield Glass >> Components >> Illustration

Windshield Glass: Components: Illustration

Fig 1: Identifying Windshield Glass Replacement Components
GTY118539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

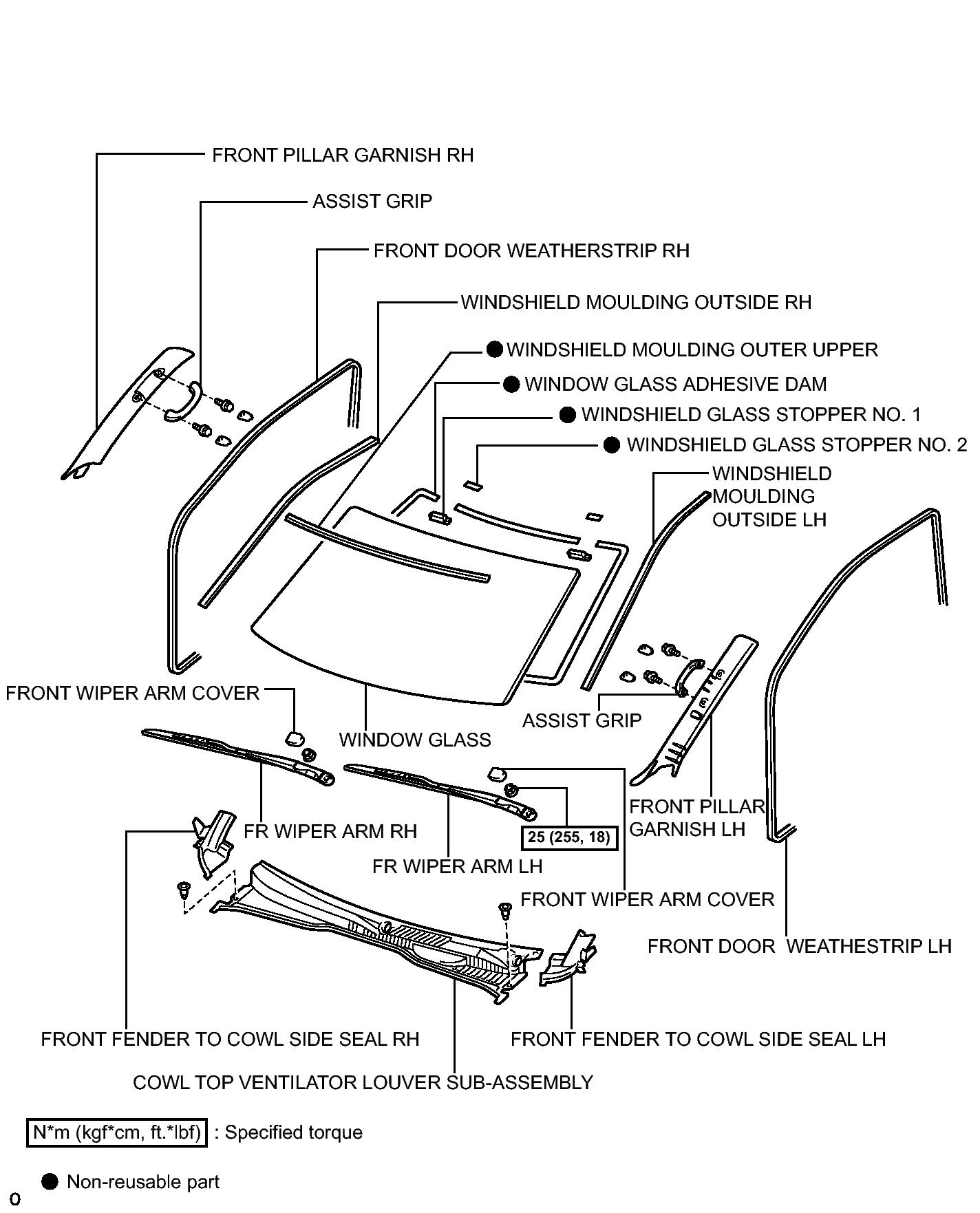

Fig 1: Identifying Windshield Glass Replacement Components With Torque Specifications
GTY118552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
