Back Window Glass: Components: Illustration

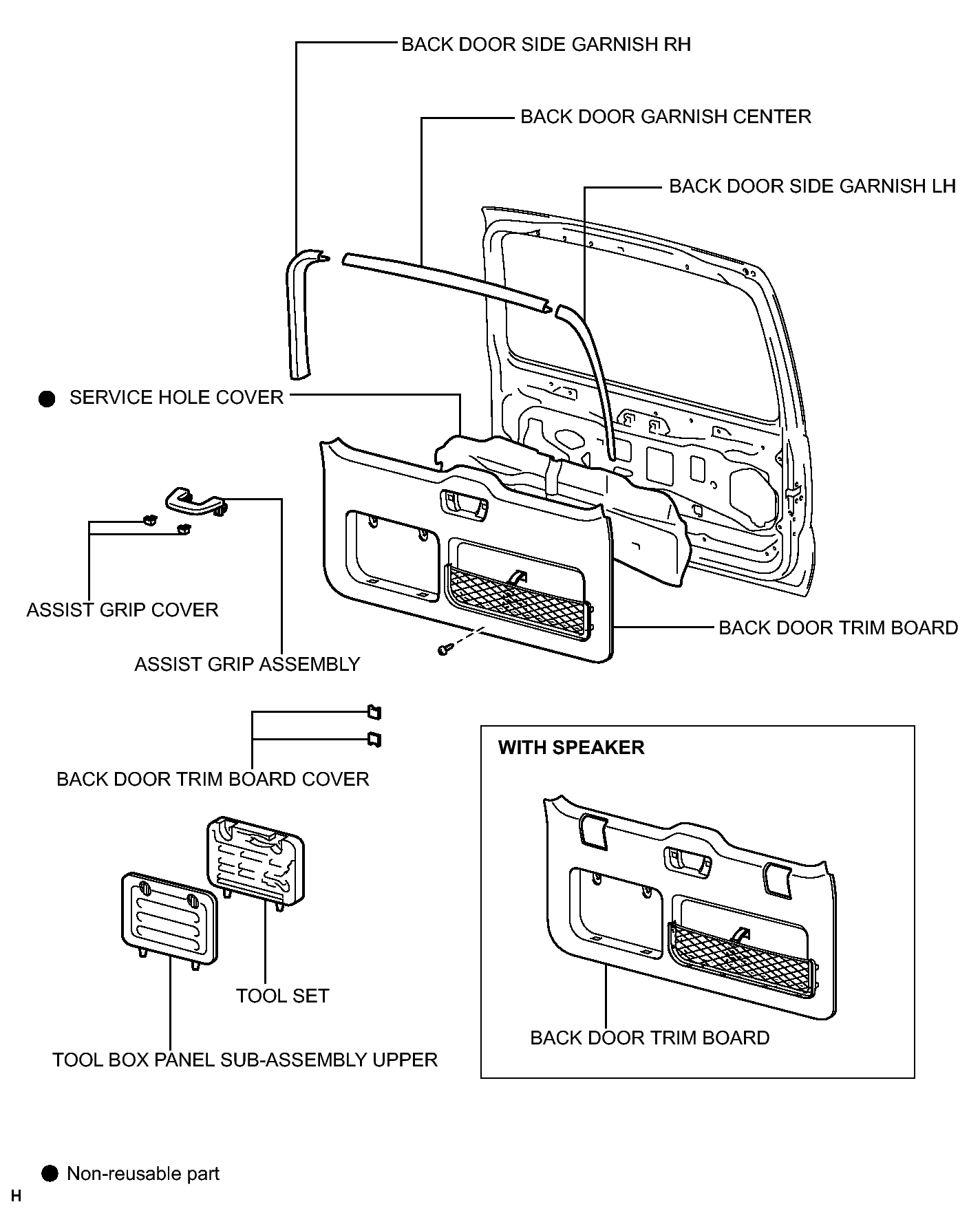

Fig 1: Identifying Back Window Glass Replacement Components
GTY129860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

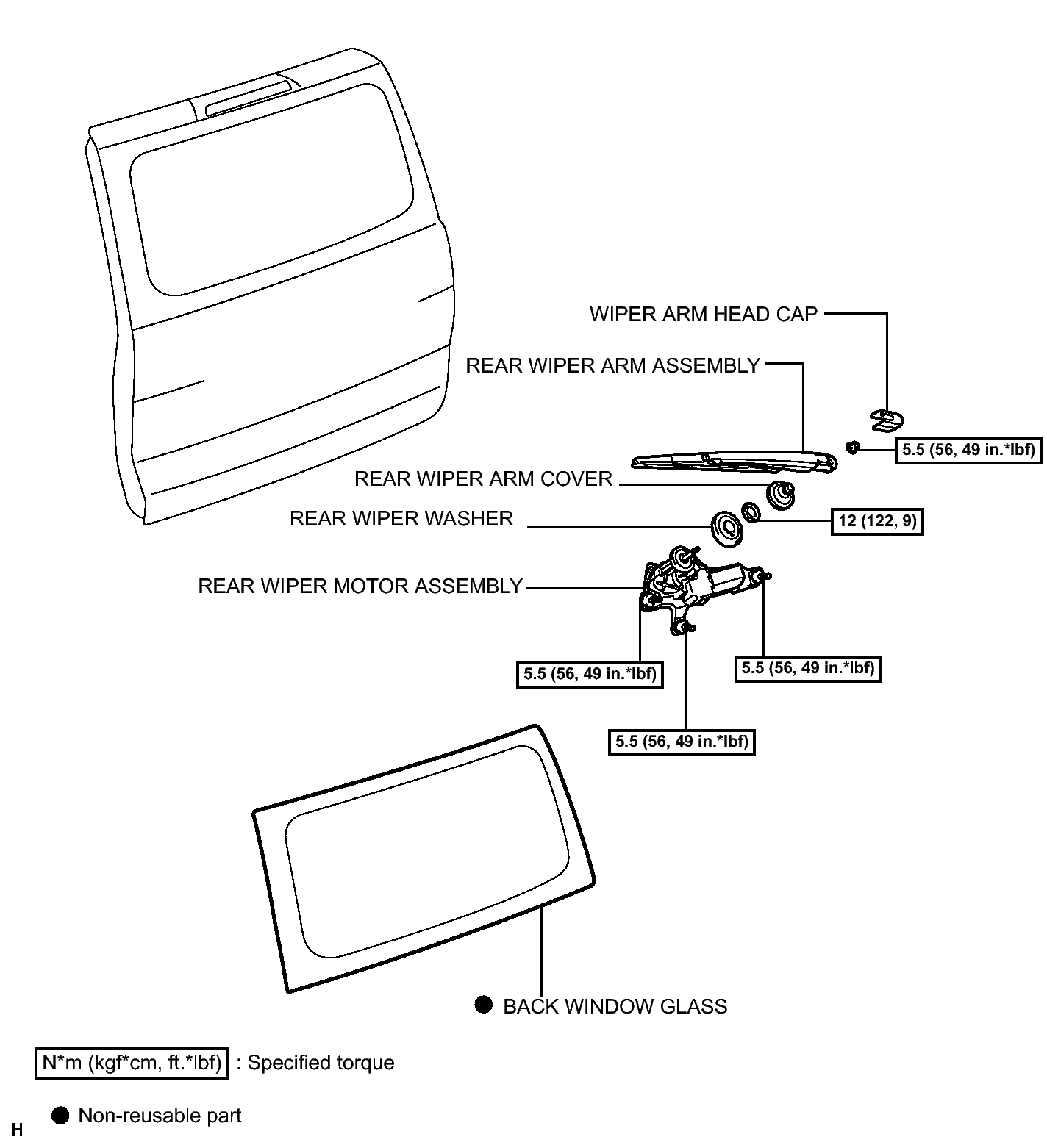

Fig 1: Identifying Back Window Glass Replacement Components With Torque Specifications
GTY142516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
