Lexus
>>
2009
>>
GX 470
>>
Repair and Diagnosis (Single Page)
>>
Restraints
>>
Air Bag, SRS
>>
Occupant Classification System (Diagnostic Codes & Symptom Tests)
>>
Occupant Classification System
>>
DTC B1794: Open in Occupant Classification ECU Battery Positive Line
>>
Wiring Diagram

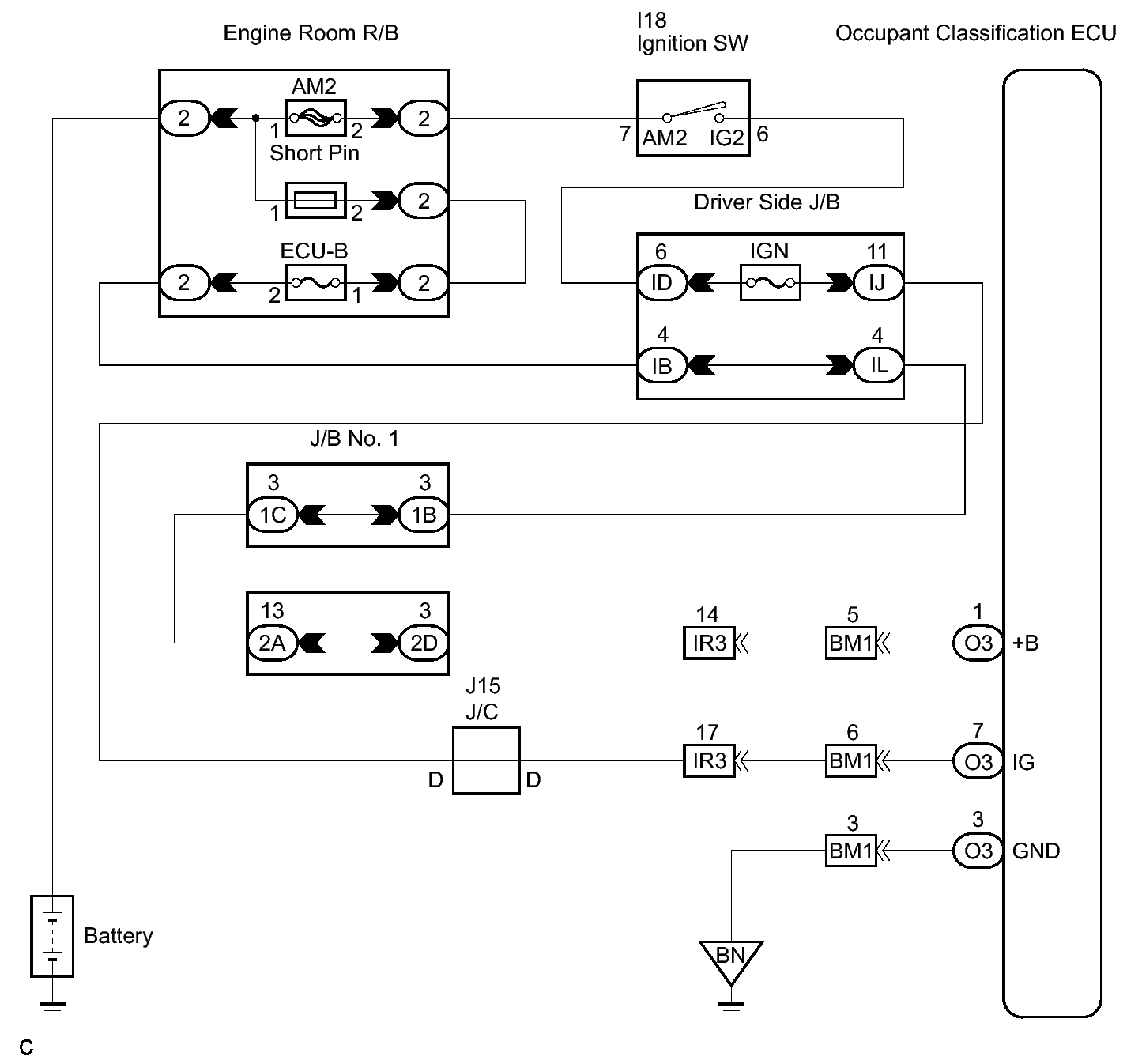

DTC B1794: Open in Occupant Classification ECU Battery Positive Line: Wiring Diagram
Fig 1: Occupant Classification ECU Battery Positive Line - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
