Rear Power Window RH Auto Up / Down Function Does Not Operate With Rear Power Window Switch RH: Wiring Diagram

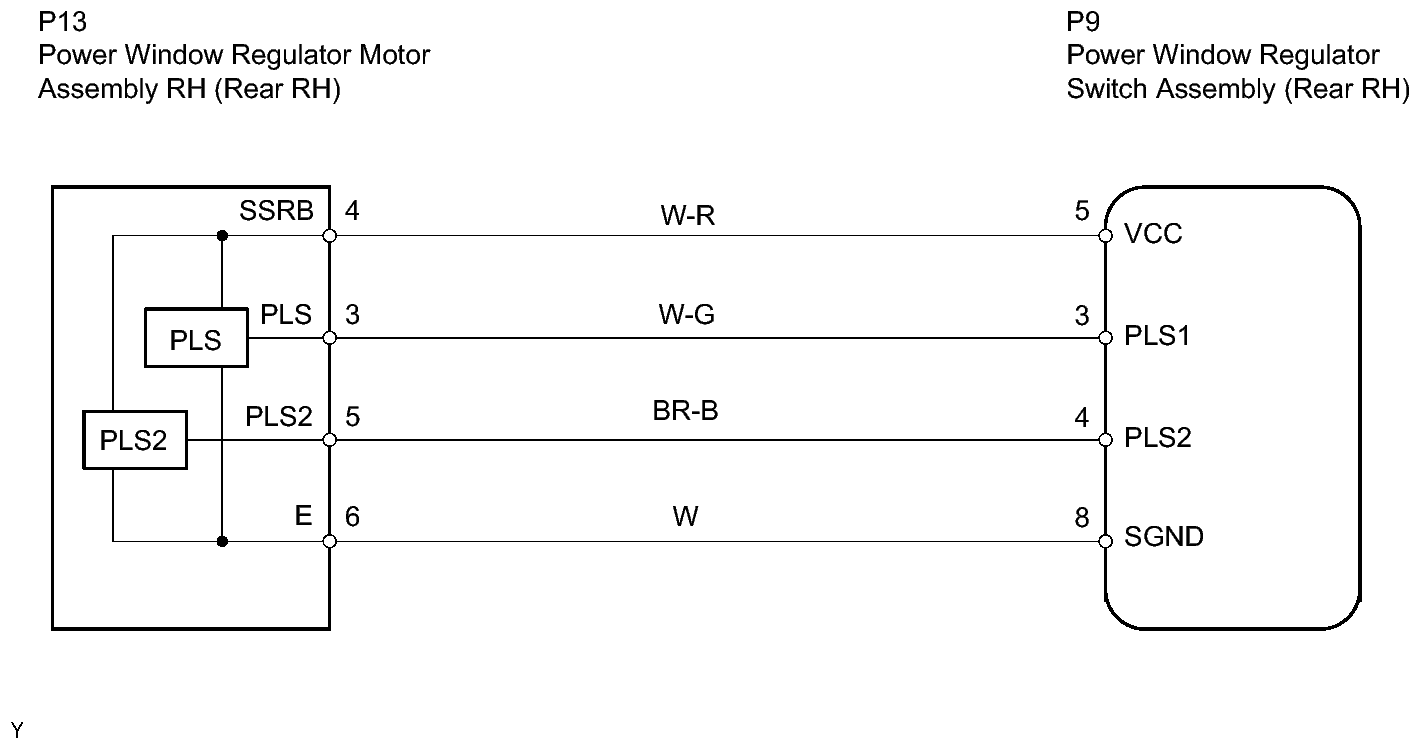

Fig 1: Identifying Power Window Regulator Motor Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
