Manual Up / Down Function Does Not Operate On Rear RH Only: Wiring Diagram

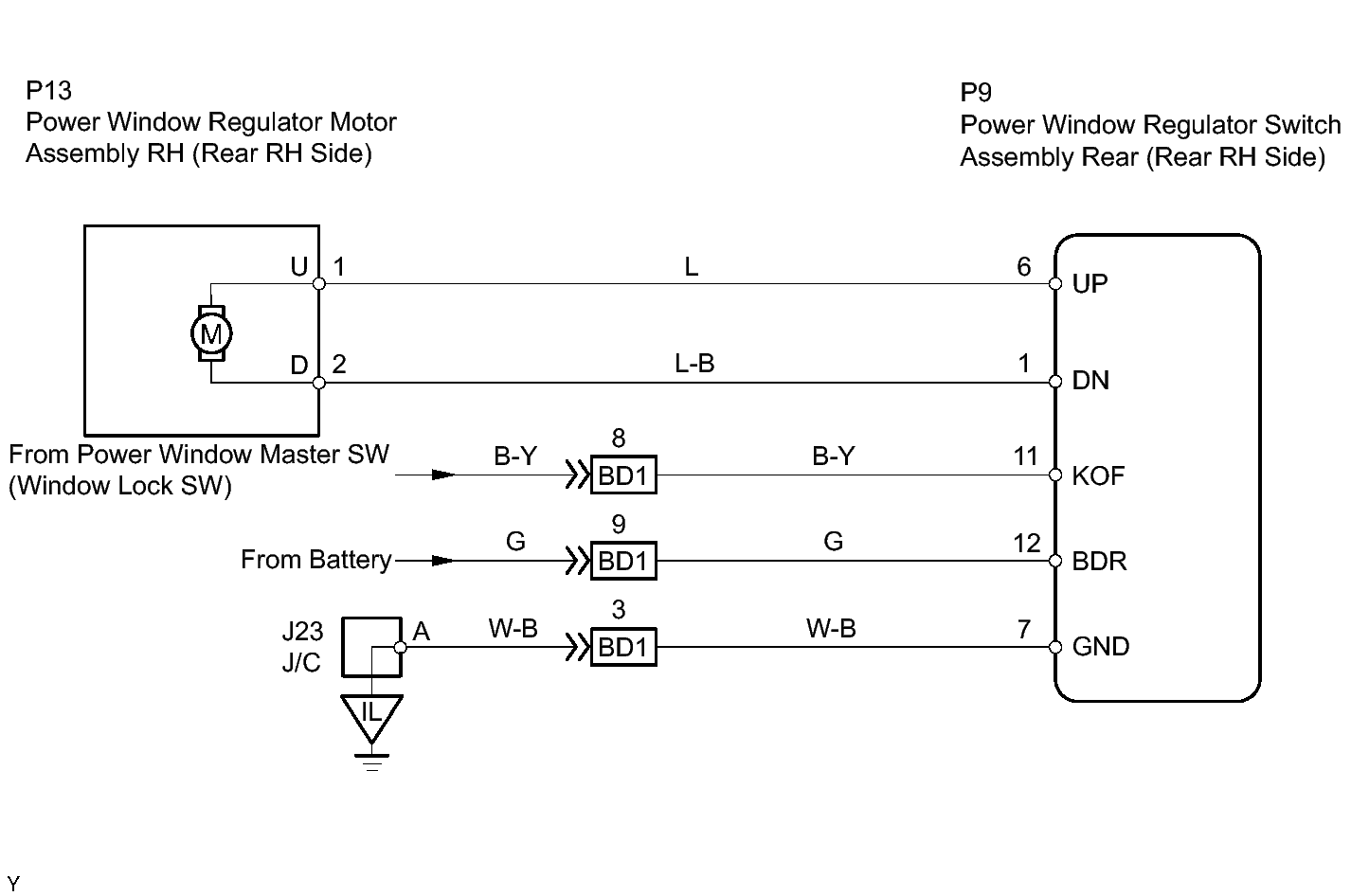

Fig 1: Identifying Power Window Regulator Motor Wiring Diagram

GTY122045

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
