Manual Up / Down Function Does Not Operate On Driver Side: Description

If the manual UP/DOWN function does not operate, the power window motor, the power window master switch or the wire harness may be abnormal.

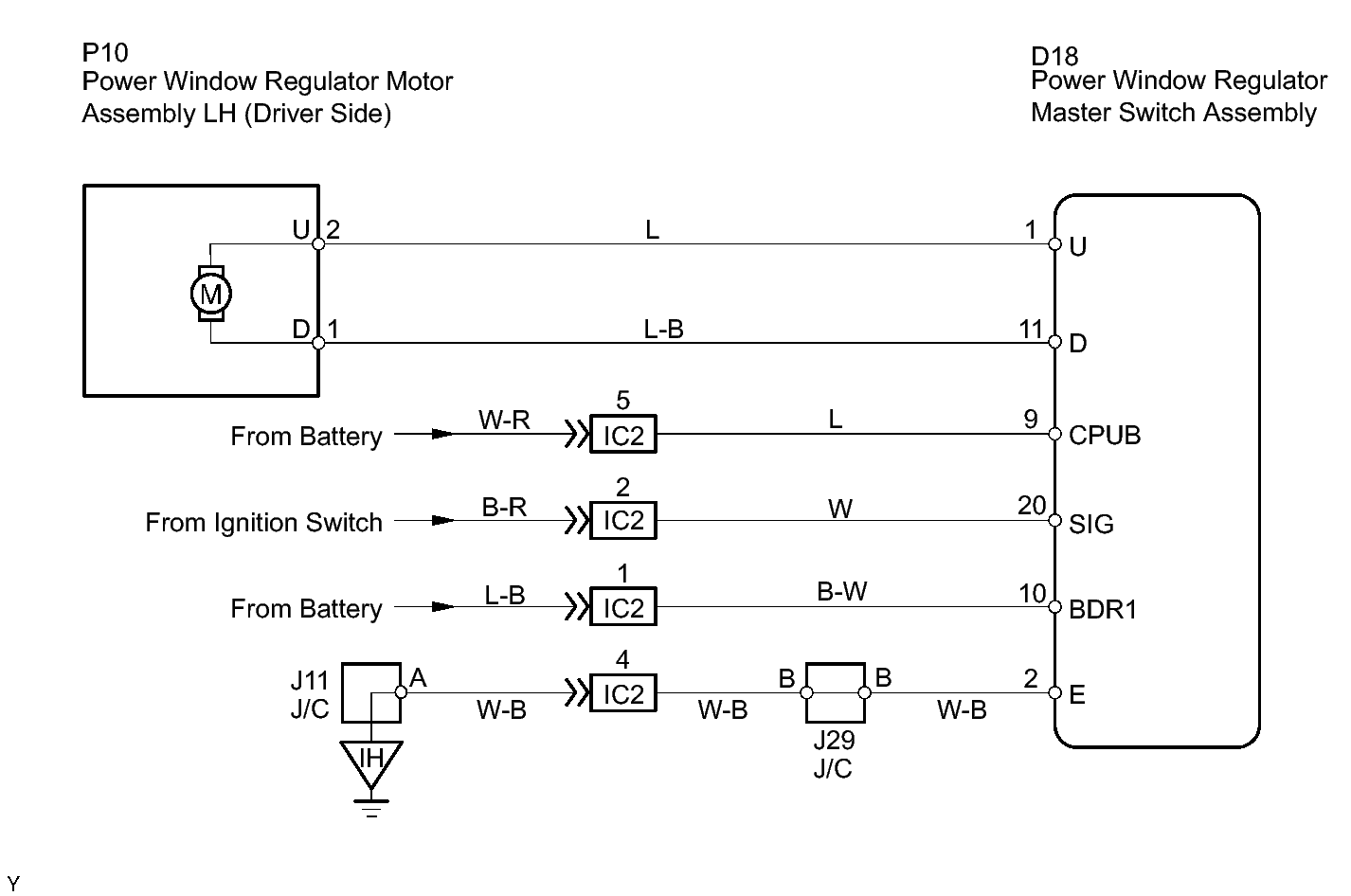

Fig 1: Identifying Power Window Regulator Motor Circuit Diagram
GTY120589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
