Driver Side Power Window Auto Up / Down Function Does Not Operate With Power Window Master Switch: Wiring Diagram

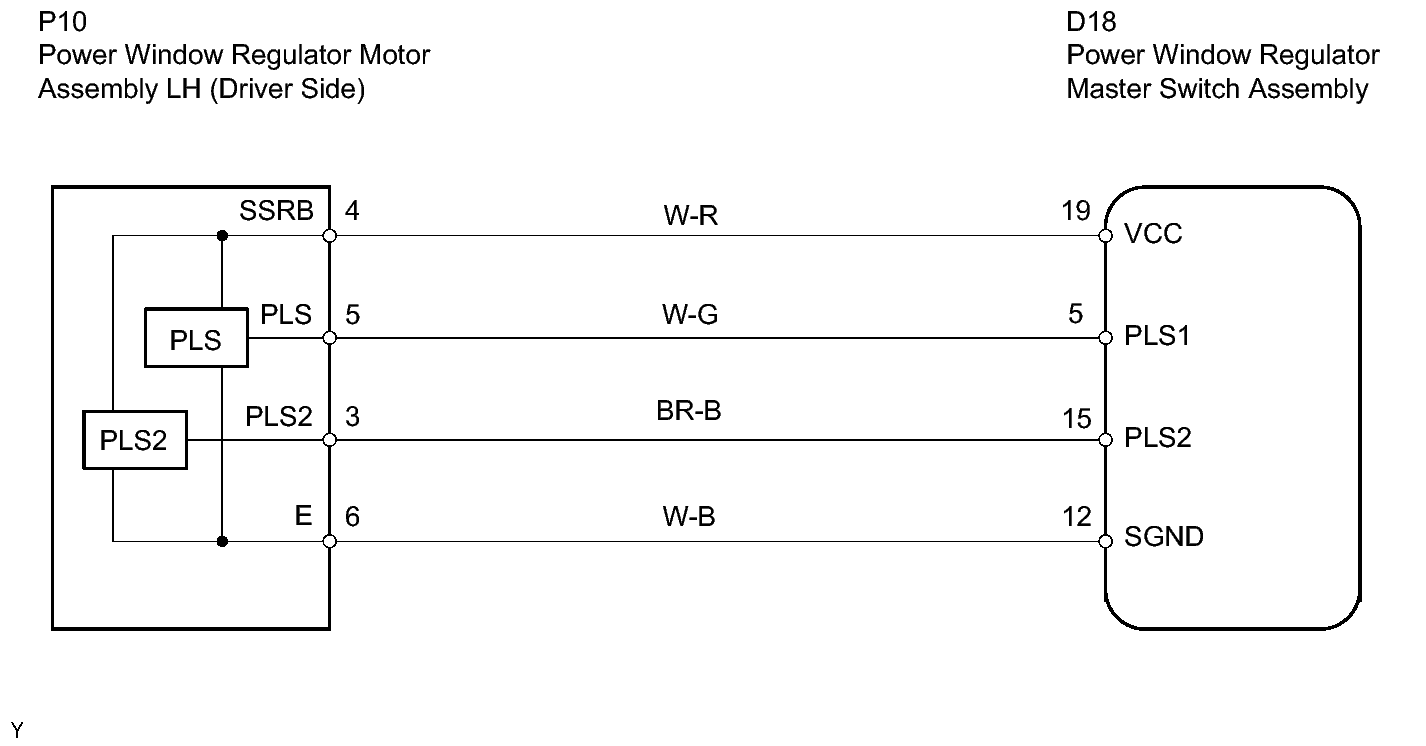

Fig 1: Identifying Power Window Regulator Motor Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
