ECU Power Source Circuit: Wiring Diagram

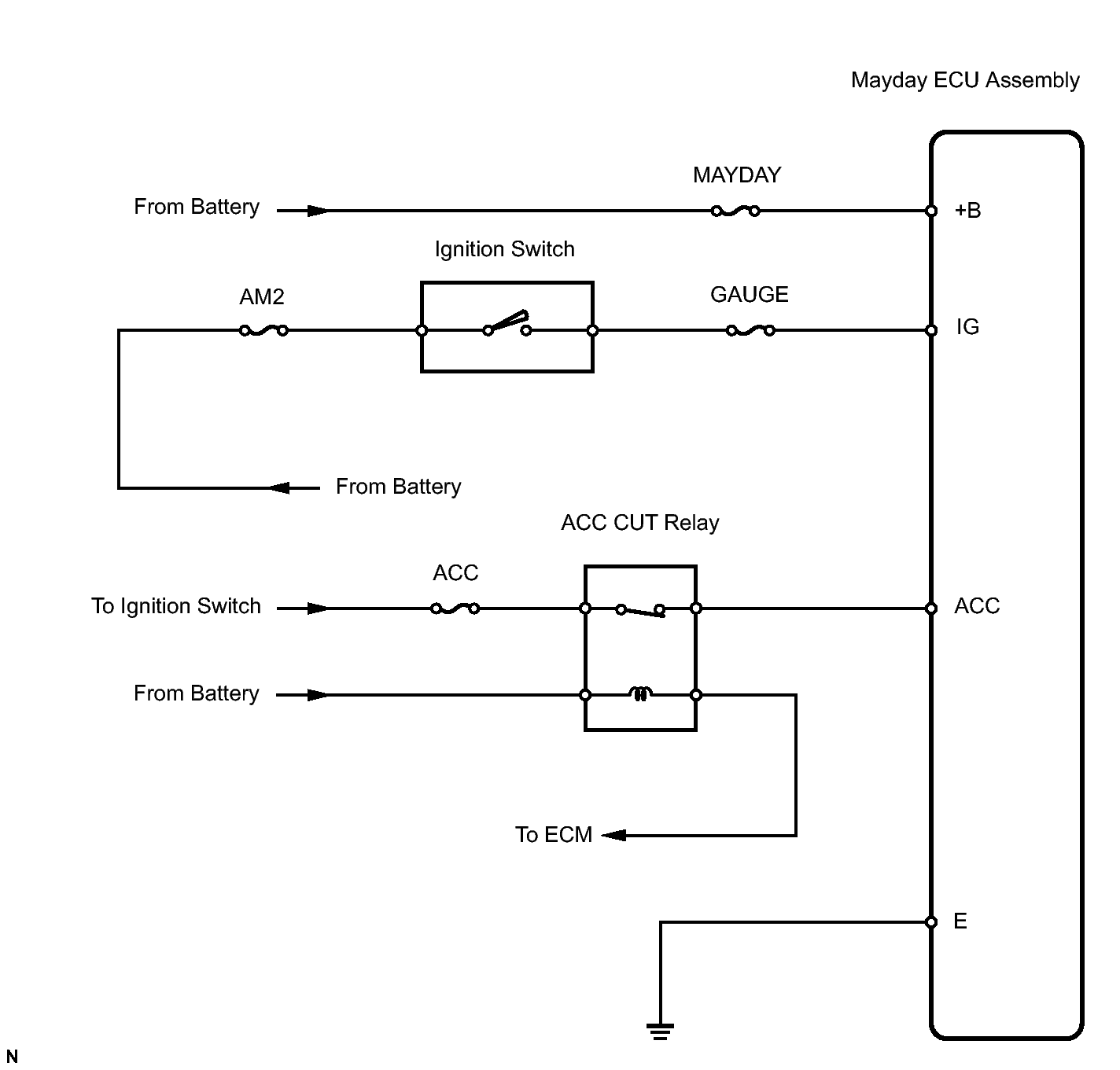

Fig 1: ECU Power Source Wiring Diagram

GTY131768

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
