Front Active Stabilizer Control Actuator: Installation: Installation

  1. INSTALL FRONT NO. 1 STABILIZER BAR BUSHING
    1. Install the 2 bushings.

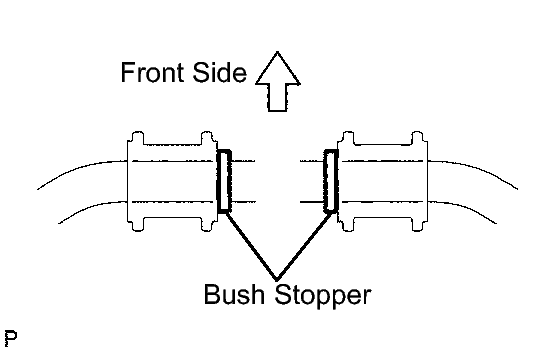

      Fig 1: Identifying Bush Stopper
      GTY100599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      • Install each bushing to the inner side of each bushing stopper on the stabilizer bar.
      • Install each bushing with its slit facing the vehicle front side.
  2. INSTALL FRONT NO. 1 STABILIZER BRACKET LH

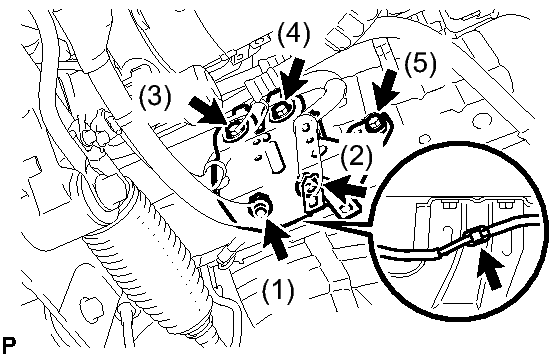

    Fig 2: Locating Front No. 1 Stabilizer Bracket LH
    GTY107648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Push the bracket toward the outside of the vehicle against the frame, and temporarily install the bolt labeled (1).
    2. Install bolt (2). Then tighten bolt (1). Then install bolt (3) and (4).

      Torque: 49 N*m ( 500 kgf*cm, 36 ft.*lbf)

    3. Install bolt (5).

      Torque: 100 N*m ( 1020 kgf*cm, 74 ft.*lbf)

    4. Install the wire clamp to the bracket.
  3. INSTALL FRONT NO. 1 STABILIZER BRACKET RH

    HINT:

    Use the same procedures described for the LH side.

  4. TEMPORARILY INSTALL FRONT ACTIVE STABILIZER CONTROL ACTUATOR ASSEMBLY

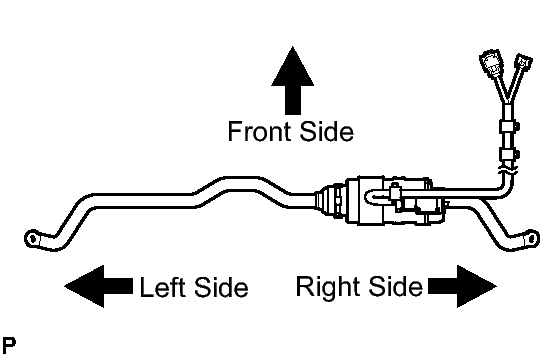

    Fig 3: Installing Front No. 1 Stabilizer Bracket RH
    GTY100899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Temporarily install the control actuator, 2 bushings and 2 brackets with the 4 bolts.
      NOTE:

      Install the actuator so that it is on the right side of the vehicle.

  5. INSTALL FRONT NO. 2 STABILIZER BRACKET LH
    1. Tighten the bracket with the 2 bolts.

      Torque: 49 N*m ( 500 kgf*cm, 36 ft.*lbf)

  6. INSTALL FRONT NO. 2 STABILIZER BRACKET RH

    HINT:

    Use the same procedures described for the LH side.

  7. INSTALL REAR ENGINE UNDER COVER LH
    1. Install the under cover with the screw.
  8. INSTALL REAR ENGINE UNDER COVER RH
    1. Install the under cover with the screw.
  9. INSTALL FRONT STABILIZER LINK ASSEMBLY LH
    1. Install the link to the lower arm side and stabilizer bar side with the 2 nuts.

      Torque: 84 N*m ( 857 kgf*cm, 62 ft.*lbf)

  10. INSTALL FRONT STABILIZER LINK ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

  11. CONNECT FRONT ACTIVE STABILIZER CONTROL ACTUATOR ASSEMBLY

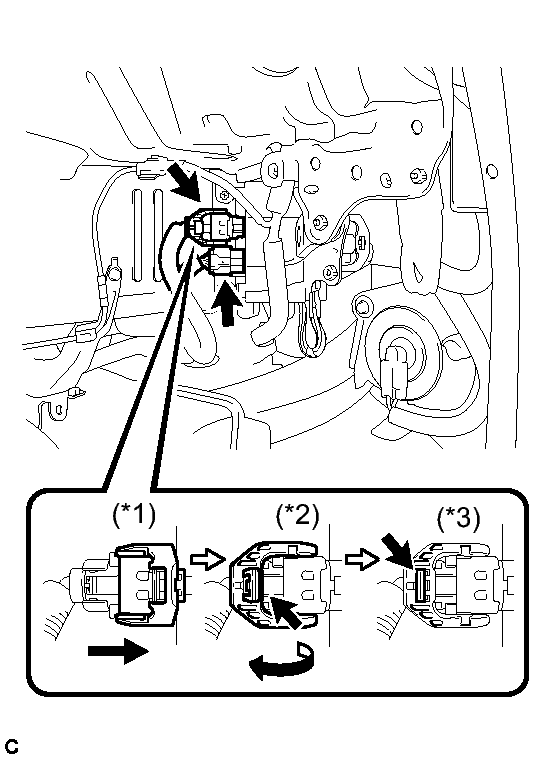

    Fig 4: Connecting Front Active Stabilizer Control Actuator Assembly
    GTY101136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using the procedures below, connect the connector to the front active stabilizer control ECU.
      • (1) Connect the connector to the front active stabilizer control ECU. (*1)
      • (2) Rotate the lever in the direction of the arrow until a "click" sound is heard. (*2)
      • (3) Lock the lever's lock. (*3)
    2. Install the wire clamp to the bracket.
  12. INSTALL FRONT FENDER LINER RH
  13. INSTALL FRONT FENDER WHEEL OPENING MOLDING RH
  14. INSTALL ENGINE UNDER COVER
  15. INSTALL FRONT WHEEL

    Torque: 103 N*m ( 1050 kgf*cm, 76 ft.*lbf)

  16. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  17. PERFORM INITIALIZATION
    1. Perform initialization Refer to INITIALIZATION .
      NOTE:

      Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
