Home >> Lexus >> 2009 >> GS 460 >> Repair and Diagnosis >> Suspension >> Suspension Control Systems >> Electronic Suspension System Components (Service Information) >> Absorber Control Ecu >> Components >> Illustration

Absorber Control Ecu: Components: Illustration

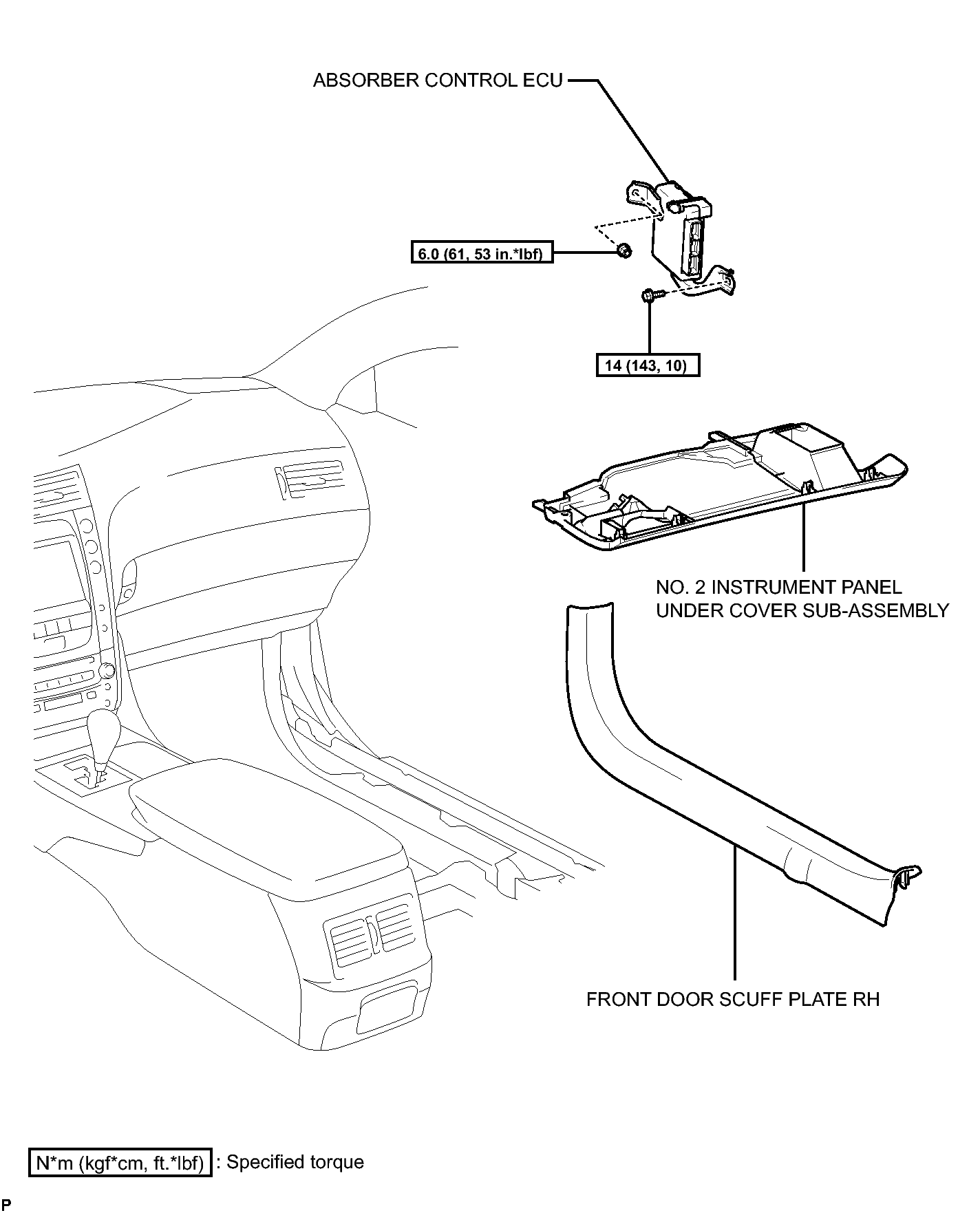

Fig 1: Identifying Absorber Control ECU Replacement Components With Torque Specifications

GTY101691

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
