Injector Driver: Components: Illustration

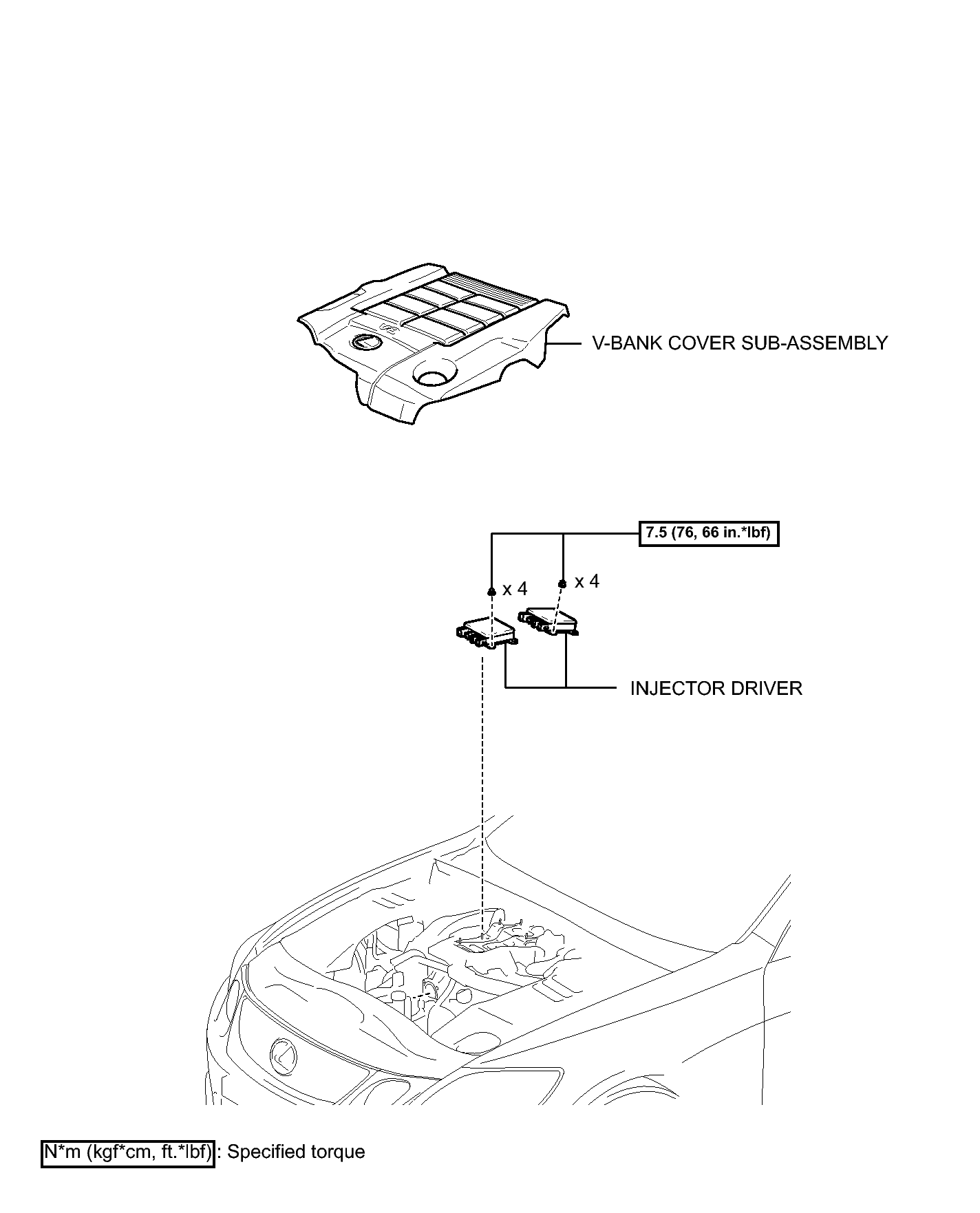

Fig 1: Injector Driver Replacement Components With Torque Specifications

GTY105689

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
