Yaw Rate And Acceleration Sensor: Installation: Installation

INSTALL YAW RATE SENSOR
1. Install the yaw rate sensor with the 2 bolts.

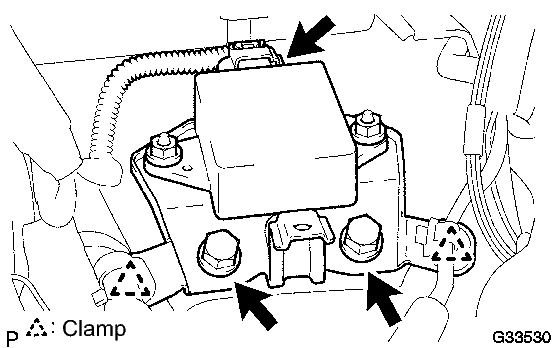

  Fig 1: Identifying 2 Wire Harness Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 15 N*m (153 kgf*cm, 11 ft.*lbf)
  NOTE:
  - Do not damage the yaw rate sensor.
  - Make sure that the yaw rate sensor is installed securely.
2. Install the 2 wire harness clamps.
3. Connect the yaw rate sensor connector.
INSTALL CONSOLE BOX NO. 1 DUCT
1. Install the console box No. 1 duct with the clip.

  Fig 2: Identifying Console Box No. 1 Duct With Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CONSOLE BOX NO. 2 DUCT
1. Install the console box No. 2 duct with the 2 clip.

  Fig 3: Locating Console Box No. 2 Duct Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CONSOLE BOX . Refer to INSTALLATION - Step 1
INSTALL CONSOLE BOX REGISTER ASSEMBLY . Refer to INSTALLATION - Step 2
INSTALL INSTRUMENT PANEL FINISH PANEL END LH . Refer to INSTALLATION - Step 4
INSTALL INSTRUMENT PANEL FINISH PANEL END RH . Refer to INSTALLATION - Step 5
INSTALL CONSOLE BOX PLATE . Refer to INSTALLATION - Step 3
INSTALL FRONT CONSOLE UPPER PANEL ASSEMBLY . Refer to INSTALLATION - Step 21
INSTALL CONSOLE UPPER PANEL GARNISH FRONT . Refer to INSTALLATION - Step 7
PERFORM YAW RATE SENSOR ZERO POINT CALIBRATION
HINT:
- for 2GR-FSE Refer to CALIBRATION
- for 1UR-FSE Refer to CALIBRATION
INSPECT VSC SENSOR SIGNAL
HINT:
- for 2GR-FSE Refer to TEST MODE PROCEDURE
- for 1UR-FSE Refer to TEST MODE PROCEDURE
