Ignition Coil: Components: Illustration

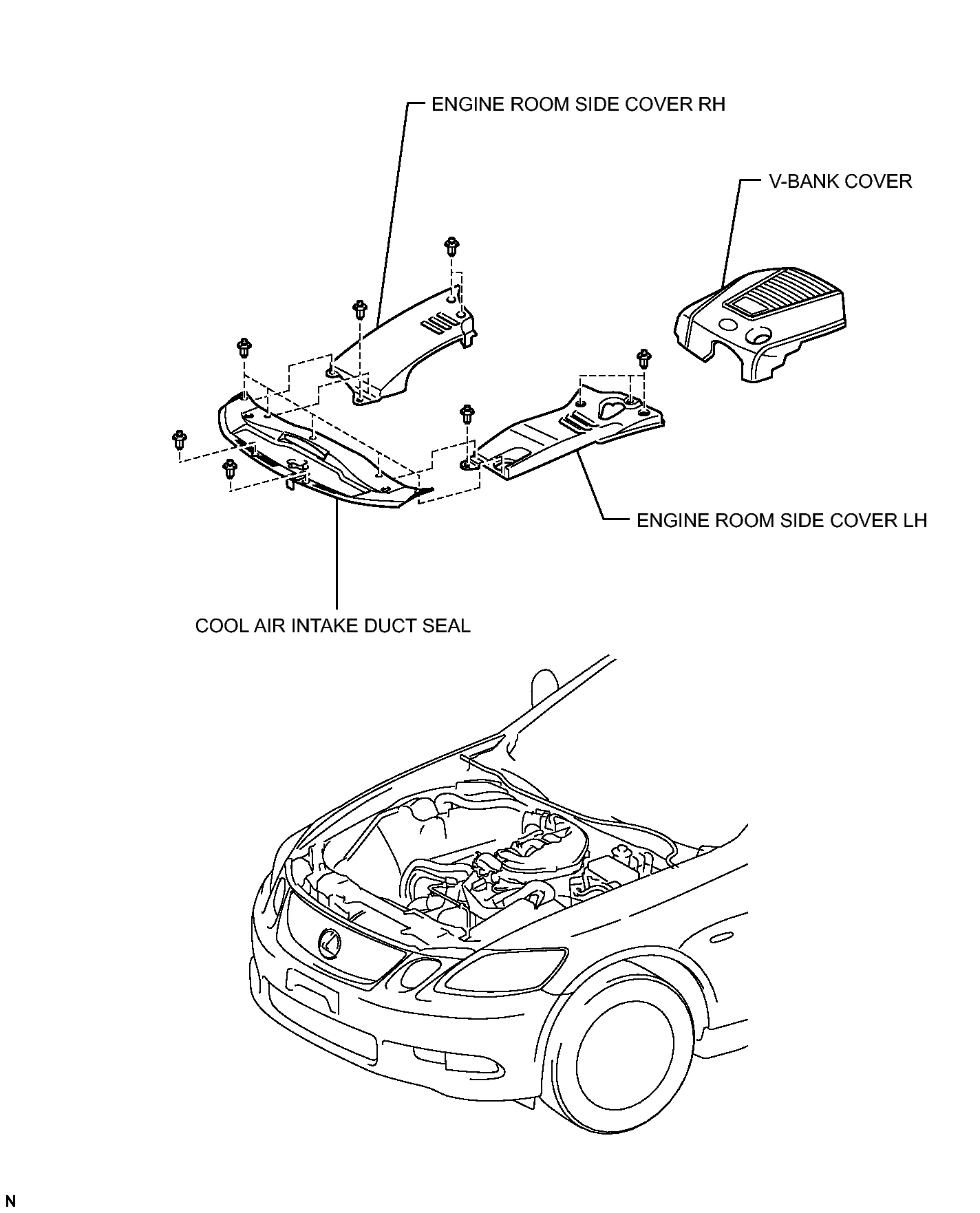

Fig 1: Identifying Ignition Coil Replacement Components (1 Of 2)
GTY146876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

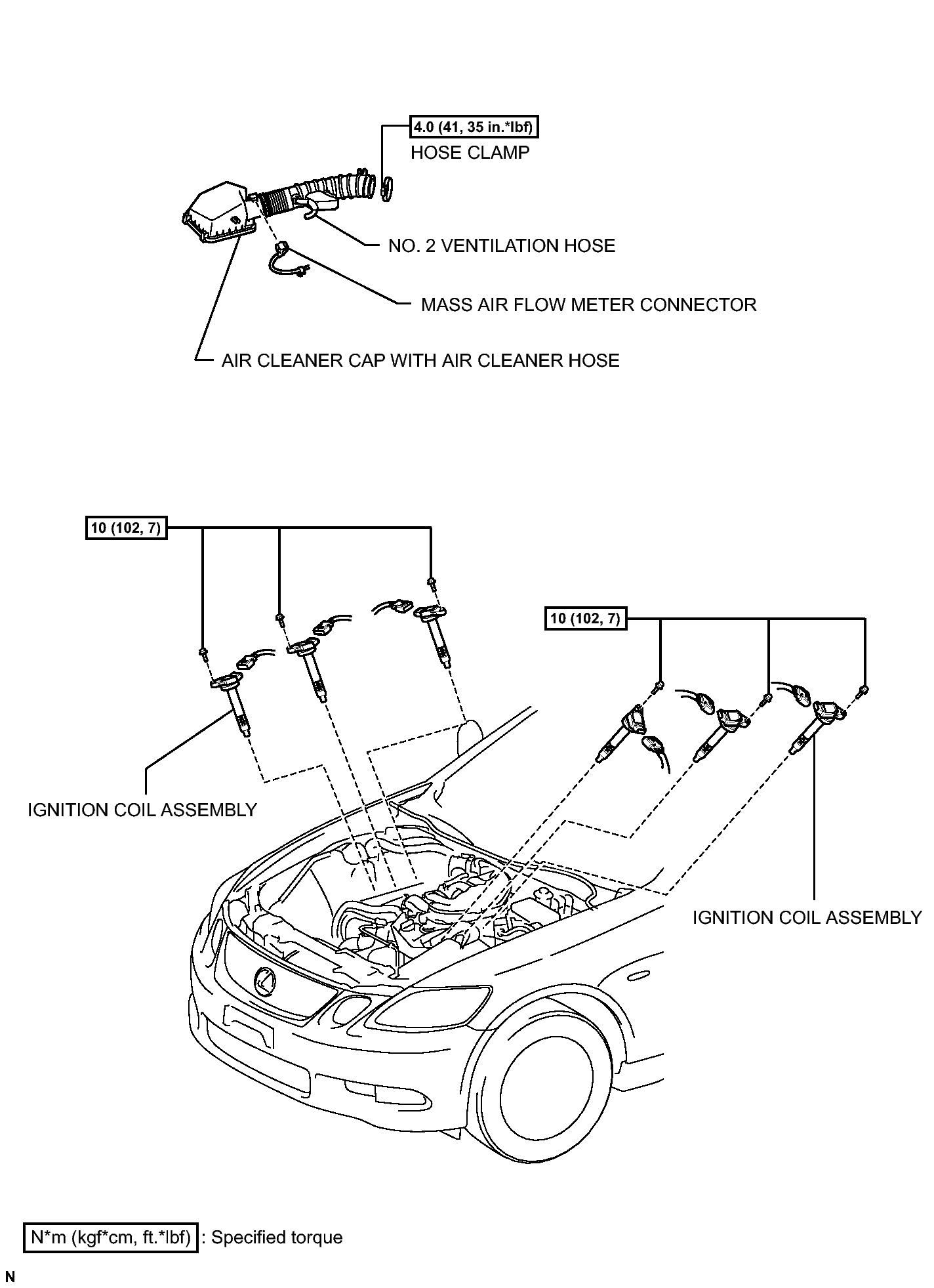

Fig 1: Identifying Ignition Coil Replacement Components With Torque Specifications (2 Of 2)
GTY146877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
