Yaw Rate And Acceleration Sensor: Components: Illustration

Fig 1: Identifying Yaw Rate And Acceleration Sensor Replacement Components (1 Of 2)
GTY113931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

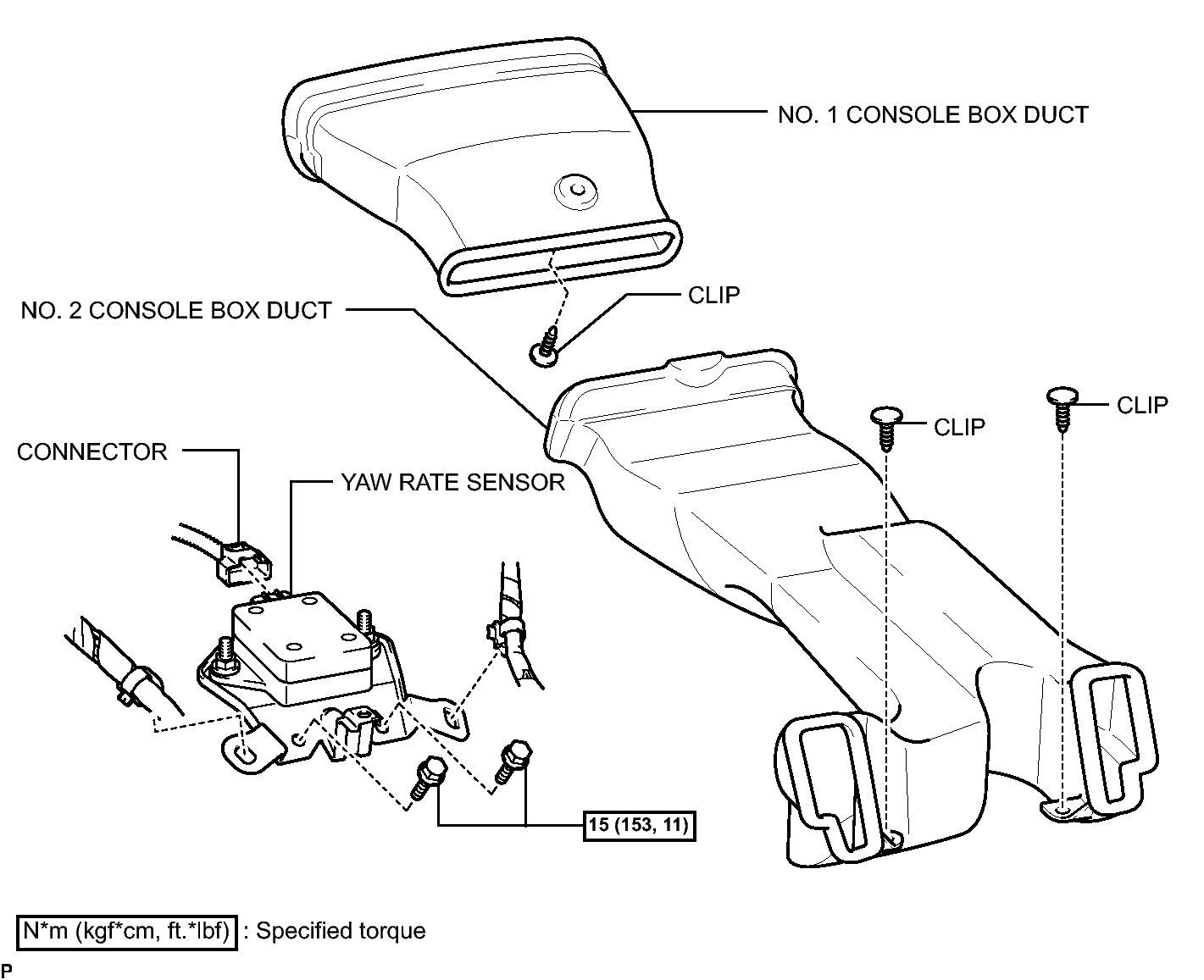

Fig 1: Identifying Yaw Rate And Acceleration Sensor Replacement Components With Torque Specification (2 Of 2)
GTY114185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
