Parts Location: Illustration

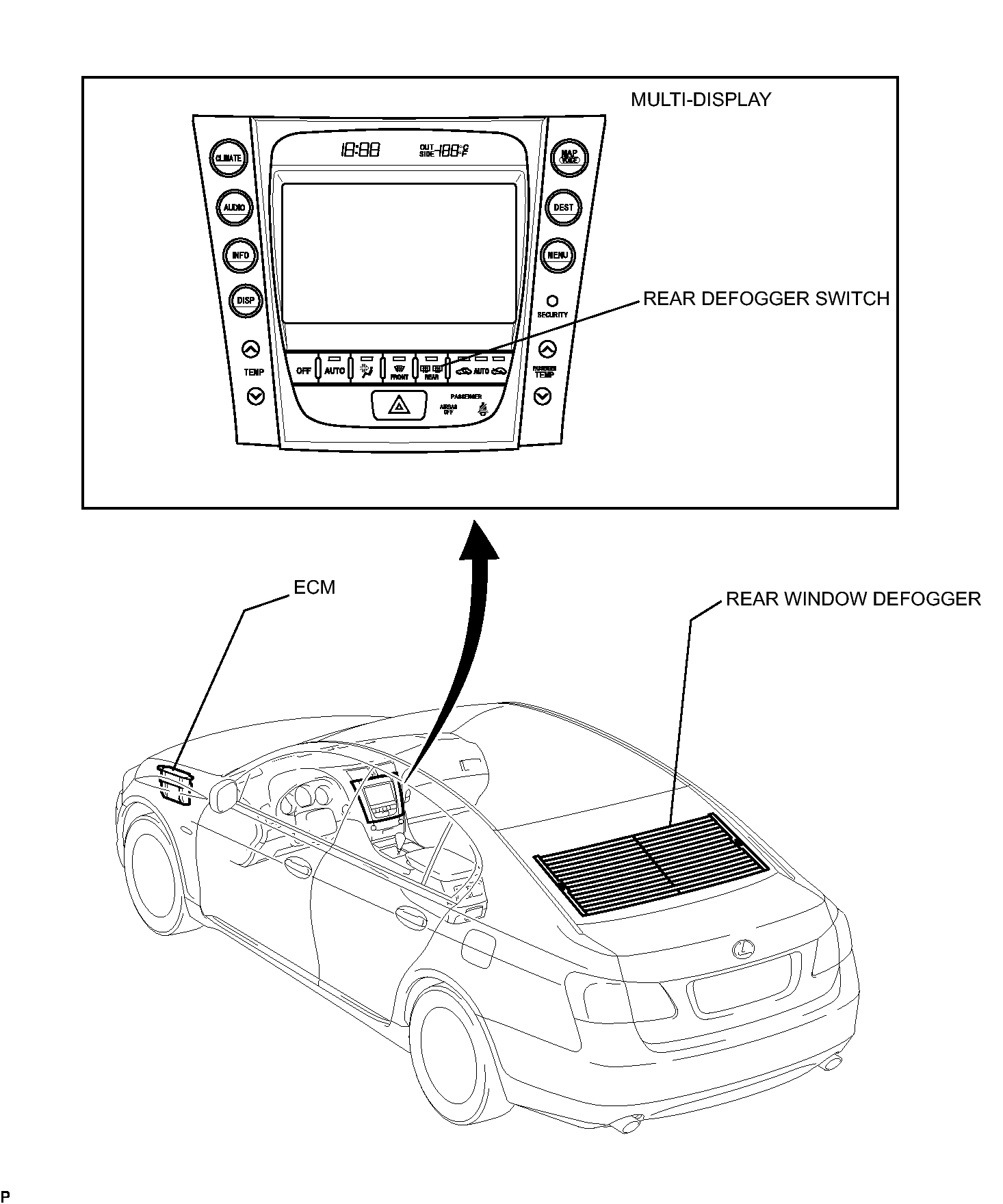

Fig 1: Identifying Window Defogger System Replacement Components (1 Of 2)
GTY120084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

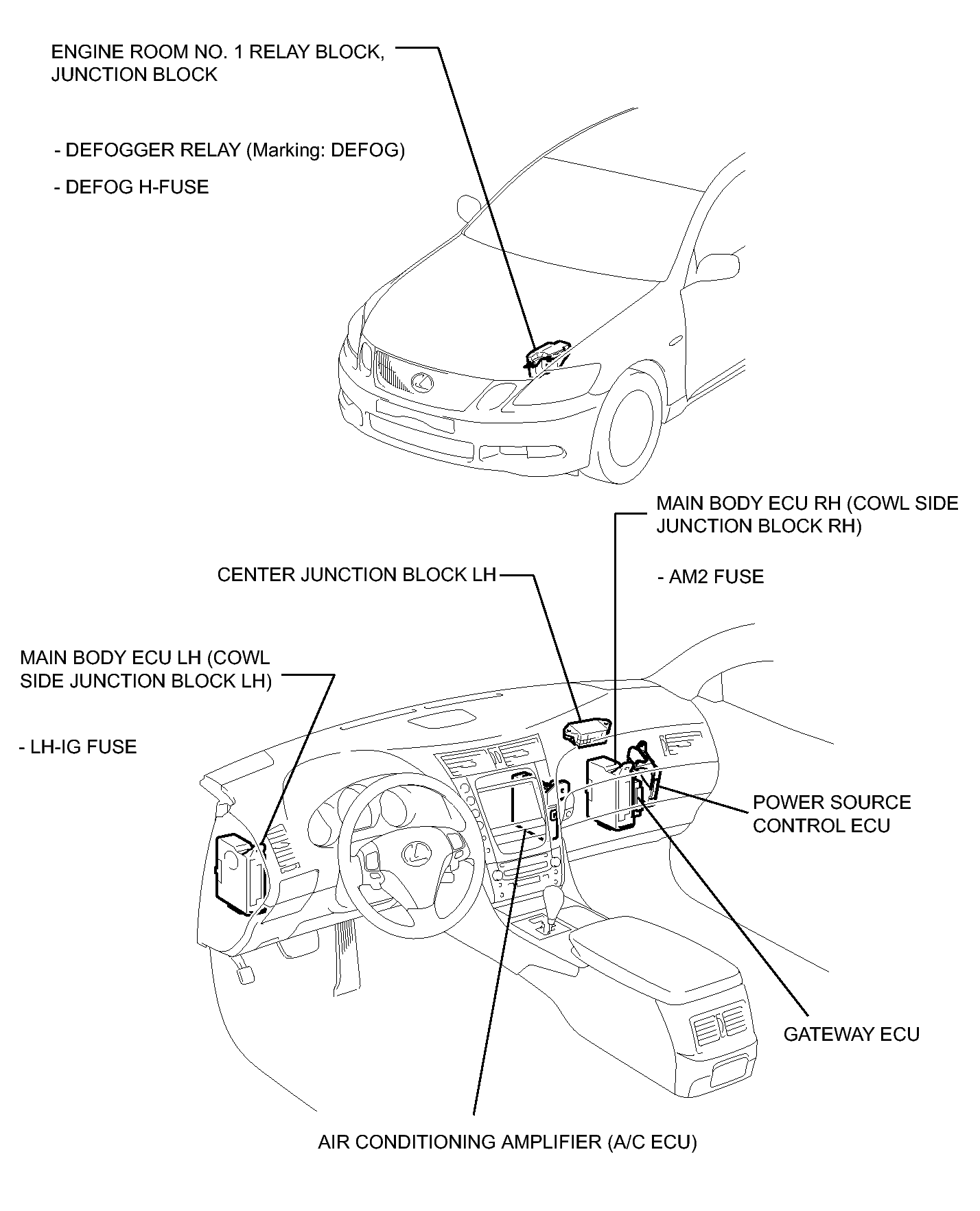

Fig 1: Identifying Window Defogger System Replacement Components (2 Of 2)
GTY118122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
