Unlock Position Sensor Signal Circuit: Wiring Diagram

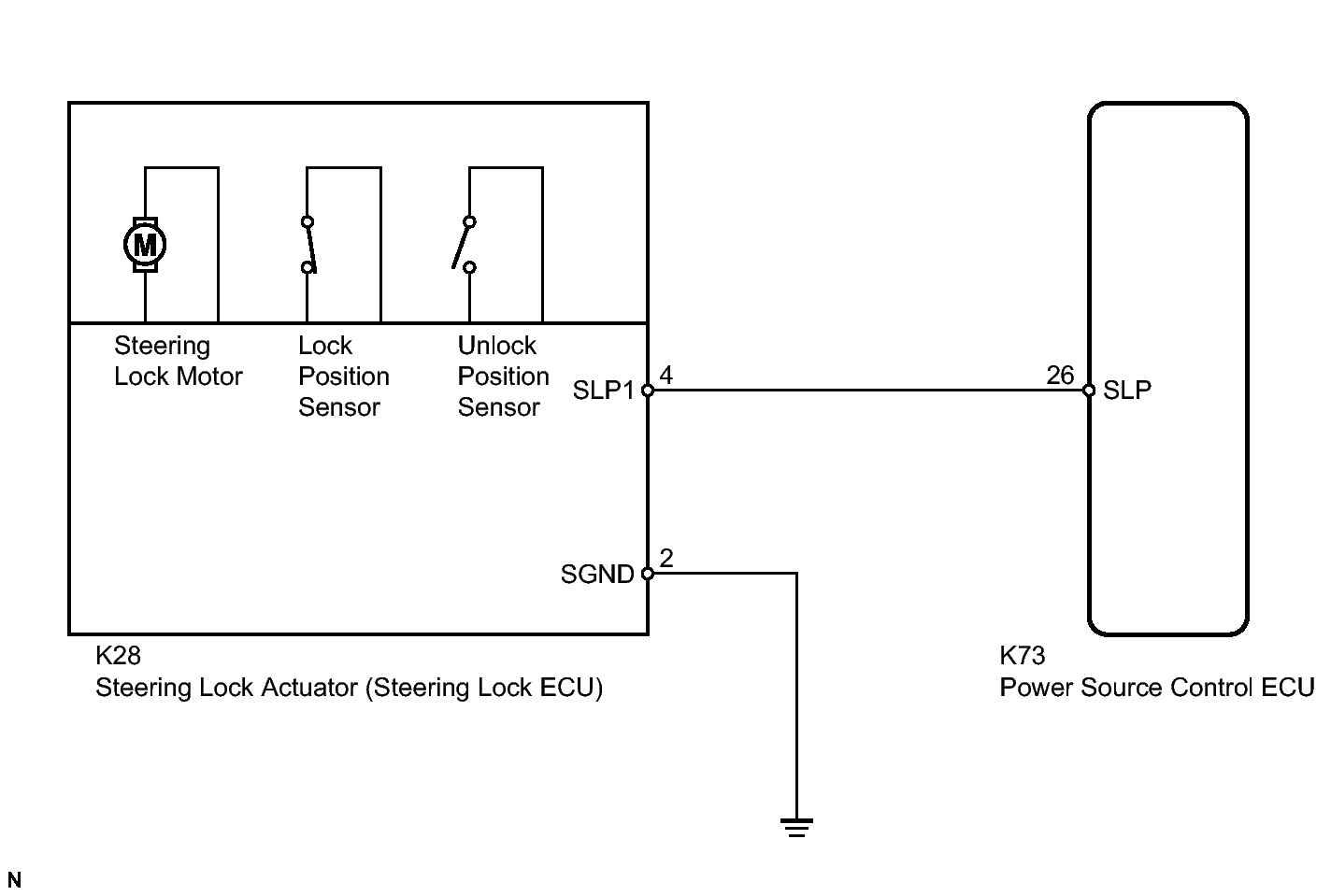

Fig 1: K28 Steering Lock Actuator (Steering Lock ECU) To K73 Power Source Control ECU - Wiring Diagram
GTY155025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
