DTC P0A1A-200: Generator Control Module; DTC P0A1A-792: Generator Control Module; DTC P0A1A-793: Generator Control Module: Wiring Diagram

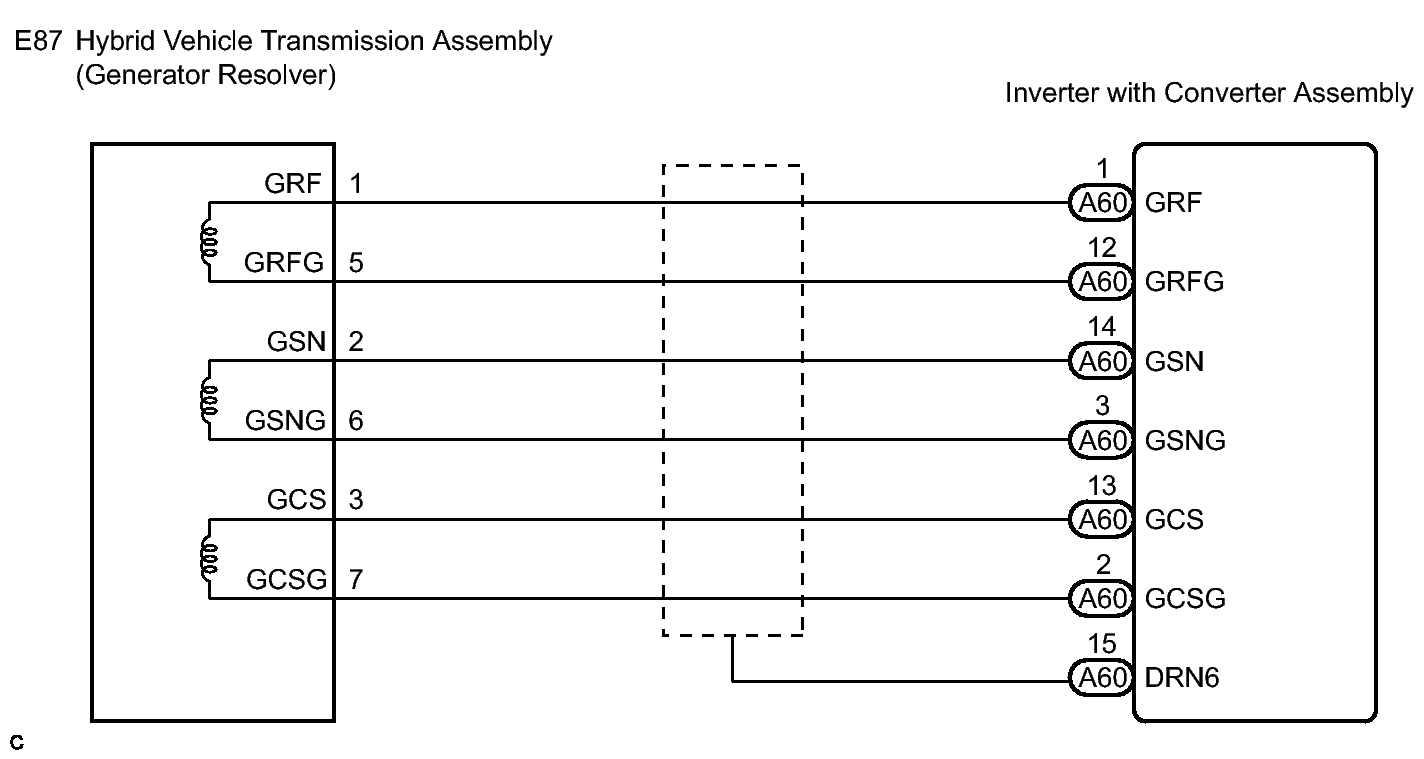

Fig 1: Generator Control Module - Wiring Diagram
GTY147327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
