Rear Door LH Entry Unlock Function does not Operate: Procedure
- CHECK MANUAL DOOR UNLOCK OPERATION
- Check that the manual door unlock function operates normally.
OK
Manual door unlock function operates normally.
NG → GO TO POWER DOOR LOCK CONTROL SYSTEM
OK: Go to next step
- Check that the manual door unlock function operates normally.
- READ VALUE USING TECHSTREAM (DOOR COURTESY SWITCH)
- Check the DATA LIST for proper functioning of the rear LH side door courtesy switches.MAIN BODY ECU RH:
Tester Display Measurement Item/Range Normal Condition Diagnostic Note Rr Door Courtesy SW Rear door courtesy switch / ON or OFF ON: Courtesy switch is pushed
OFF: Courtesy switch is not pushed- OK
ON (door courtesy switch is pushed) appears on the screen.
NG → GO TO LIGHTING SYSTEM
OK: Go to next step
- Check the DATA LIST for proper functioning of the rear LH side door courtesy switches.
- READ VALUE USING TECHSTREAM (DOOR LOCK POSITION SWITCH)
- Check the DATA LIST for proper functioning of the door lock position switch.MULTIPLEX NETWORK DOOR ECU REAR LH:
Tester Display Measurement Item/Range Normal Condition Diagnostic Note Door Unlock Detection Switch Door unlock detection switch / ON or OFF ON: Door is unlocked
OFF: Door is locked- OK
On the Techstream screen, the display changes between ON and OFF as shown in the chart above.
NG → GO TO POWER DOOR LOCK CONTROL SYSTEM (Proceed to Only Rear Door LH LOCK / UNLOCK Functions do not Operate)
OK: Go to next step
- Check the DATA LIST for proper functioning of the door lock position switch.
- PERFORM ACTIVE TEST USING TECHSTREAM (DRIVER SIDE REAR SELECT)
- Select the ACTIVE TEST, use the Techstream to generate a control command, and then check that the oscillator operates.CERTIFICATION ECU:
Tester Display Test Part Control Range Diagnostic Note Dr-Seat Select Driver side rear select ON / OFF - OK
ON (Dr-Seat Select is on) appears on the screen.
NG → REPLACE CERTIFICATION ECU
OK: Go to next step
- Select the ACTIVE TEST, use the Techstream to generate a control command, and then check that the oscillator operates.
- READ VALUE USING TECHSTREAM (DRIVER SIDE REAR TOUCH SENSOR)
- With "Dr-Seat Select" ON, check the DATA LIST for proper functioning of the touch sensor.CERTIFICATION ECU:
Tester Display Measurement Item/Range Normal Condition Diagnostic Note Dr-Touch Sensor Driver side rear door touch sensor / ON or OFF ON: Sensor is touched
OFF: Sensor is not touched- OK
When driver side rear door touch sensor is touched, ON (Sensor is touched) appears on the screen.
NG → See step 7
OK: Go to next step
- With "Dr-Seat Select" ON, check the DATA LIST for proper functioning of the touch sensor.
- CHECK OPERATION OF MULTIPLEX NETWORK DOOR ECU REAR LH
- After replacing the multiplex network door ECU rear LH with a normal one, check that the entry unlock function operates normally.
OK
Entry unlock function operates normally.
NG → REPLACE CERTIFICATION ECU
OK → END (MULTIPLEX NETWORK DOOR ECU REAR LH IS DEFECTIVE)
- After replacing the multiplex network door ECU rear LH with a normal one, check that the entry unlock function operates normally.
- CHECK DOOR ELECTRICAL KEY OSCILLATOR REAR LH
- Measure the voltage of the oscillator connector.
Standard voltage
Tester Connection Condition Specified Condition 4 (SEL) - Body ground During Active Test Below 1 V 6 (SENS) - Body ground Touch sensor is touched during Active Test Below 1 V
OK → REPLACE CERTIFICATION ECU
NG: Go to next step
- Measure the voltage of the oscillator connector.

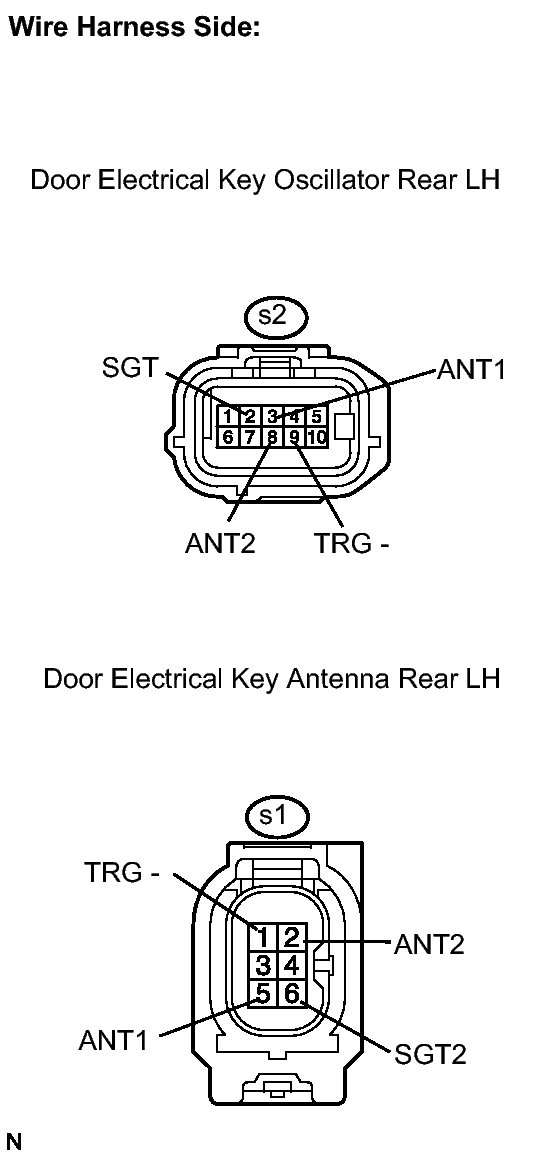

- CHECK WIRE HARNESS (OSCILLATOR - ANTENNA)
- Disconnect the s2 oscillator connector.
- Disconnect the s1 antenna connector.
- Measure the resistance of the wire harness side connectors.
Standard resistance
Tester Connection Specified Condition s2-2 (SGT) - s1-6 (SGT2) Below 1 Ω s2-3 (ANT1) - s1-5 (ANT1) Below 1 Ω s2-8 (ANT2) - s1-2 (ANT2) Below 1 Ω s2-9 (TRG-) - s1-1 (TRG-) Below 1 Ω s2-2 (SGT) or s1-6 (SGT2) - Body ground 10 kΩ or higher s2-3 (ANT1) or s1-5 (ANT1) - Body ground 10 kΩ or higher s2-8 (ANT2) or s1-2 (ANT2) - Body ground 10 kΩ or higher s2-9 (TRG-) or s1-1 (TRG-) - Body ground 10 kΩ or higher
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step

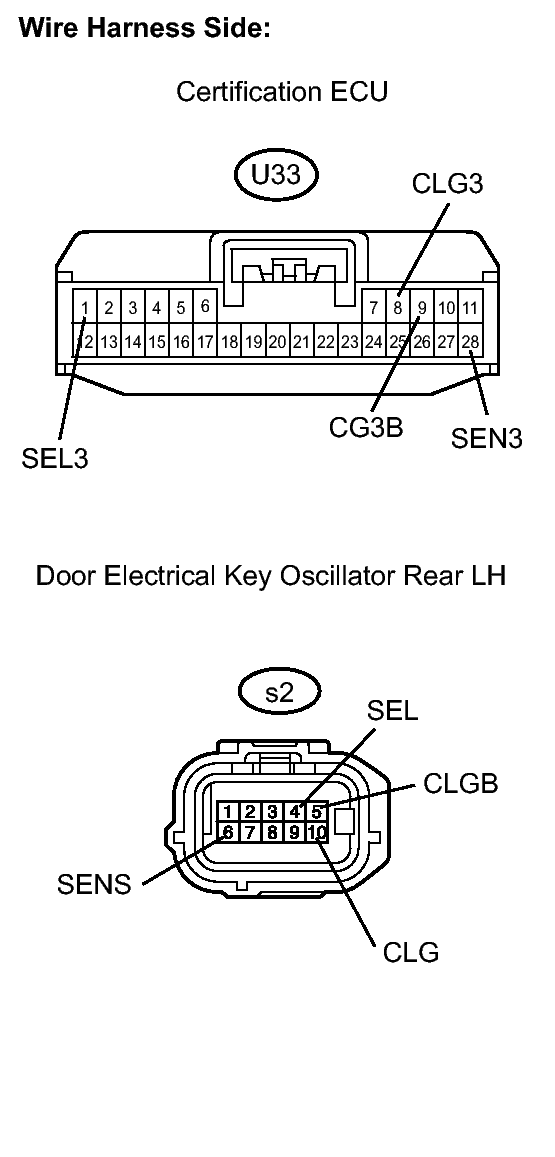

- CHECK WIRE HARNESS (ECU - OSCILLATOR)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Disconnect the U33 ECU connector.
- Disconnect the s2 oscillator connector.
- Measure the resistance of the wire harness side connectors.
Standard resistance
Tester Connection Specified Condition U33-1 (SEL3) - s2-4 (SEL) Below 1 Ω U33-28 (SEN3) - s2-6 (SENS) Below 1 Ω U33-8 (CLG3) - s2-10 (CLG) Below 1 Ω U33-9 (CG3B) - s2-5 (CLGB) Below 1 Ω U33-1 (SEL3) or s2-4 (SEL) - Body ground 10 kΩ or higher U33-28 (SEN3) or s2-6 (SENS) - Body ground 10 kΩ or higher U33-8 (CLG3) or s2-10 (CLG) - Body ground 10 kΩ or higher U33-9 (CG3B) or s2-5 (CLGB) - Body ground 10 kΩ or higher
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK → REPLACE DOOR ELECTRICAL KEY OSCILLATOR REAR LH
