Front Passenger Side Door Entry Unlock Function does not Operate: Wiring Diagram

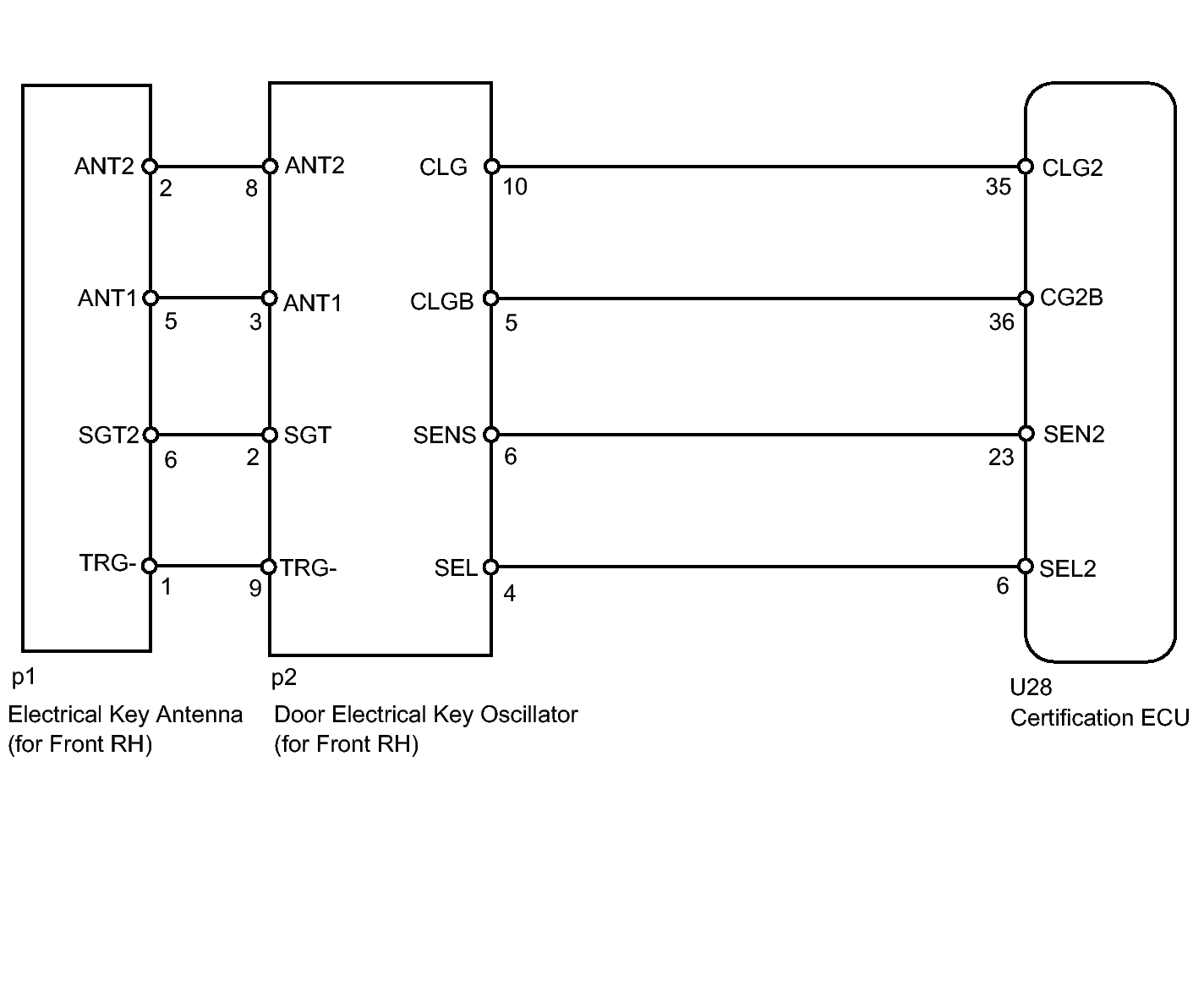

Fig 1: View Of Door Electrical Key Oscillator Wiring Diagram (Front RH)

GTY133700

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
