Driver Side Door Entry Unlock Function Does Not Operate: Wiring Diagram

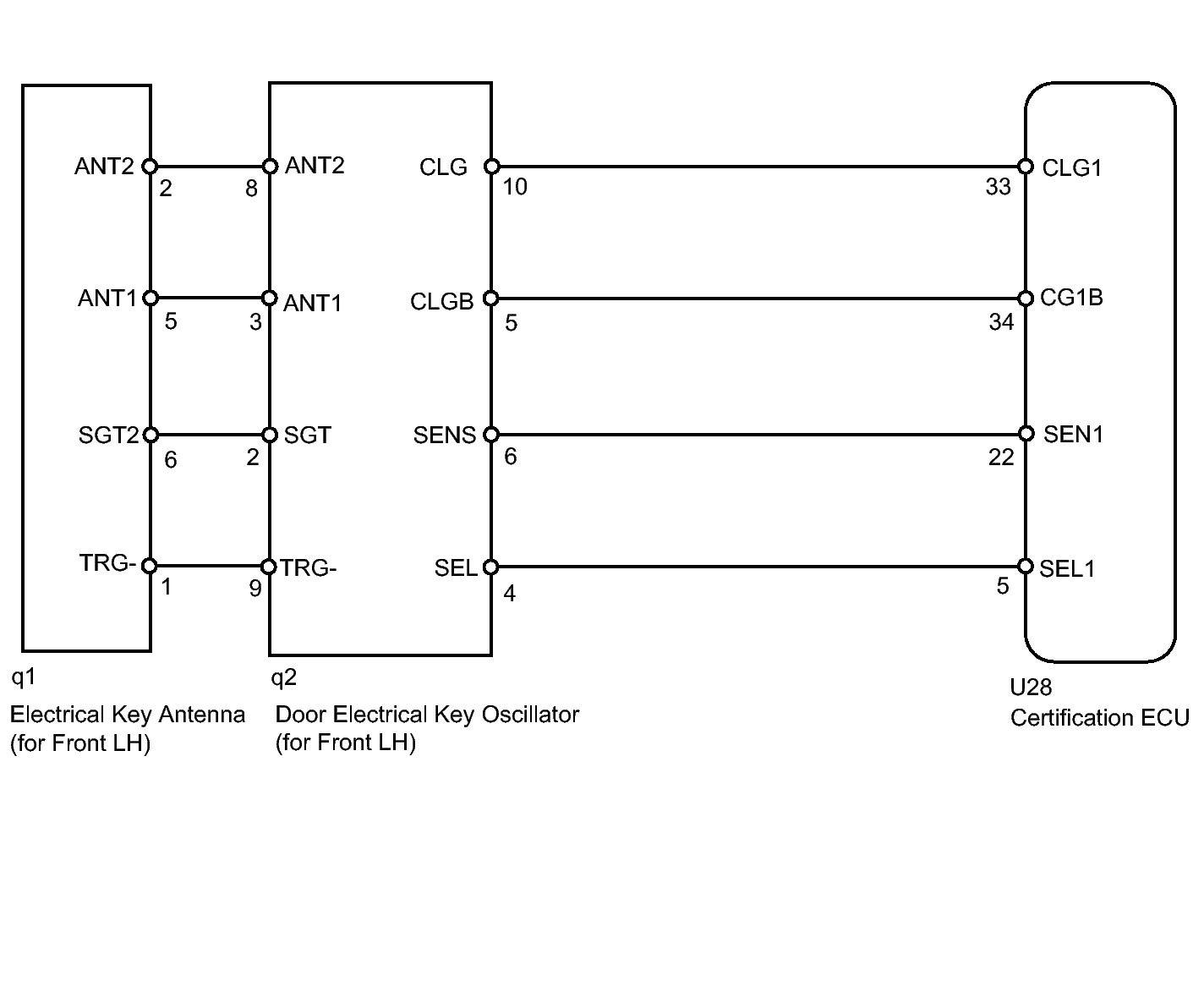

Fig 1: View Of Door Electrical Key Oscillator Wiring Diagram (Front LH)

GTY118145

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
