Display Signal Circuit between Multi-display and Television Camera Assembly: Procedure

1. Disconnect the K47 display connector.

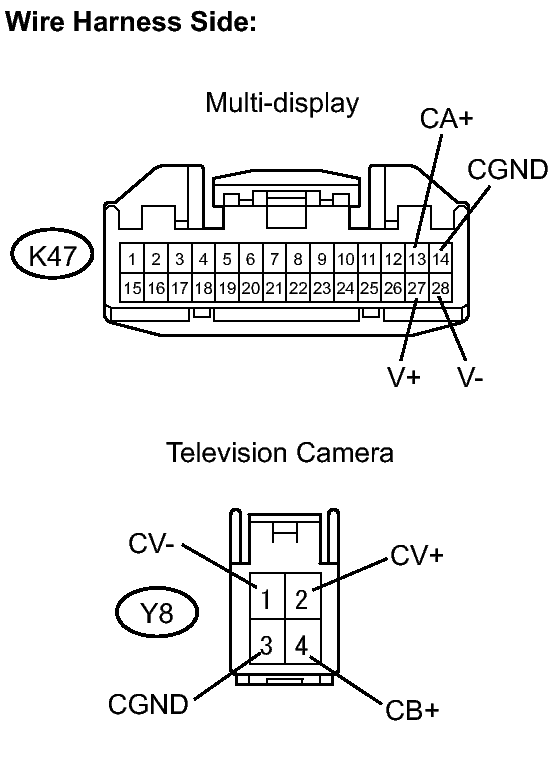

   Fig 1: Identifying K47 and Y8 Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the Y8 camera connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   Tester Connection	Specified Condition
   K47-13 (CA+) - Y8-4 (CB+)	Below 1 Ω
   K47-14 (CGND) - Y8-3 (CGND)	Below 1 Ω
   K47-27 (V+) - Y8-2 (CV+)	Below 1 Ω
   K47-28 (V-) - Y8-1 (CV-)	Below 1 Ω
   K47-13 (CA+) - Body ground	10 kΩ or higher
   K47-14 (CGND) - Body ground	10 kΩ or higher
   K47-27 (V+) - Body ground	10 kΩ or higher
   K47-28 (V-) - Body ground	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Reconnect the K47 display connector.
2. Measure the voltage of the connector.
   Fig 2: Identifying K47 Display Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard voltage

   Tester Connection	Condition	Specified Condition
   Y8-4 (CB+) - Y8-3 (CGND)	Power switch ON (IG), shift lever in R position	Approx. 6 V

NG → REPLACE MULTI-DISPLAY

OK: Go to next step

1. Reconnect the Y8 camera connector.
2. Check the waveform of the camera using an oscilloscope.

   OK

   Waveform is as shown in the illustration.

   Fig 3: Identifying Y8 Camera Connector And Oscilloscope Waveform Graph

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Item	Content
   Measurement terminal	CV+ (Y8-2) - CV- (Y8-1)
   Measurement setting	0.2 V/DIV., 0.2 μ sec./DIV.
   Condition	Power switch ON (IG), shift lever in R position

NG → REPLACE TELEVISION CAMERA ASSEMBLY

OK → PROCEED TO NEXT INSPECTION PROCEDURE SHOWN IN PROBLEM SYMPTOMS TABLE
