Room Oscillator does not Recognize Key: Wiring Diagram

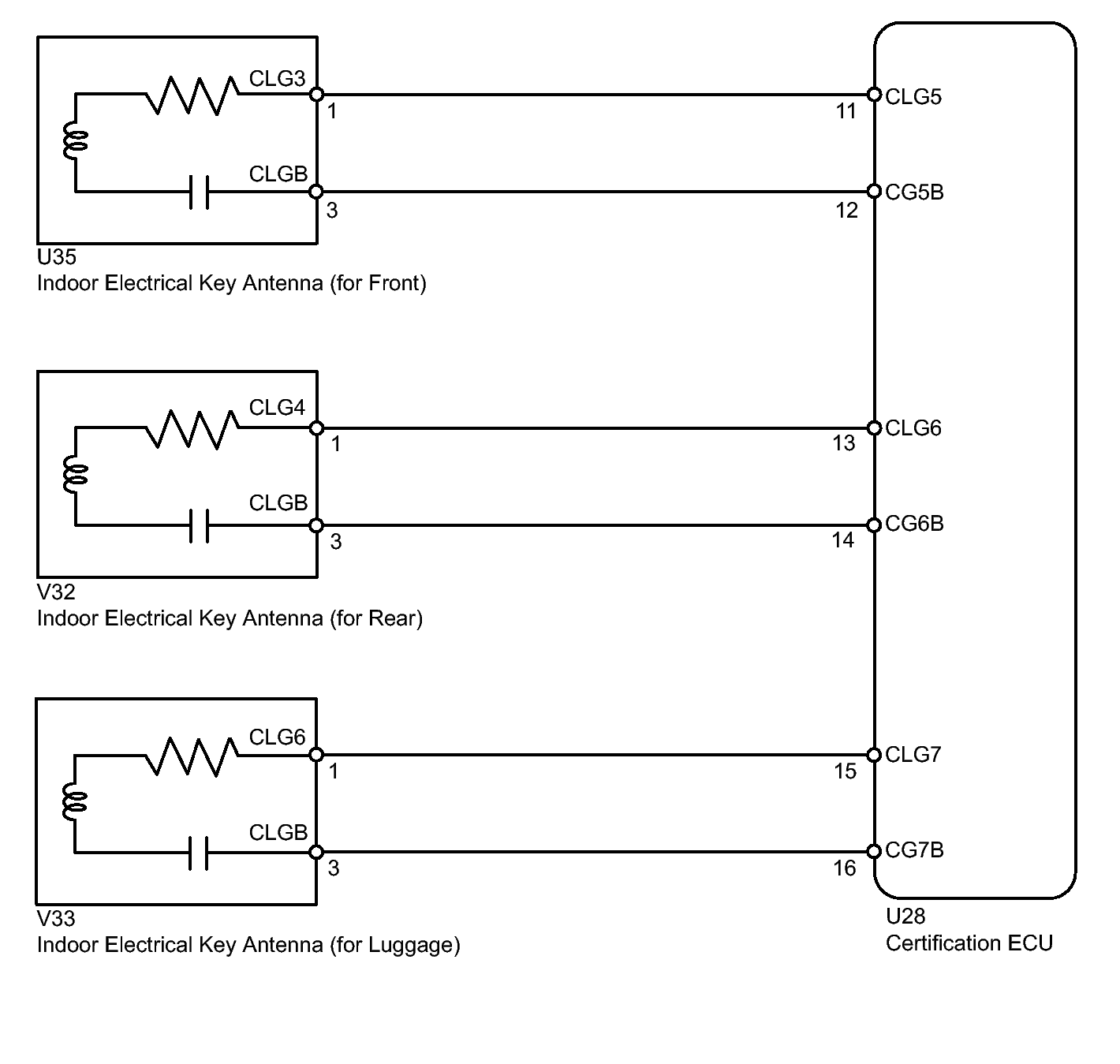

Fig 1: View Of Indoor Electrical Key Antenna Wiring Diagram

GTY118150

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
