Rear Door RH Entry Unlock Function does not Operate: Wiring Diagram

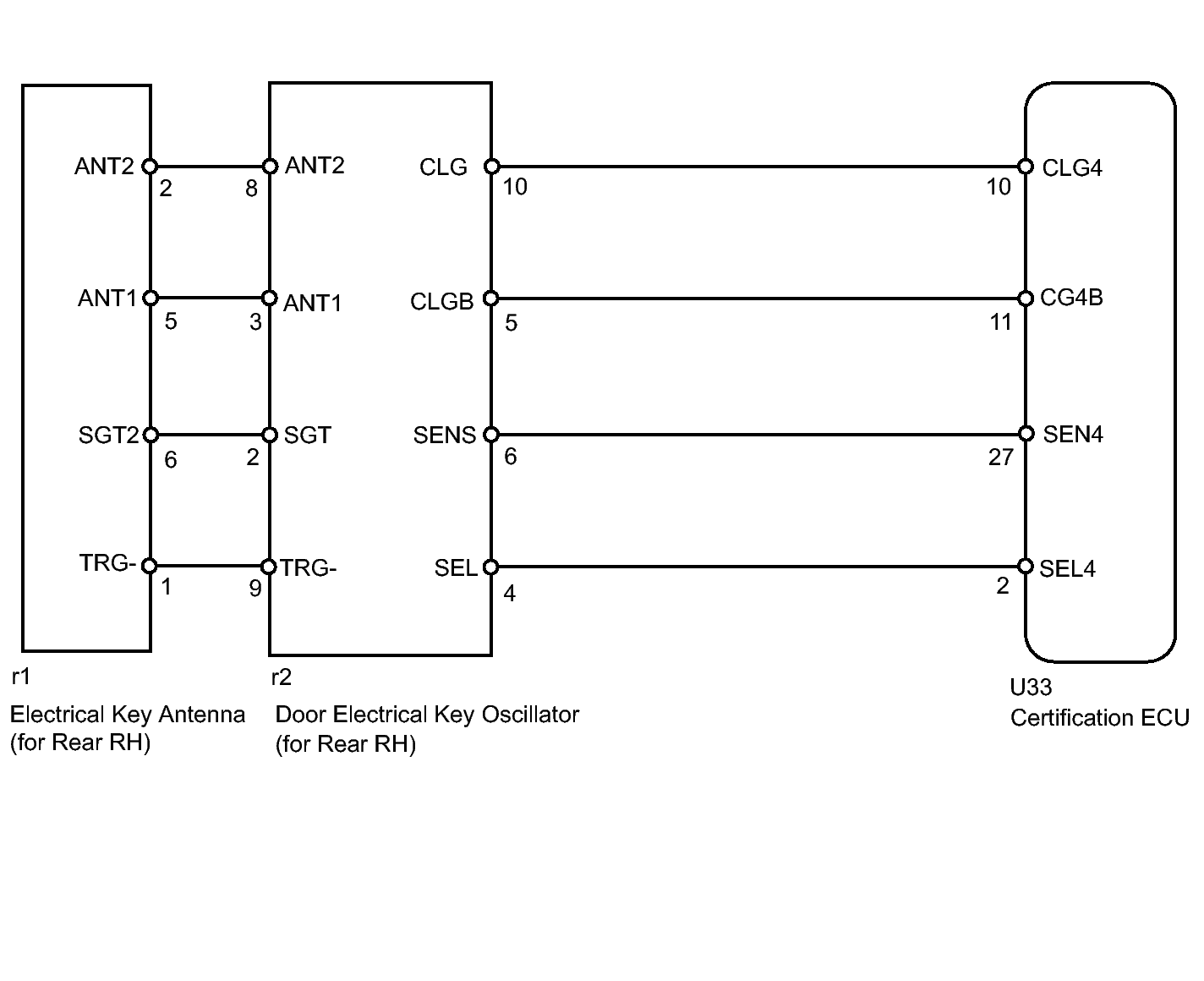

Fig 1: View Of Door Electrical Key Oscillator Wiring Diagram (Rear RH)

GTY118144

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
