Rear Door LH Entry Unlock Function does not Operate: Wiring Diagram

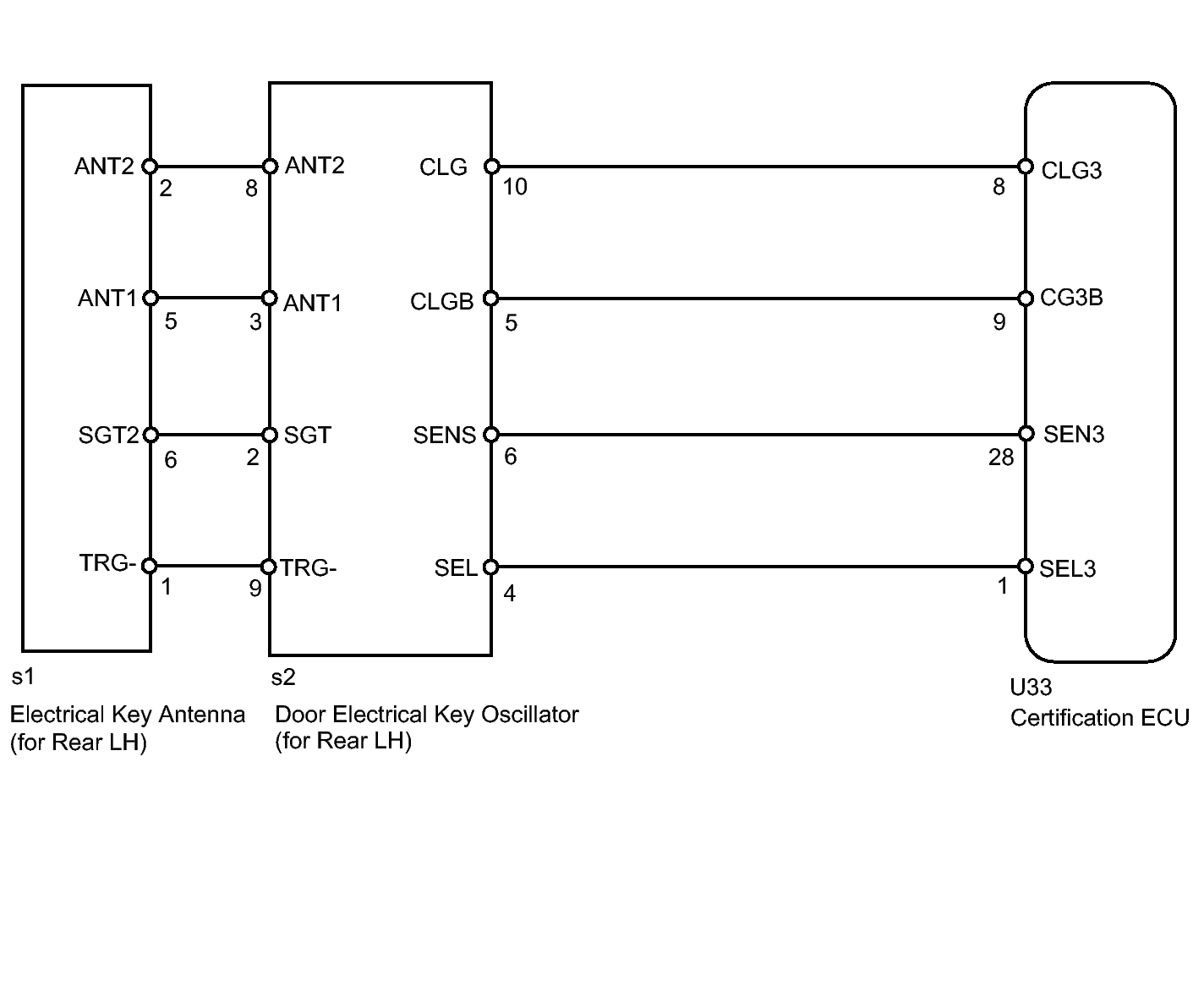

Fig 1: View Of Door Electrical Key Oscillator Wiring Diagram (Rear LH)

GTY118146

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
