Engine Switch: Installation: Installation

WARNING: This page is about a different car, the 2009 Lexus GS 460. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL ENGINE SWITCH
    1. Attach the 2 claws to install the switch.

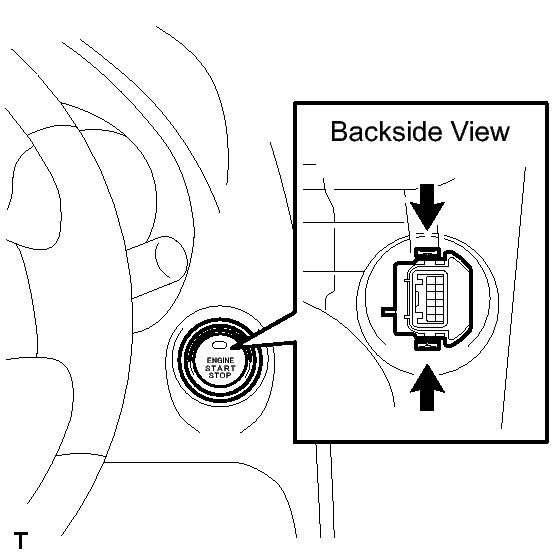

      Fig 1: Identifying Engine Start/Stop Switch
      GTY102282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the switch connector.
  2. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY  . Refer to INSTALLATION - Step 1
  3. INSTALL INSTRUMENT PANEL NO. 1 SAFETY PAD SUB-ASSEMBLY  . Refer to INSTALLATION - Step 10
  4. INSTALL INSTRUMENT PANEL NO. 1 UNDER COVER SUB-ASSEMBLY  . Refer to INSTALLATION - Step 11
  5. INSTALL INSTRUMENT SIDE PANEL LH  . Refer to INSTALLATION - Step 12
  6. INSTALL FRONT DOOR OPENING TRIM COVER LH  . Refer to INSTALLATION - Step 27
  7. INSTALL FRONT DOOR SCUFF PLATE LH  . Refer to INSTALLATION - Step 29
  8. INSTALL INSTRUMENT PANEL FINISH PANEL END LH  . Refer to INSTALLATION - Step 19
  9. INSTALL CONSOLE UPPER PANEL ASSEMBLY  . Refer to INSTALLATION - Step 21
  10. INSTALL FRONT CONSOLE UPPER PANEL GARNISH  . Refer to INSTALLATION - Step 22
  11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  12. PERFORM INITIALIZATION
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected Refer to INITIALIZATION .

  13. CHECK SRS WARNING LIGHT

    Refer to DIAGNOSIS SYSTEM
