Ignition Coil: Components: Illustration

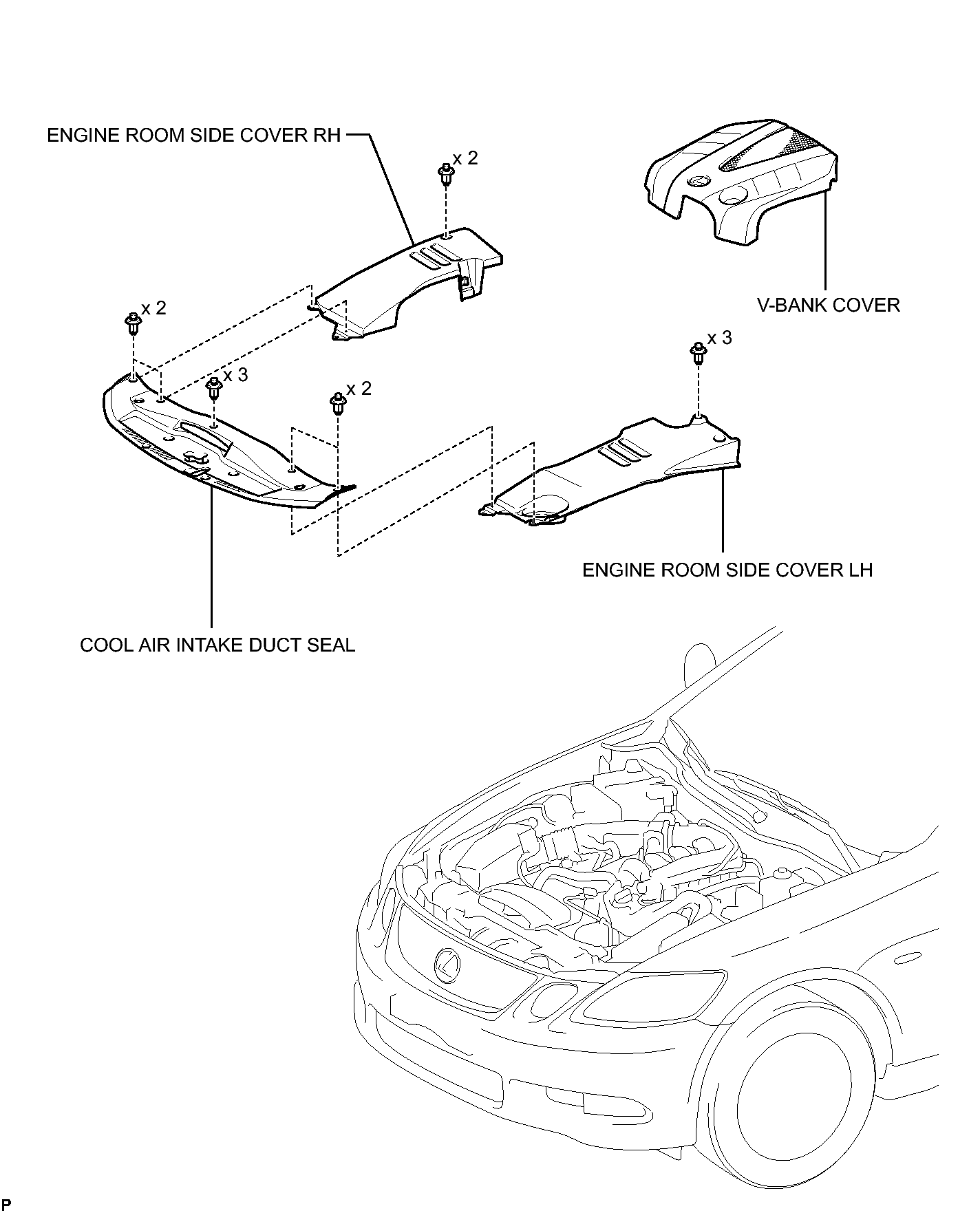

Fig 1: Identifying Ignition Coil Replacement Components (1 Of 2)
GTY105089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

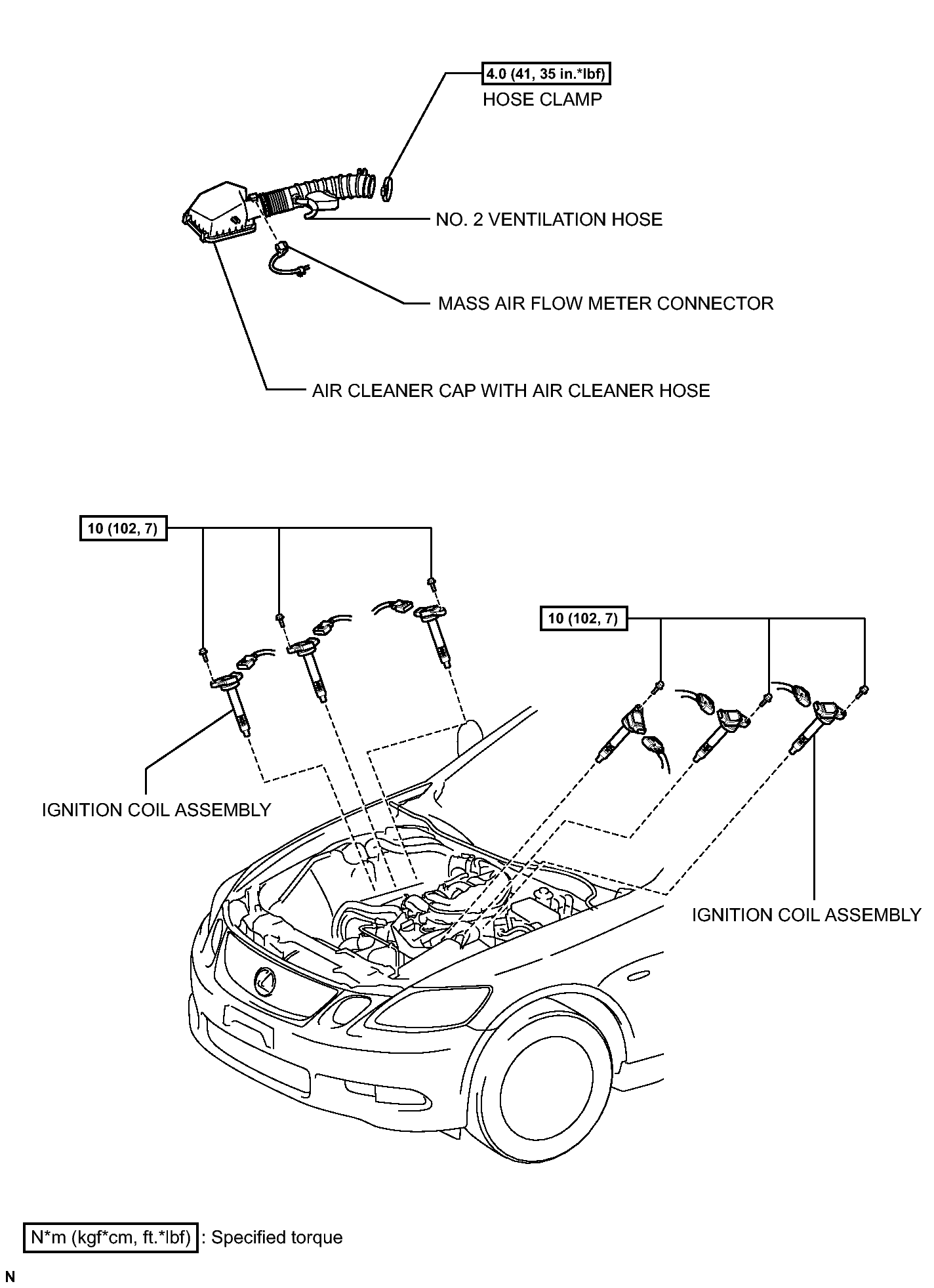

Fig 1: Identifying Ignition Coil Replacement Components With Torque Specification (2 Of 2)
GTY101394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
