Fuel Tank: Components: Illustration

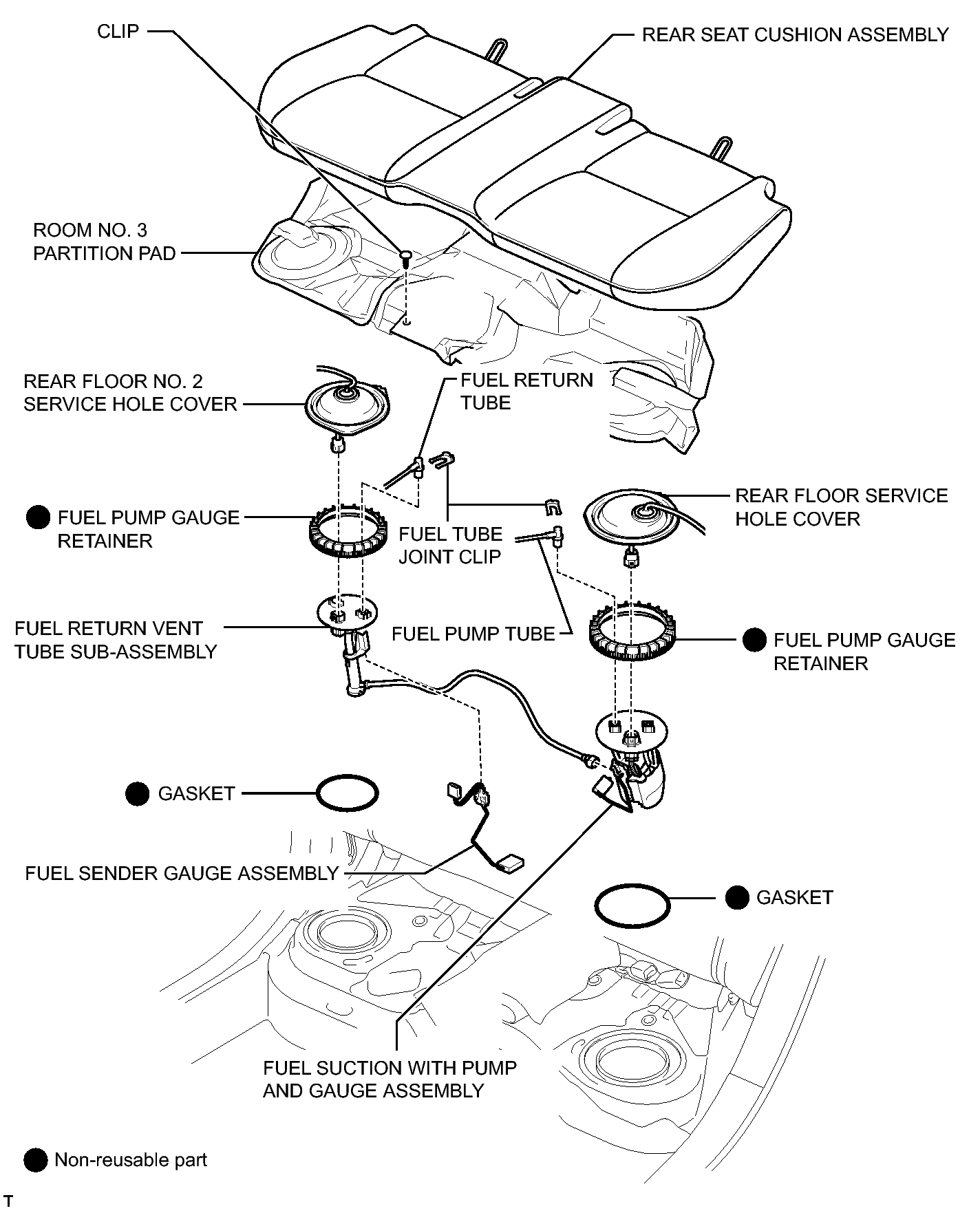

Fig 1: Identifying Fuel Tank Replacement Components (1 Of 4)
GTY100413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

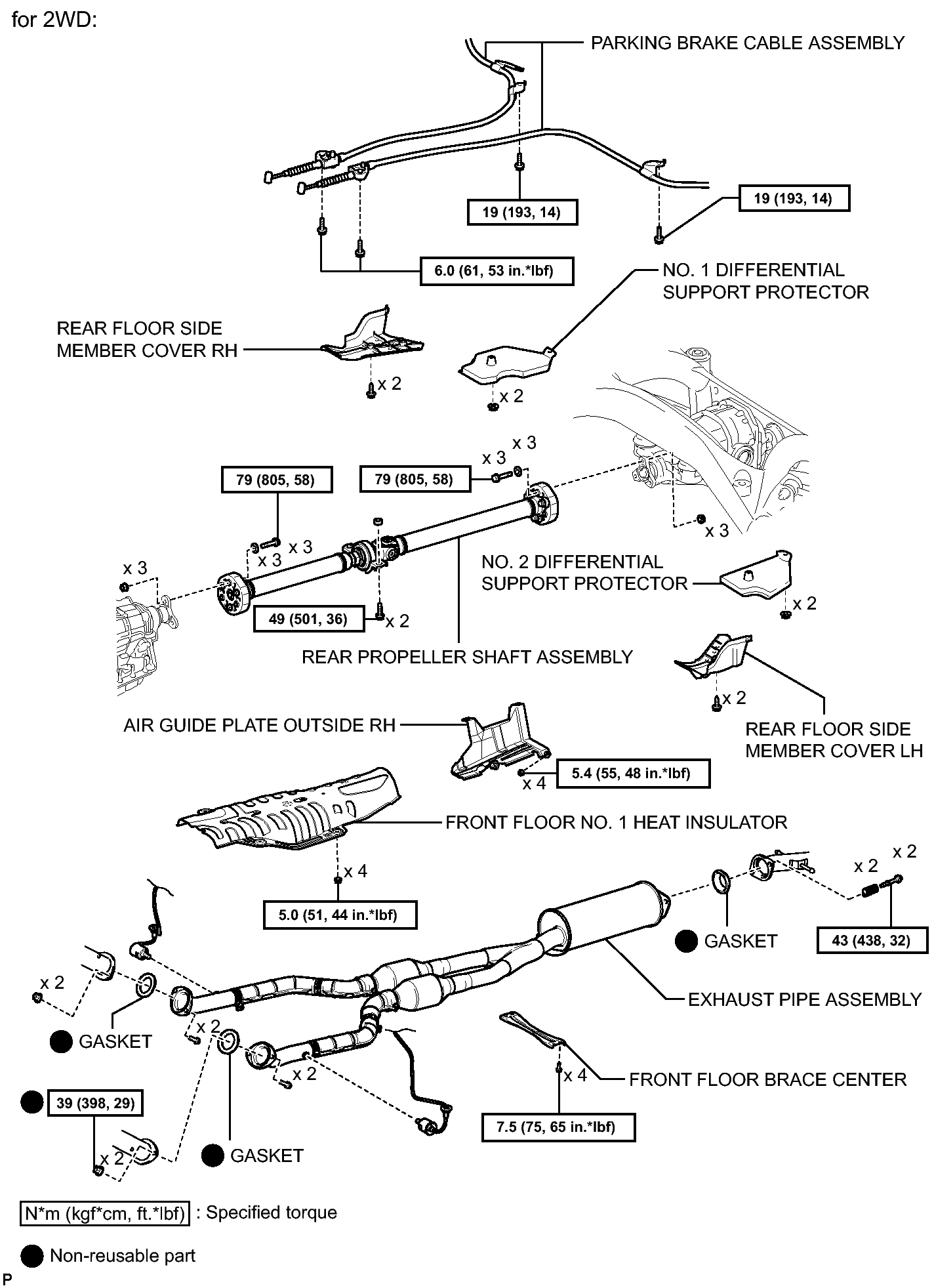

Fig 1: Identifying Fuel Tank Replacement Components With Torque Specifications (2 Of 4)
GTY103040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

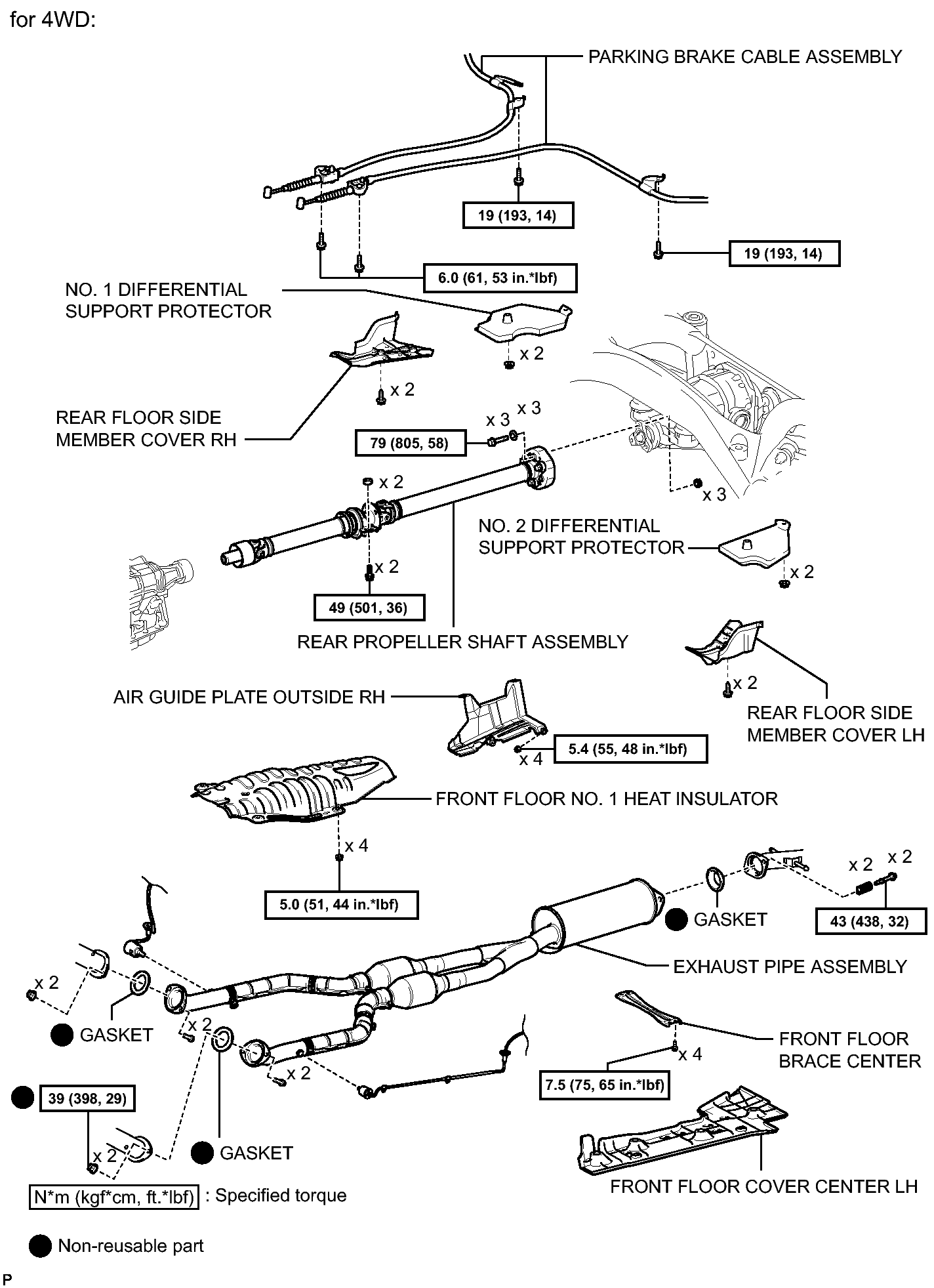

Fig 1: Identifying Fuel Tank Replacement Components With Torque Specifications (3 Of 4)
GTY103711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

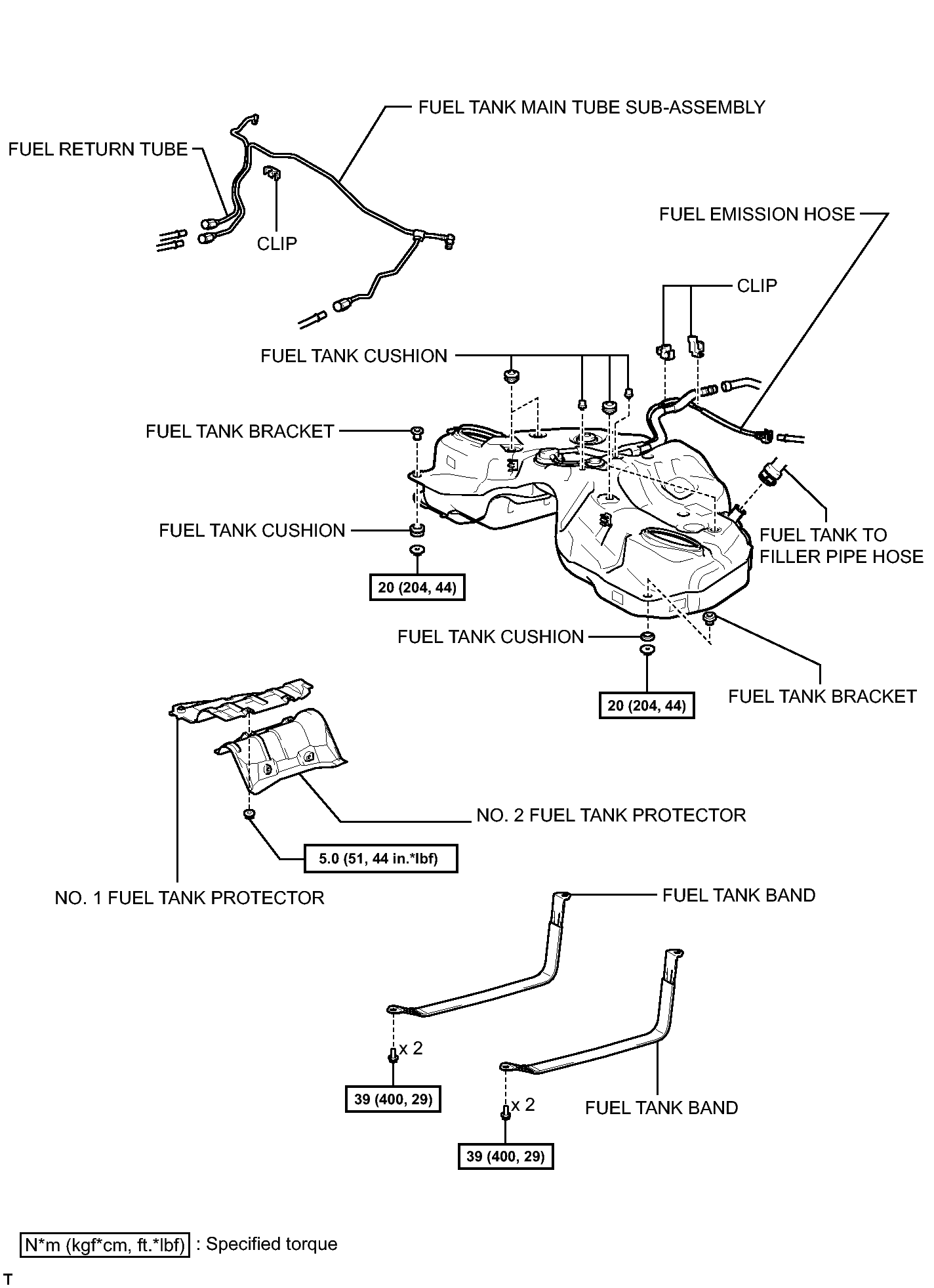

Fig 1: Identifying Fuel Tank Replacement Components With Torque Specifications (4 Of 4)
GTY105383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
