Engine Switch: Components: Illustration

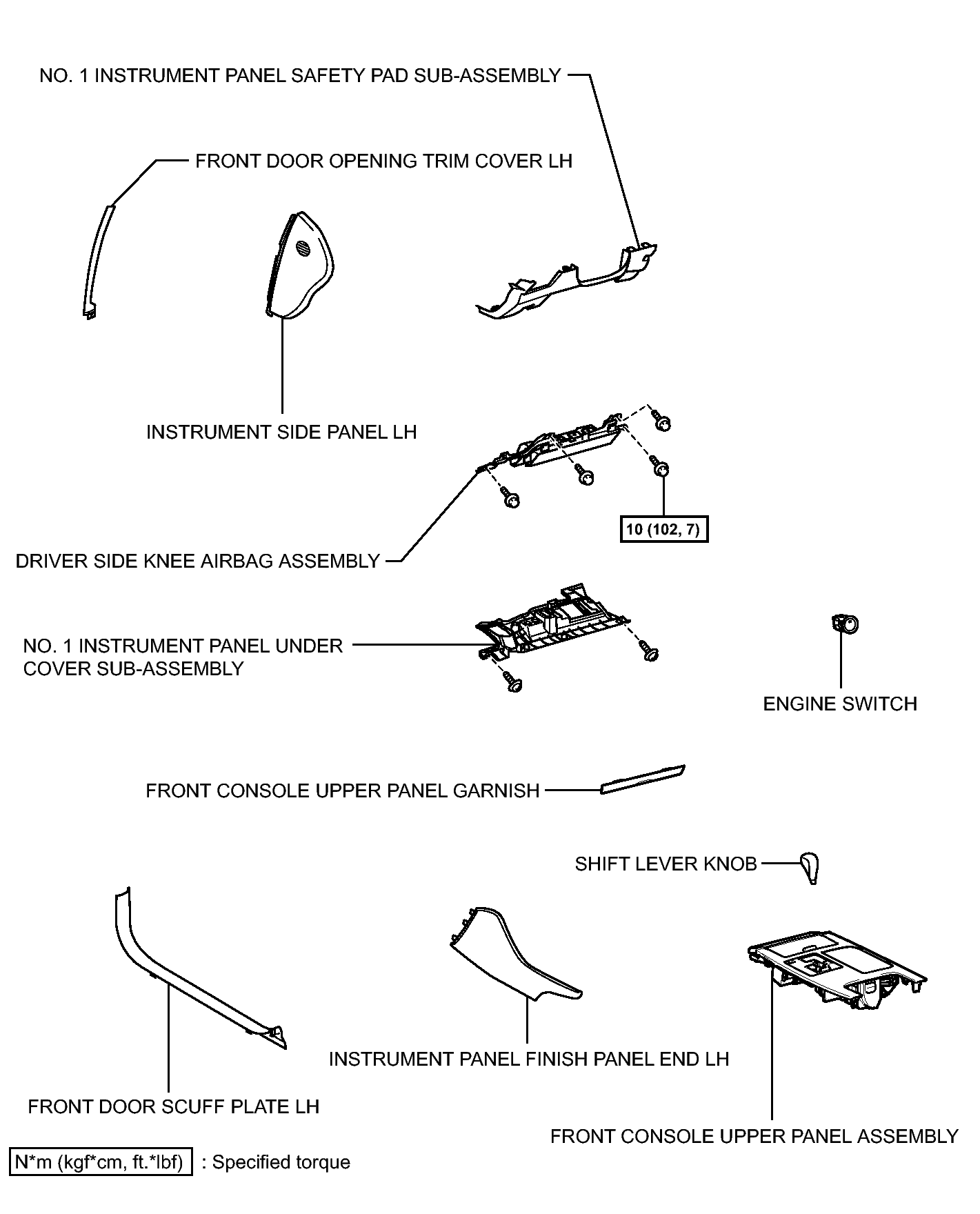

Fig 1: Engine Switch Replacement Components With Torque Specifications

GTY102397

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
