Ignition (1UR-FSE): Notes

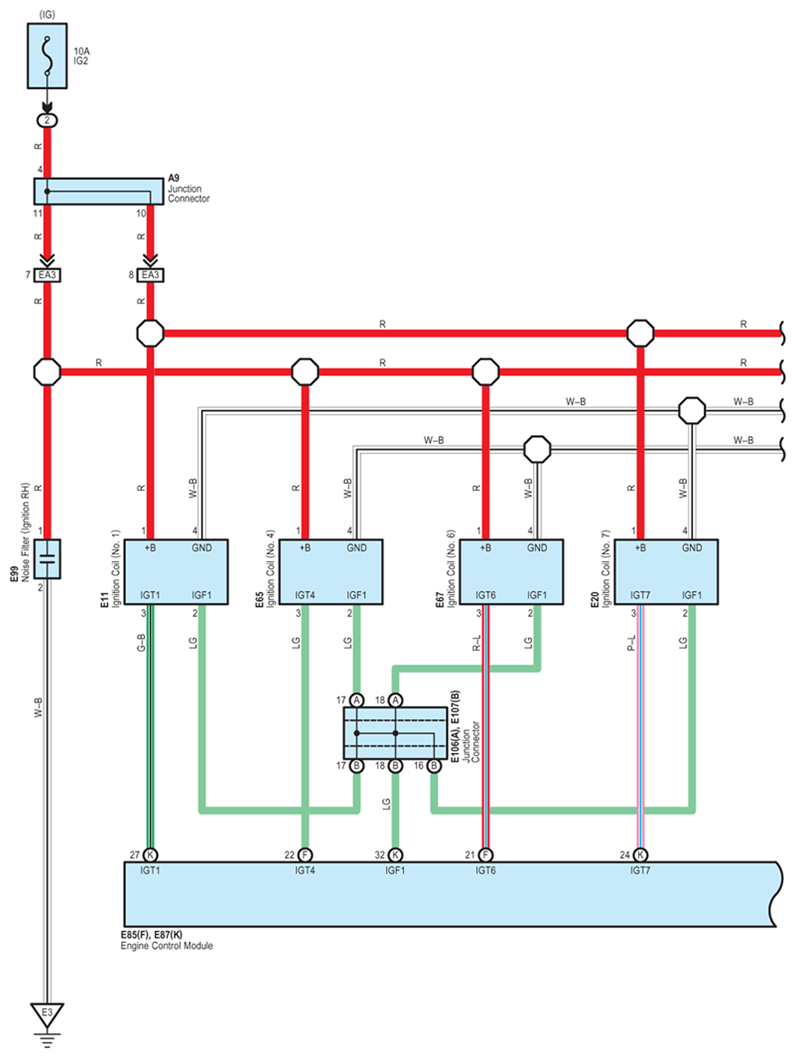

Fig 1: Ignition (1UR-FSE) - Circuit Diagram (1 Of 2)
G07595381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

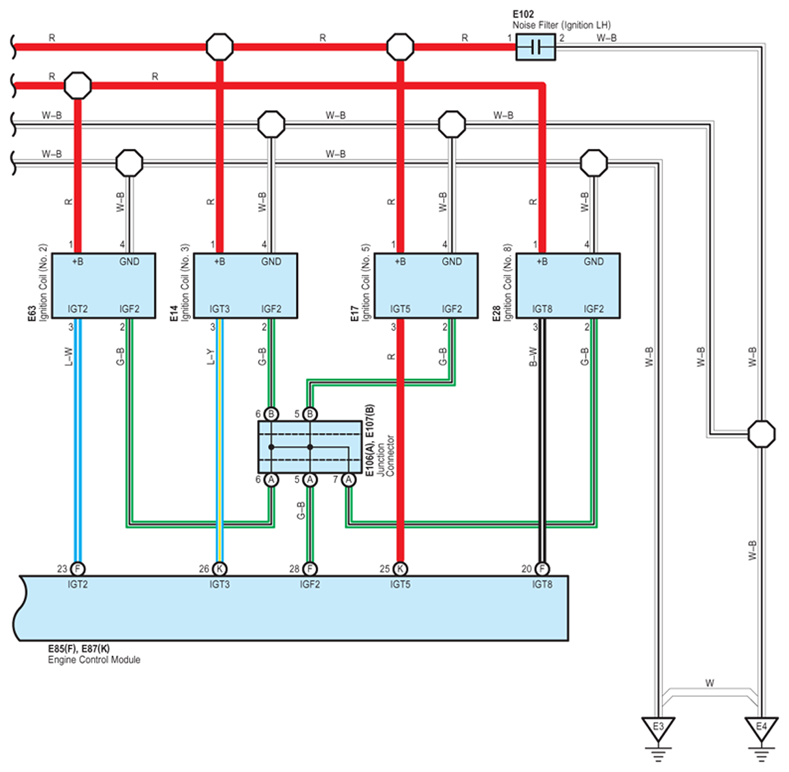

Fig 2: Ignition (1UR-FSE) - Circuit Diagram (2 Of 2)
G07595382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
