Windshield Glass: Components: Illustration

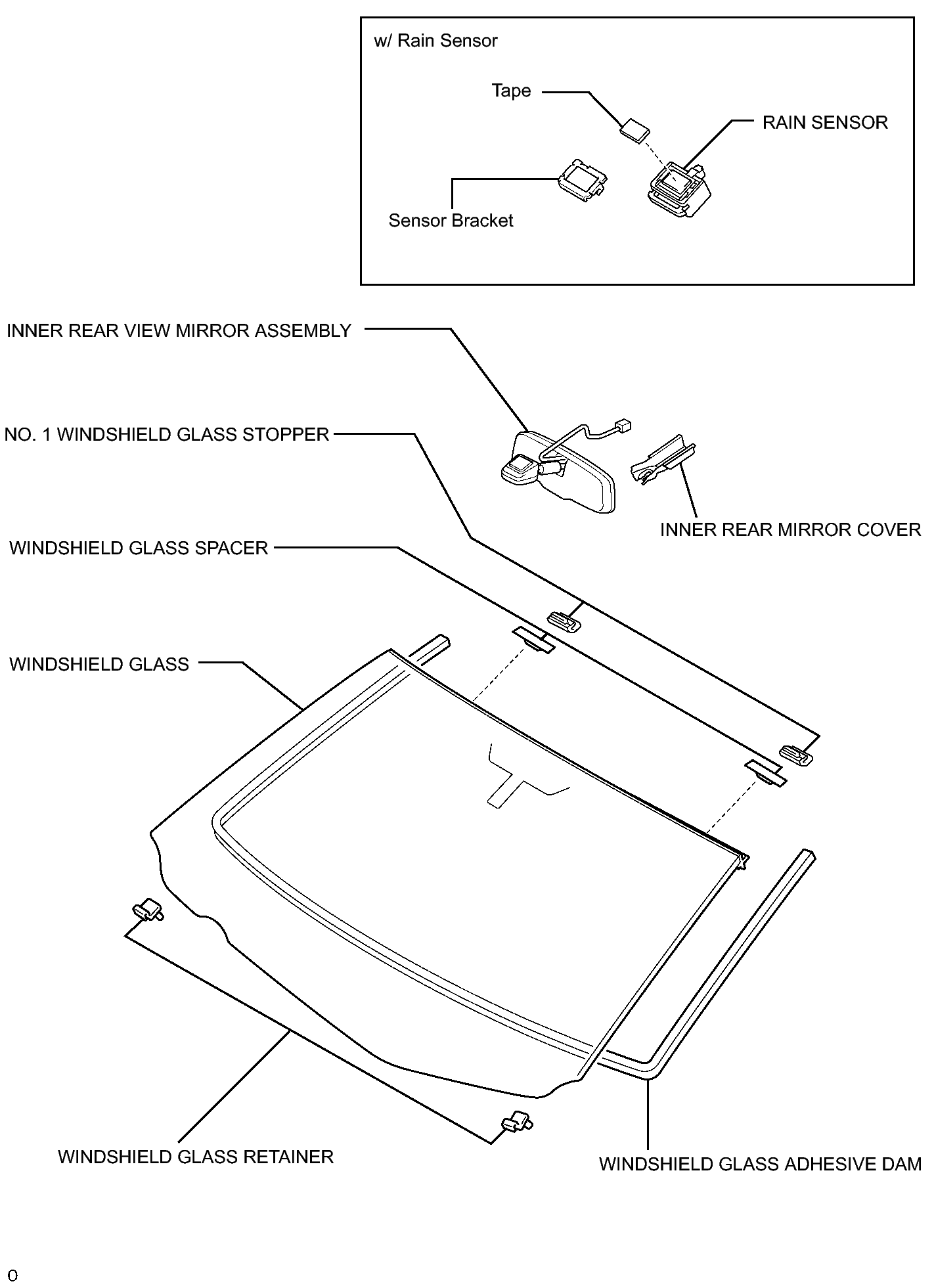

Fig 1: Identifying Windshield Glass Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

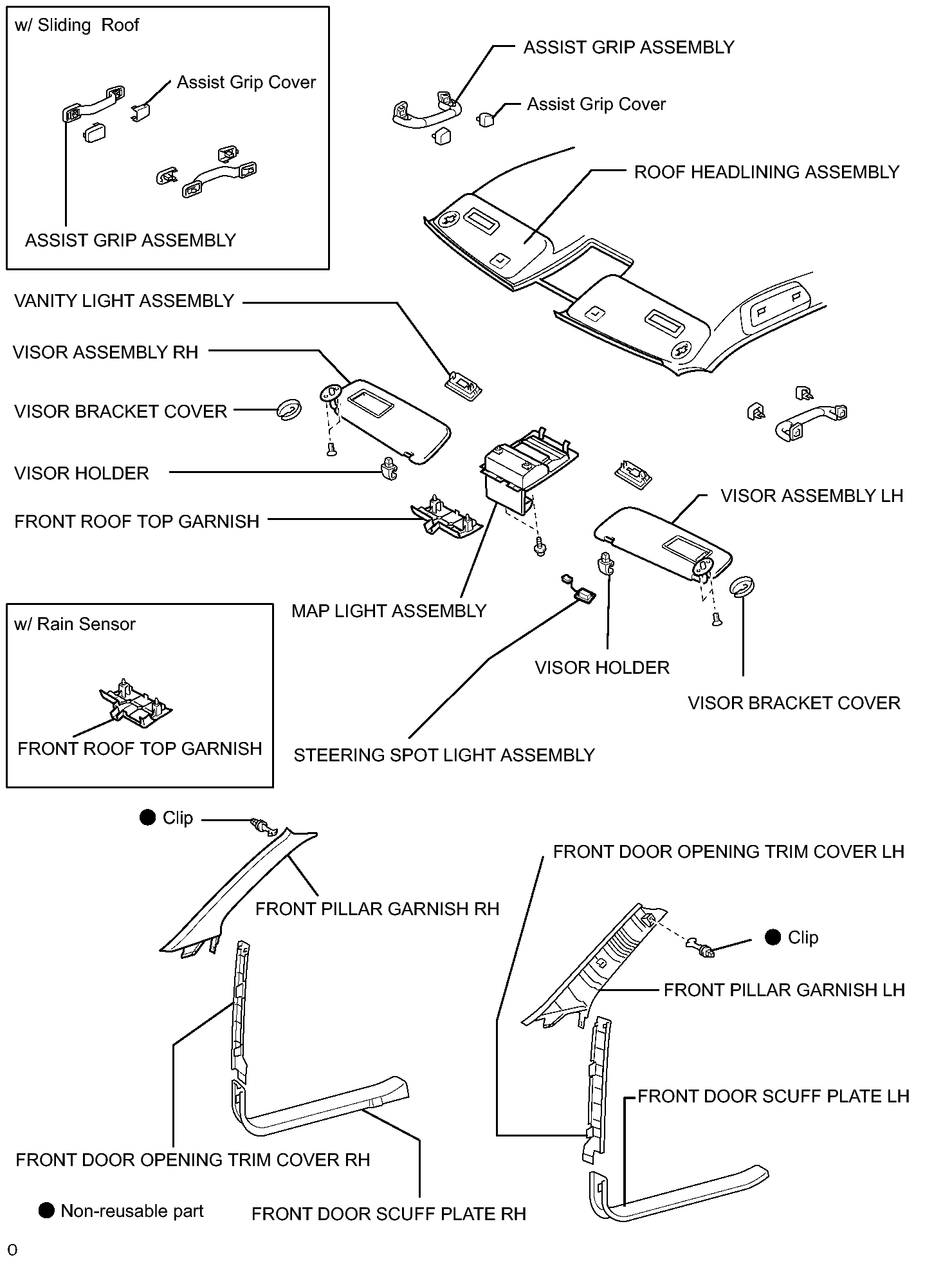

Fig 1: Identifying Windshield Glass Replacement Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

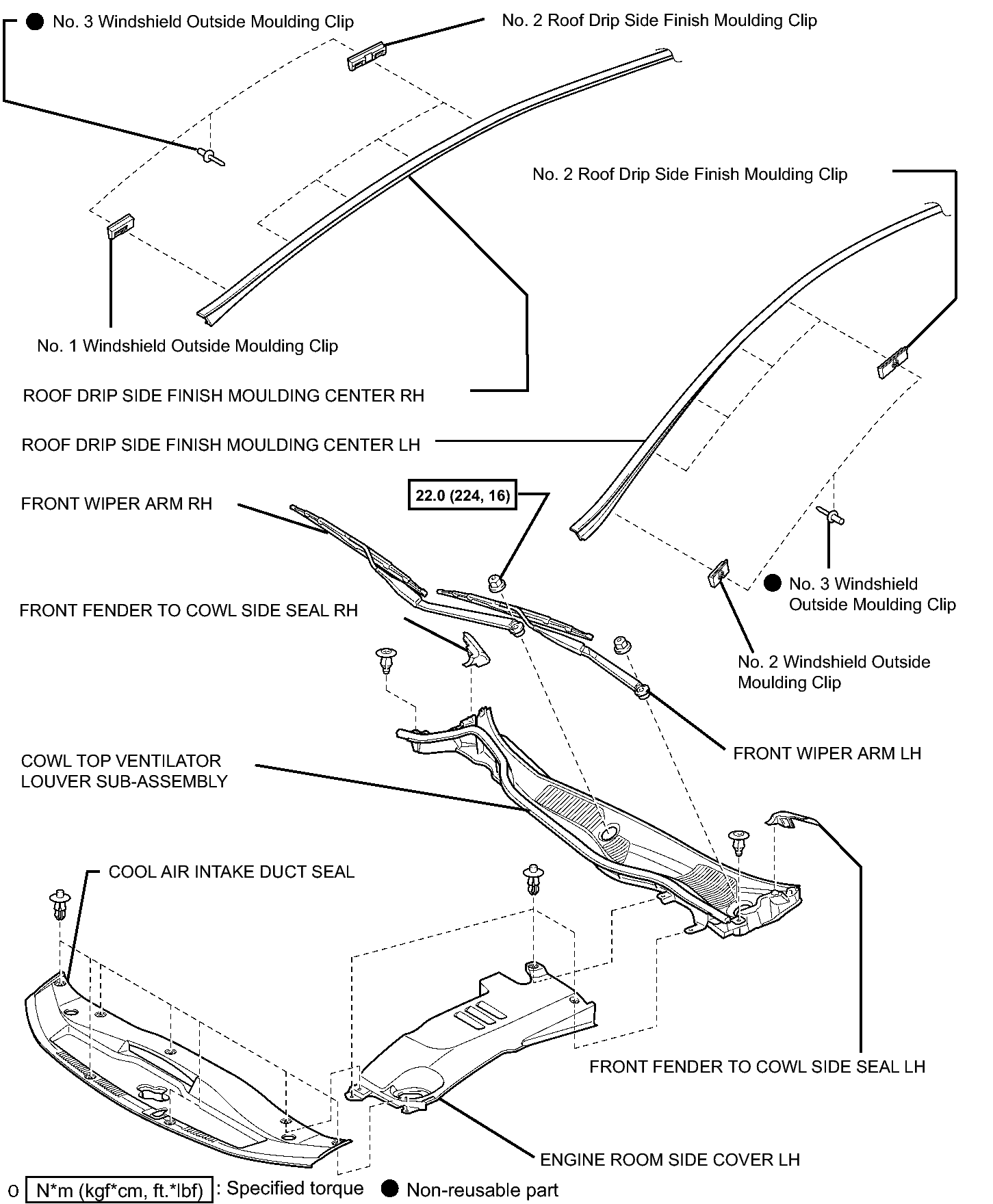

Fig 1: Identifying Windshield Glass Replacement Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
