Remote Up / Down Function Does Not Operate: Wiring Diagram

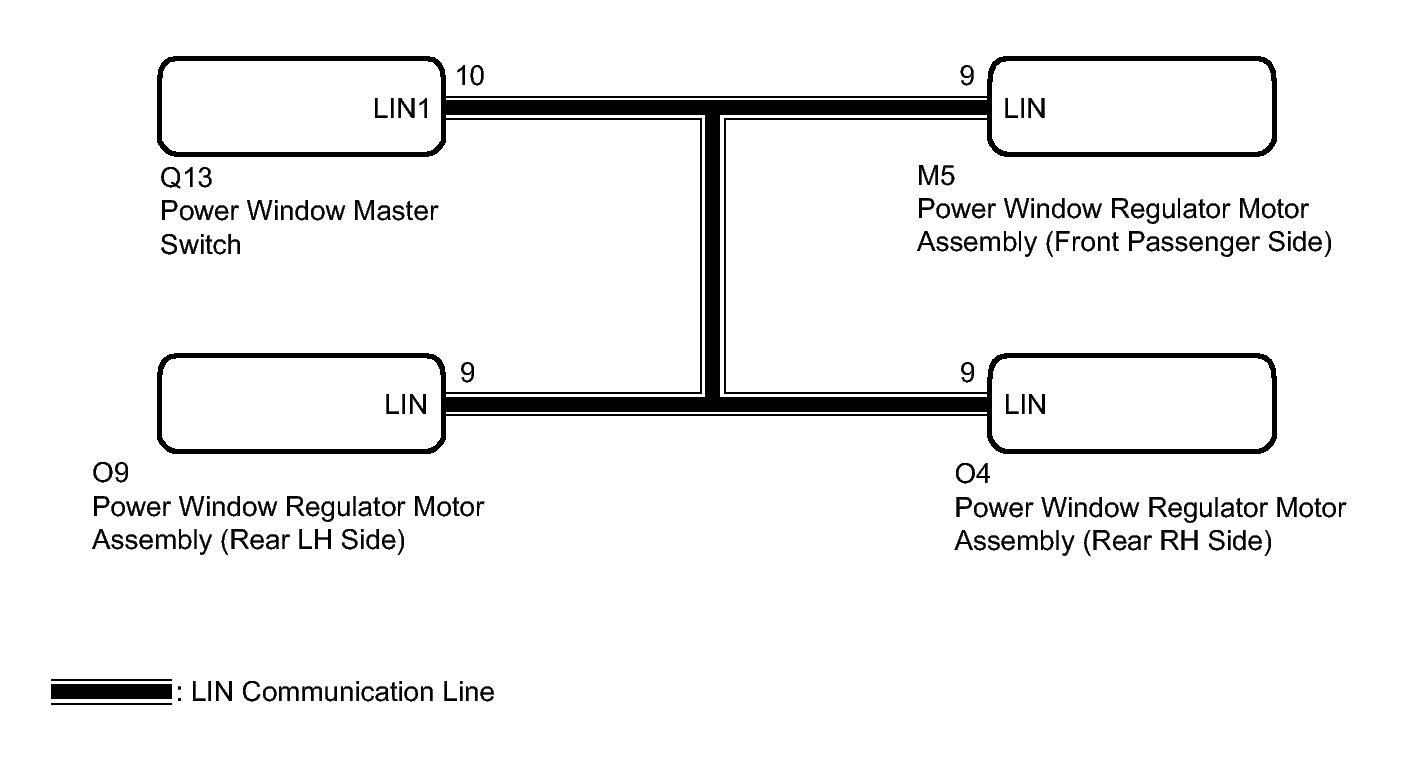

Fig 1: Power Window Master Switch - Wiring Diagram

GTY101128

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
