Rear Door RH Entry Unlock Function Does Not Operate: Wiring Diagram

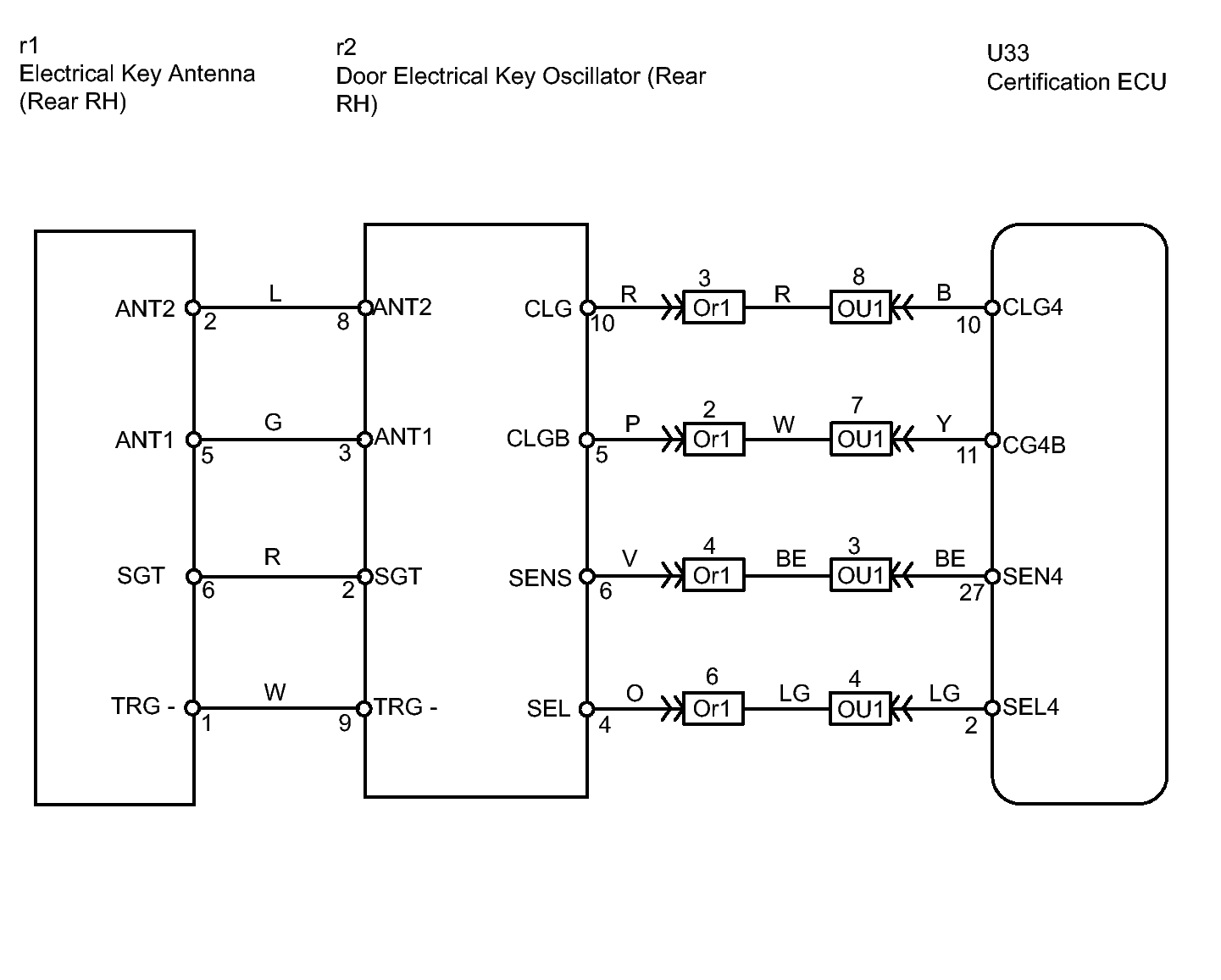

Fig 1: Certification ECU & Door Electrical Key Oscillator (Rear RH) - Wiring Diagram

GTY101516

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
