Room Oscillator Does Not Recognize Key: Wiring Diagram

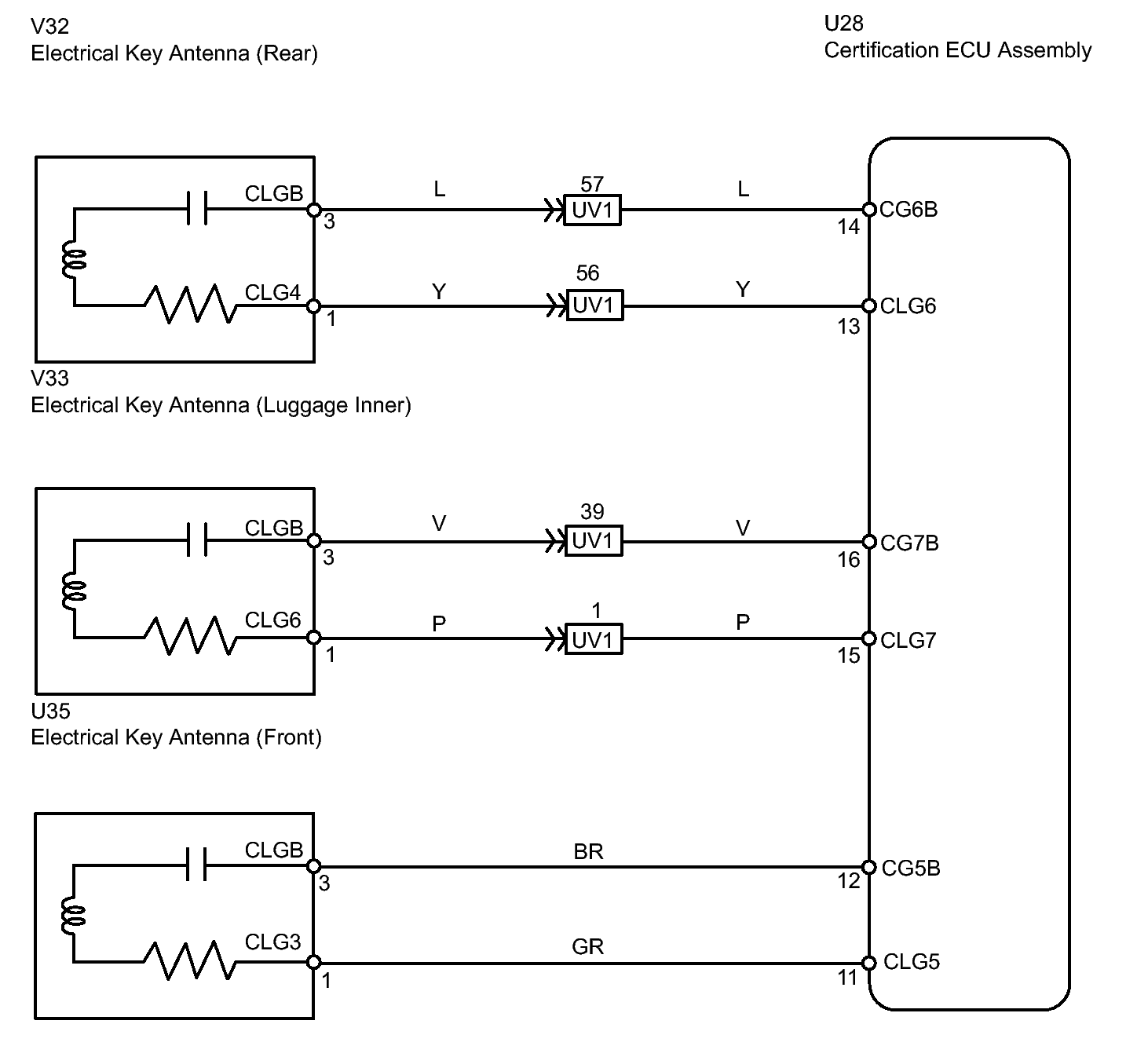

Fig 1: Room Oscillator Does Not Recognize Key -- Wiring Diagram

GTY100106

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
