Key Luggage Compartment Lock-In Prevention Function Does Not Operate: Wiring Diagram

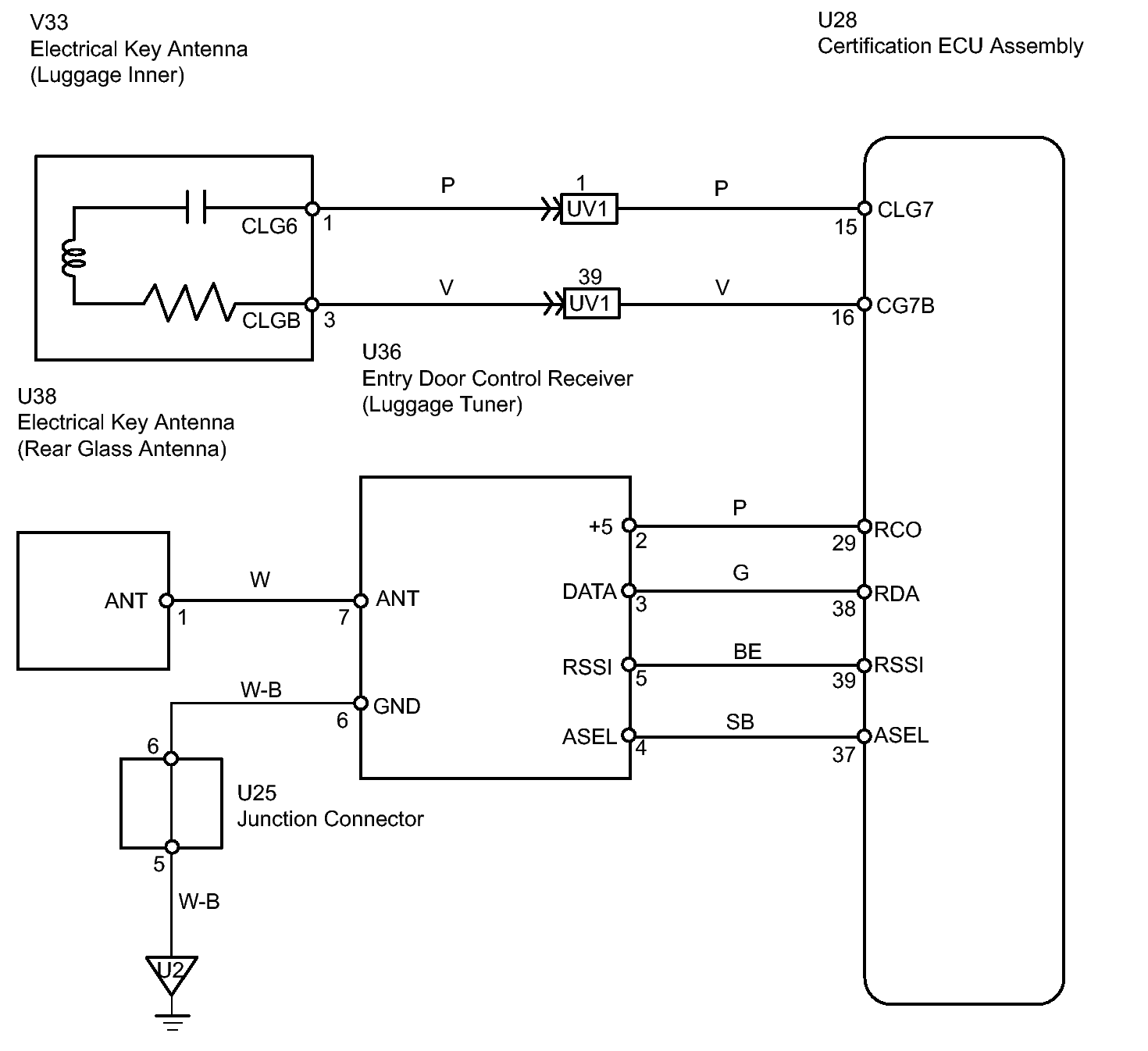

Fig 1: Certification ECU Assembly & Luggage Entry Door Control Receiver - Wiring Diagram
GTY103255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
