Key Lock-in Prevention Function does not Work Properly: Wiring Diagram

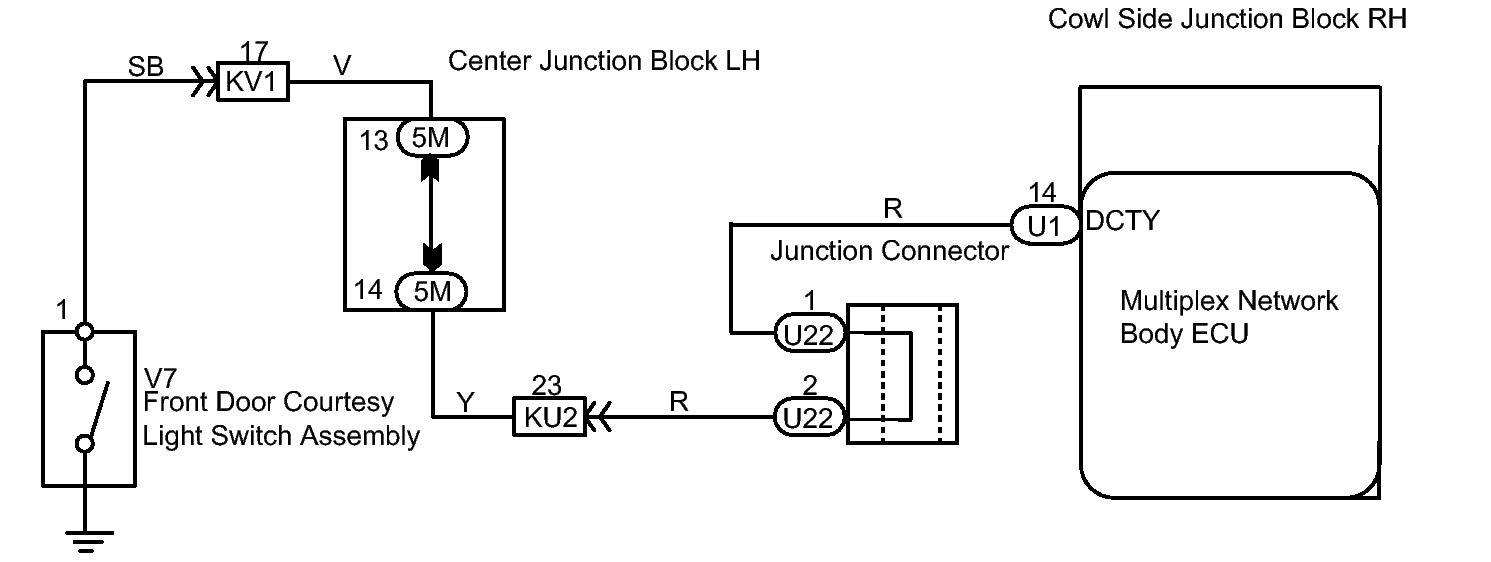

Fig 1: Key Lock-In Prevention Function Does Not Work Properly -- Wiring Diagram

GTY105879

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
